SWAFAN 240 UNIFY ARGB Sync PC Cooling Fan

SWAFAN 240 UNIFY ARGB Sync PC Cooling Fan

CL-F248-PL12SW-A

$59.99 USD
$59.99 USD
Vente Épuisé
SWAFAN 240 UNIFY is a single-frame fan designed for effortless installation. It features a Swappable Fan Blade Design that keeps the lighting fully visible in different airflow directions. The Dual Infinity Mirror Lighting on the fan hub and fan frame creates a layered effect with two rings for breathtaking visual effects. Taking the fan’s aesthetic to the next level, the Hidden Screw Design conceals the corner screws, providing a smooth surface that makes the lighting stand out.

Afficher tous les détails

Single-frame Fan for Simplified Installation

Engineered for a faster setup, the single-frame fan Design minimizes the number of cables and mounting points. With just a set of cables and four screws at the corners, the design makes assembly more straightforward while maintaining a neat appearance.

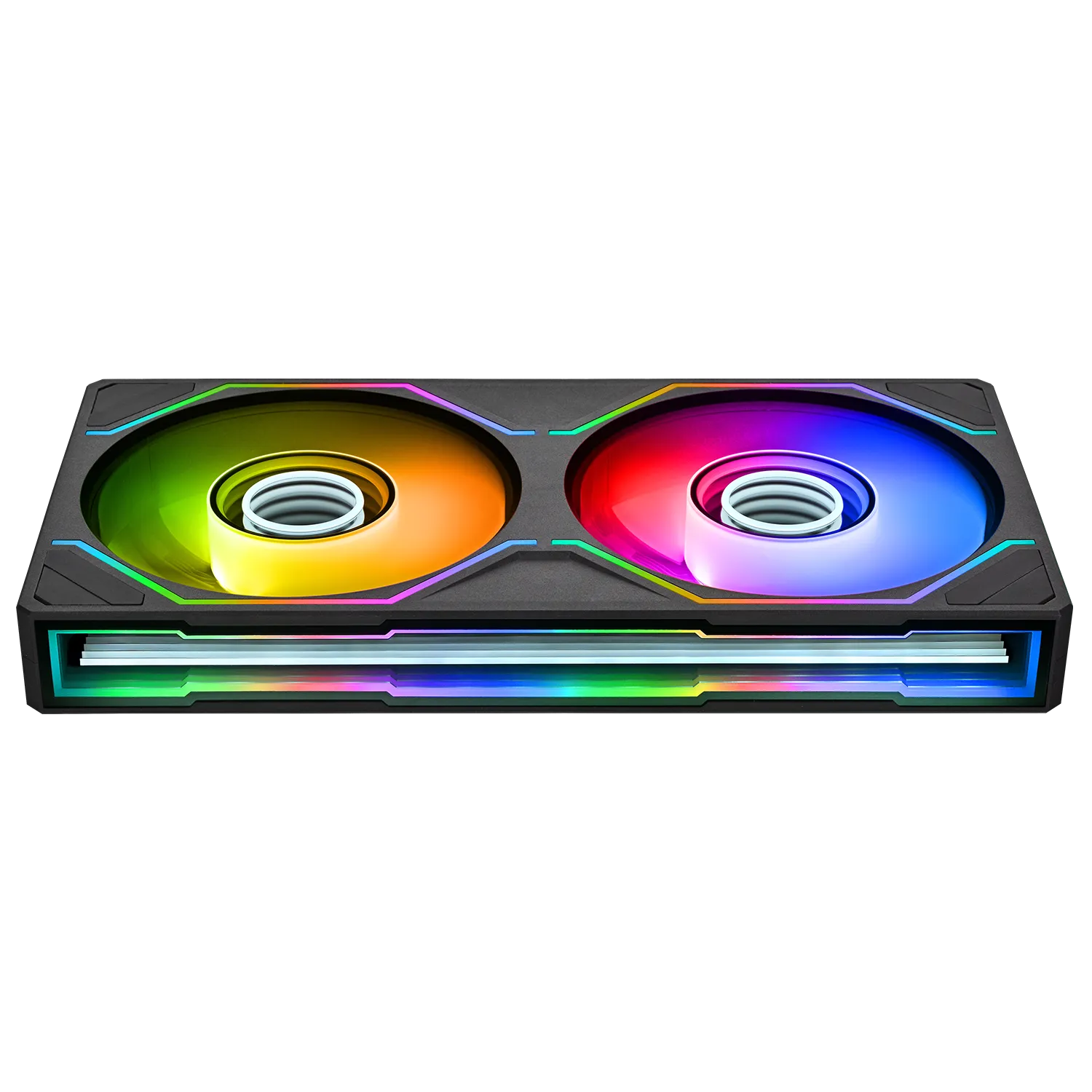

SWAFAN UNIFY Lighting Build

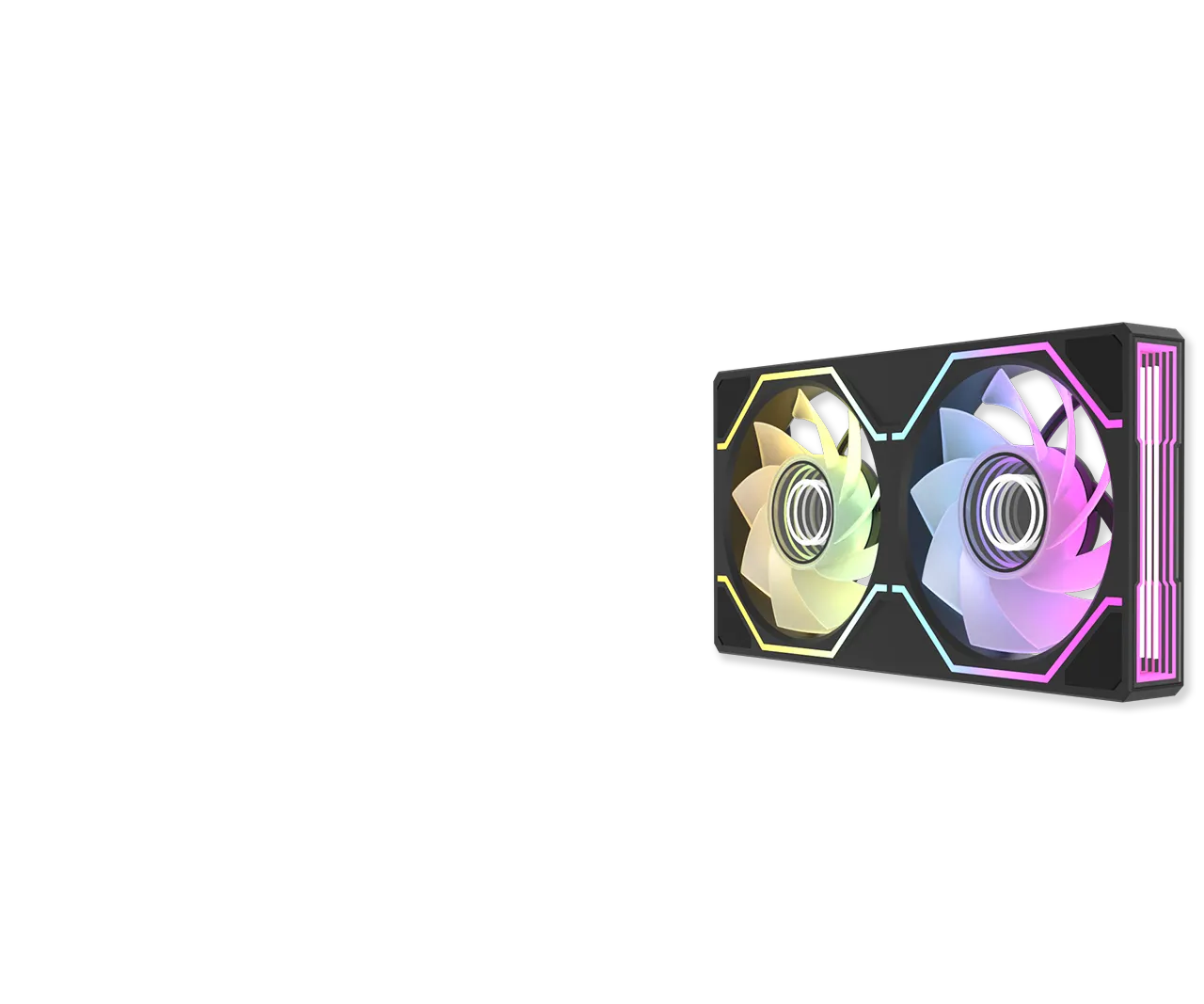

SWAFAN animation frame

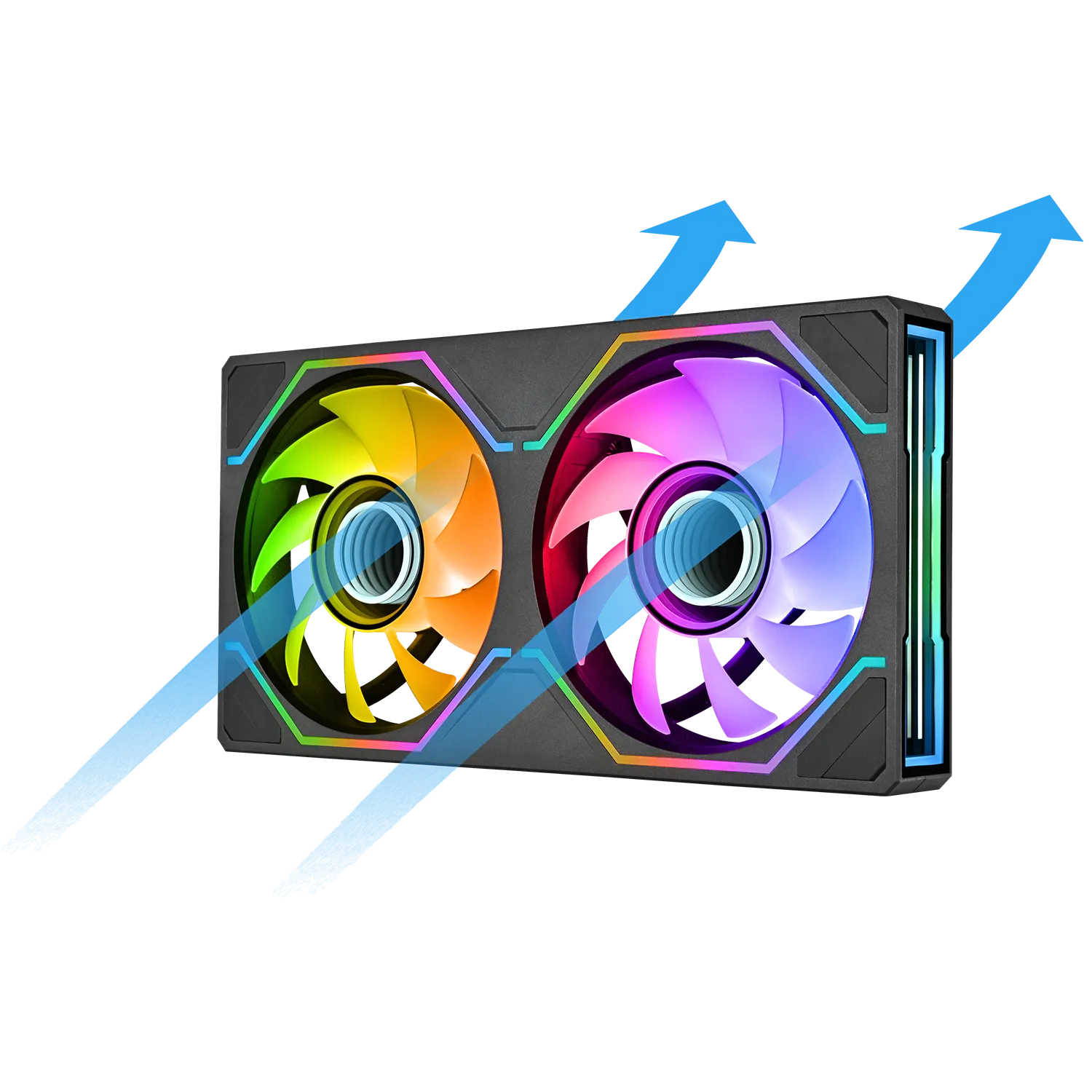

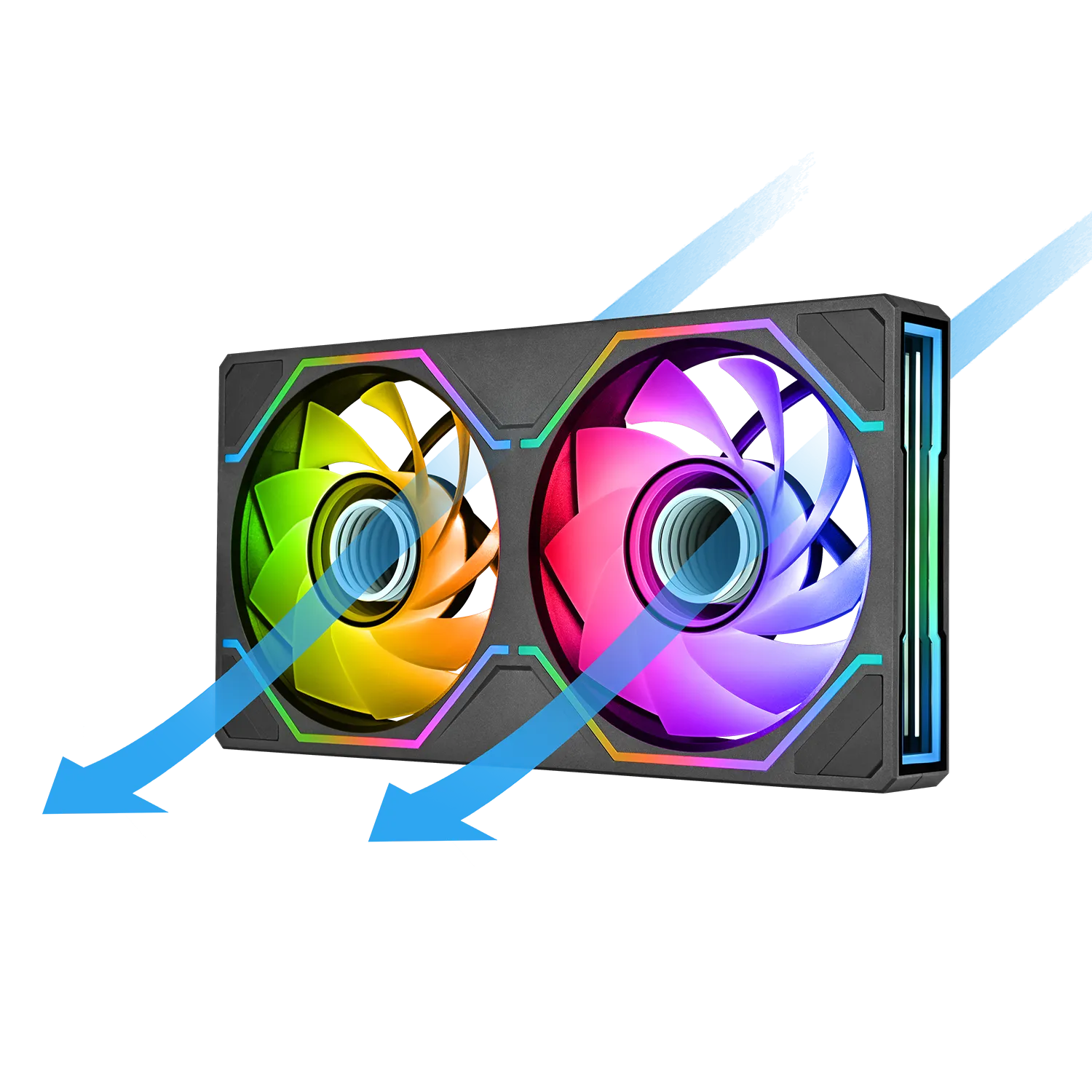

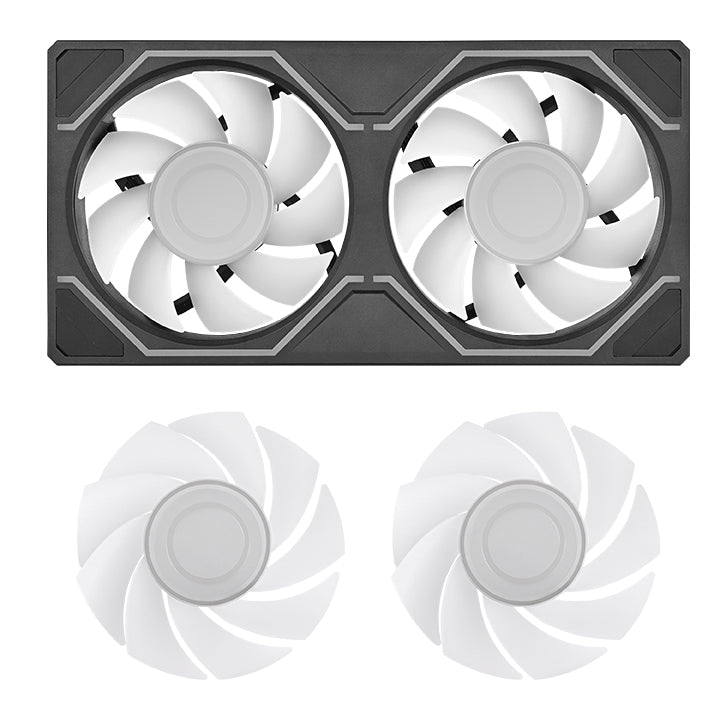

Swap the Fan Blades as You Like

Simply pop out the fan blades, switch up the blades and press them back in!

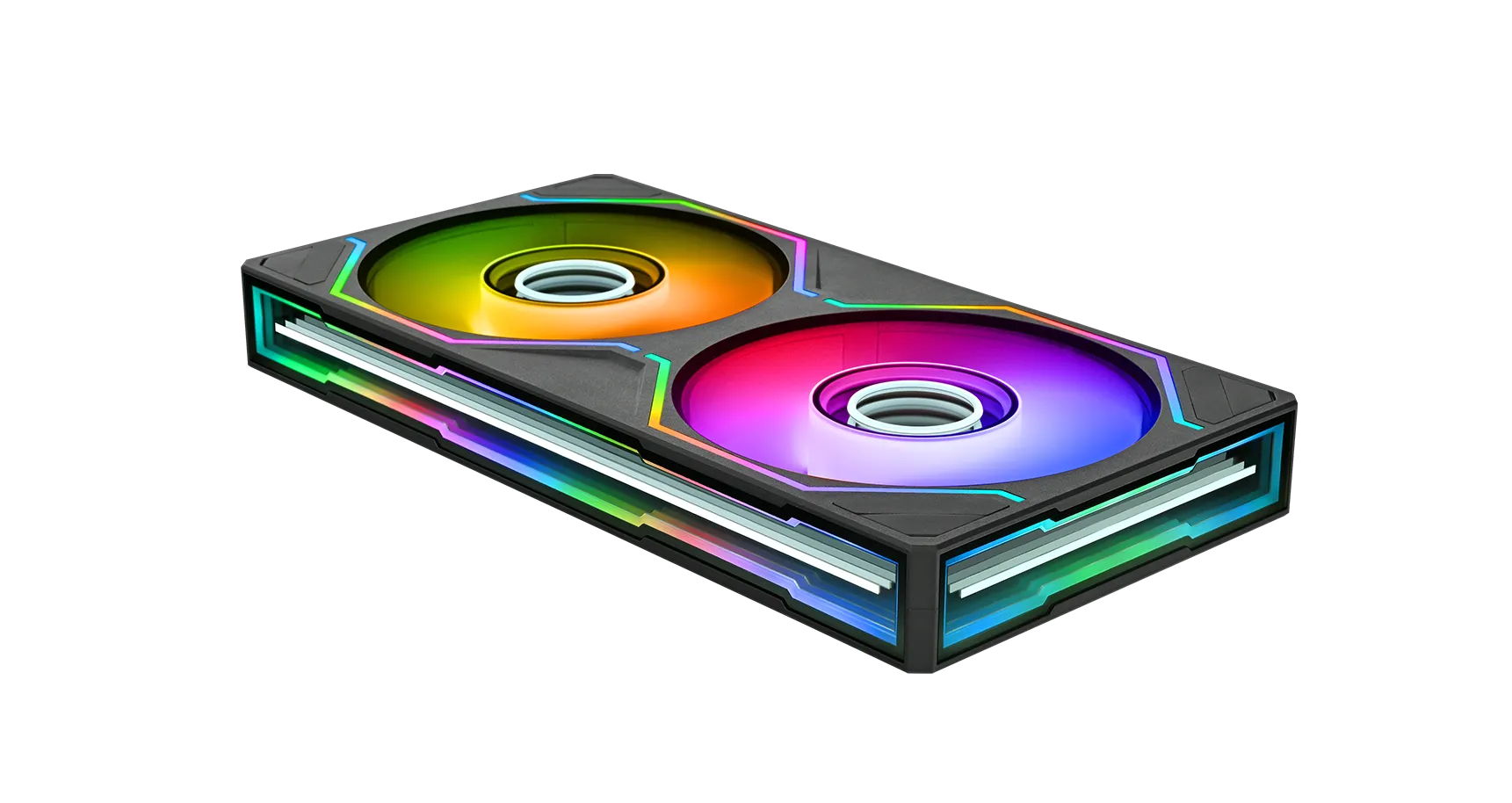

Beyond Ordinary: Dual Infinity Mirror Lighting

The SWAFAN UNIFY showcases innovative Dual Infinity Mirror Lighting, featured on the fan hub and four sides of the frame. Reimagining the infinity mirror, this design combines a fixed white inner ring with a fully customizable ARGB outer ring, delivering richer layers in a single view. Let your build shine with a stylish white core and ARGB lighting in your favorite colors, drawing attention from every angle.

Dual Infinity Mirror Lighting
Fixed White Inner Rings
Customizable ARGB Outer Rings

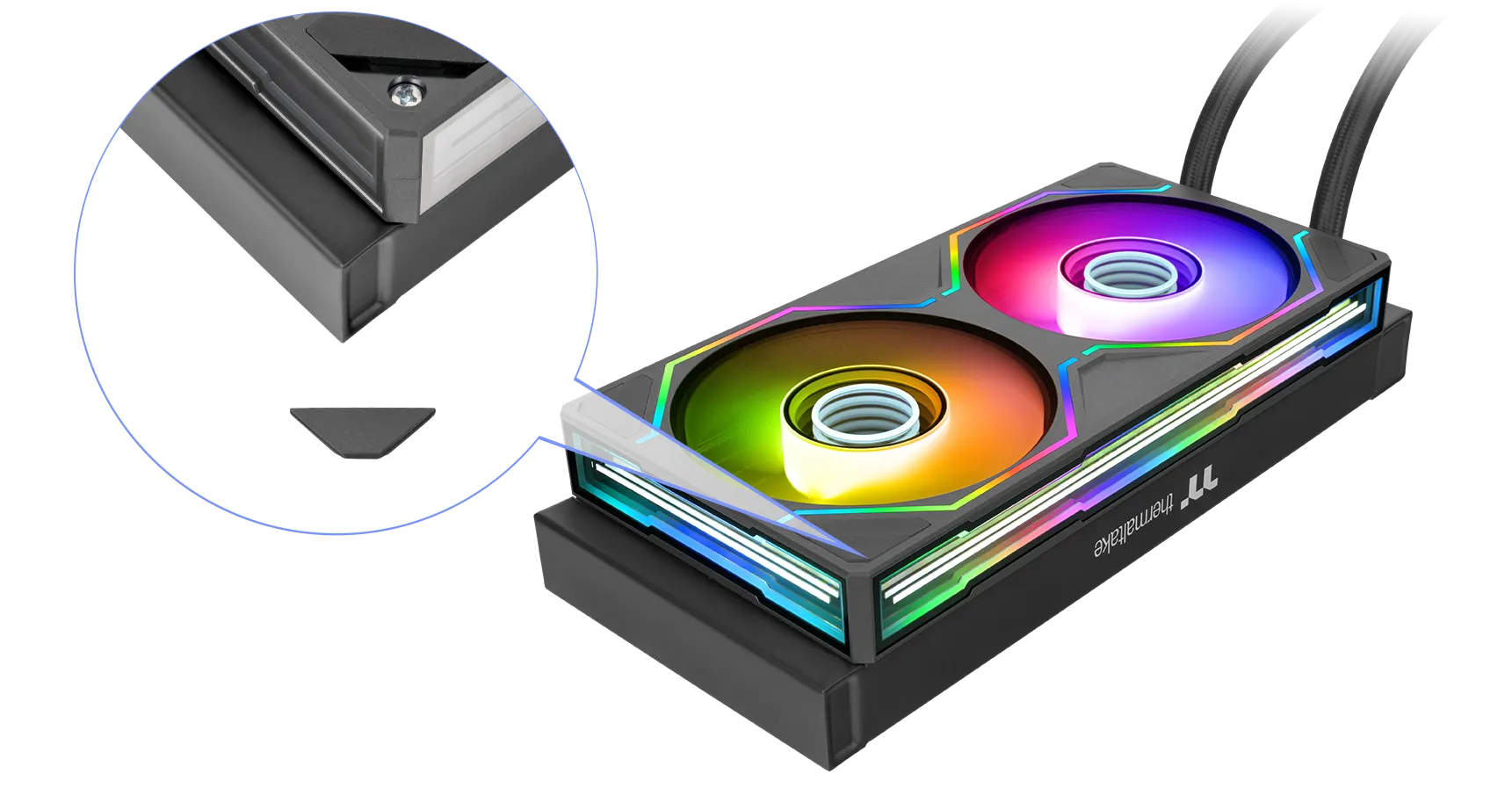

Hidden Screw Design for a Sleek Appearance

Keep your build clean with the Hidden Screw Design. Cleverly hiding the mounting screws with specially designed rubber pads, it creates a smooth surface that enables your ARGB lighting take the spotlight.

SWAFAN UNIFY hidden screw design
28mm Thickness for Enhanced Cooling

28 mm Thickness for Enhanced Cooling

Compared to conventional 25 mm frames, the SWAFAN UNIFY features a 28 mm-thick fan body that improves airflow and static pressure. The added depth also provides more space to highlight the Dual Infinity Mirror Lighting, delivering both stronger cooling performance and a bolder visual presence.

Cleaning Fans are Now Easy and Fun!

Pop and insert, it is that easy.
If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant that is included in the package if needed.

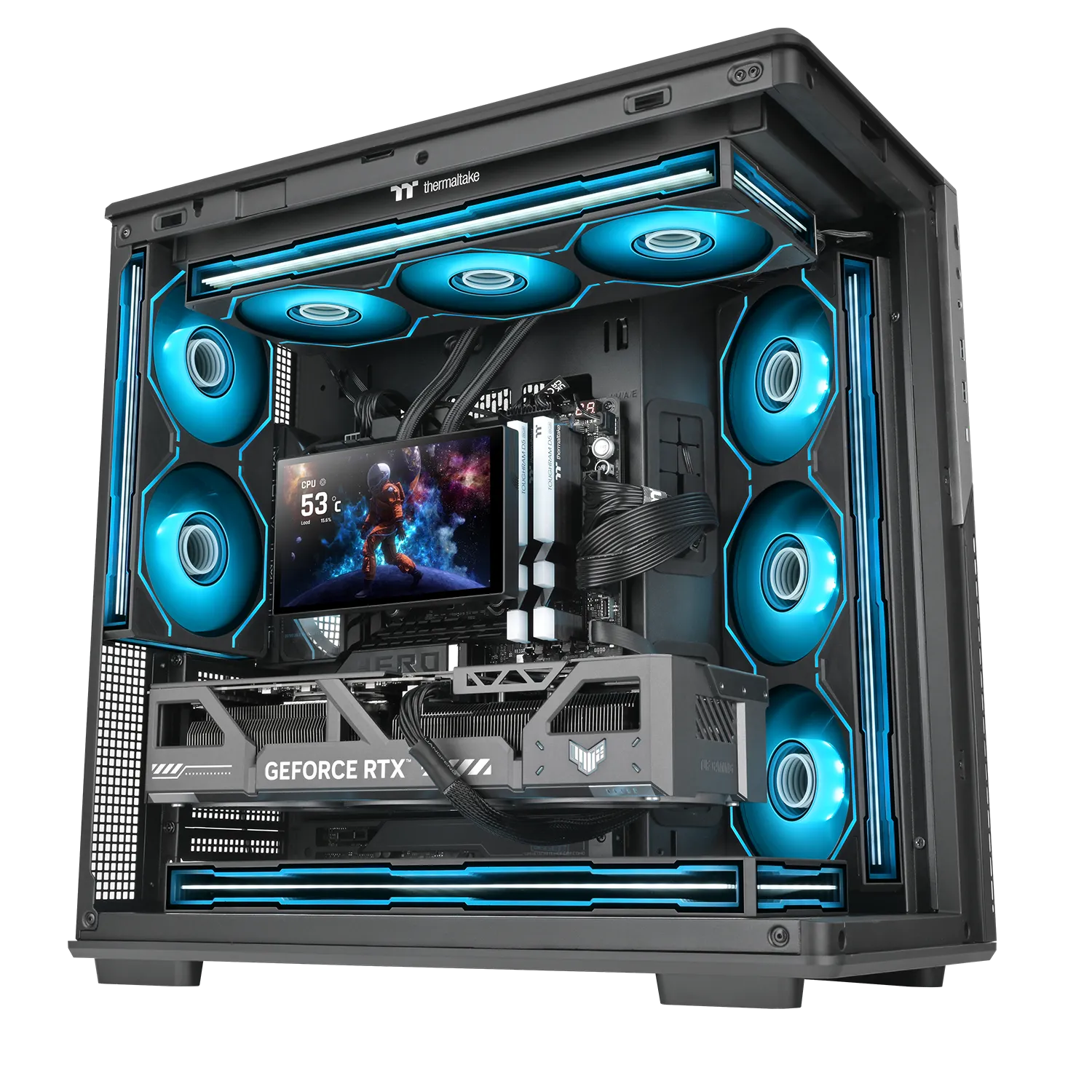

SWAFAN UNIFY Lighting Build

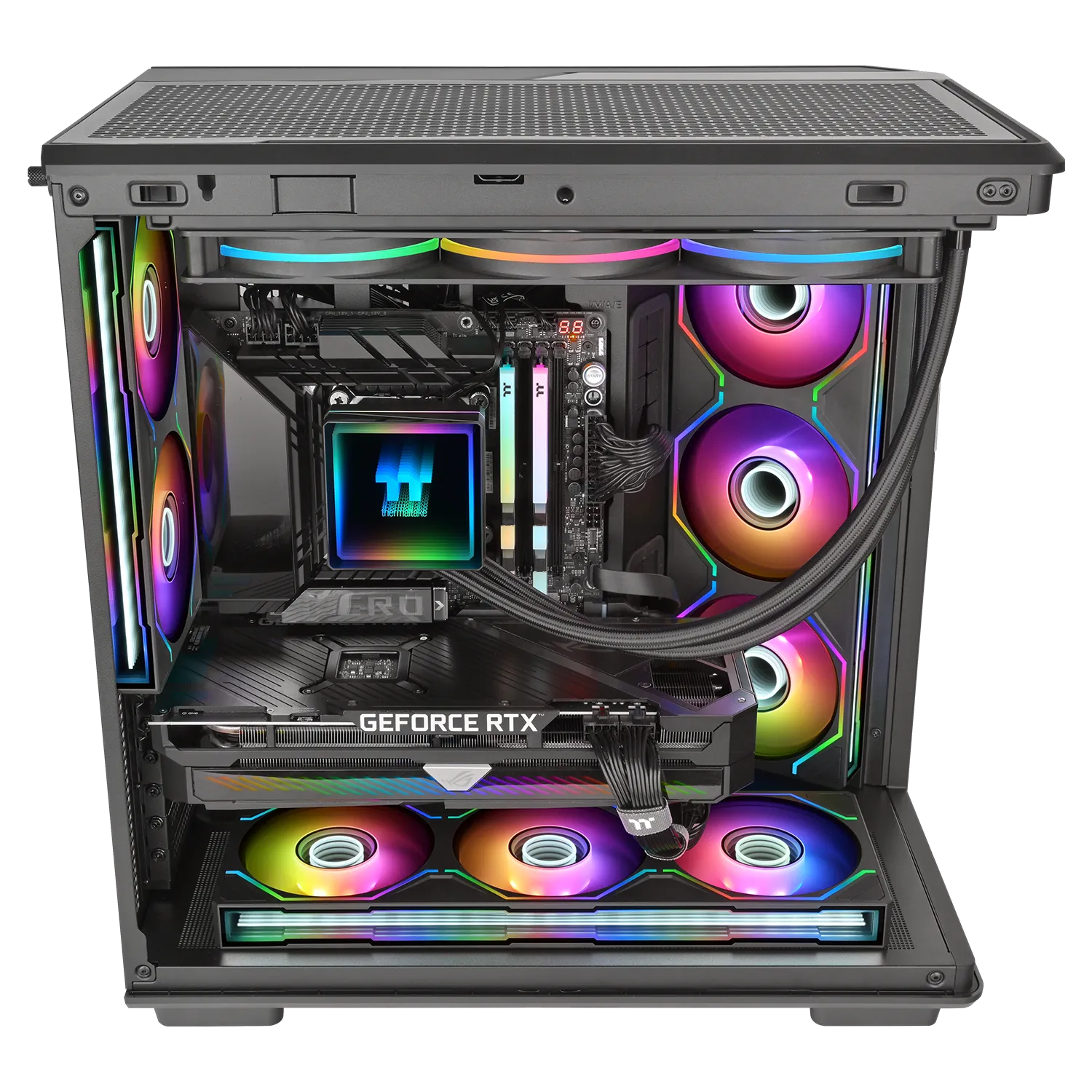

Spectacular Lighting Effects

Light up your system with stunning lighting effects through 5V motherboard sync software, providing great coverage of 16.8 million colors. The SWAFAN UNIFY supports ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK sync software. Immerse your build in vibrant illumination.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. Running both may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.

Product Specifications

P/N CL-F248-PL12SW-A
Dimension 244 x 124 x 28 mm
Interface 244 x 124 x 28 mm
Fan Started Voltage 6 V
Fan Rated Voltage 12 V & 5V
Rated Current 12V: 0.7A / 5V: 1.7A (one fan)
Power Input 12V: 8.4 W / 5V: 8.5 W (one fan)
Fan Speed PWM 500 ~ 2000 R.P.M
Max Static Pressure Standard Fan Blade:2.67 mm-H2O (per fan)
Reverse Fan Blade:2.23 mm-H2O (per fan)
Air Flow Standard Fan Blade:58.13 CFM (per fan)
Reverse Fan Blade:56.15CFM (per fan)
Noise Standard Fan Blade:30 dB-A (per fan)
Reverse Fan Blade:32 dB-A (per fan)
Bearing Type Hydraulic Bearing
Life Expectation 40
Other Fan x 1
