Fan Compatibility List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Right | 3 | - | - |
| Top | 3 | 3 | - |
| Rear | 1 | 1 | - |
| Power Cover | - | - | - |
The image is for reference only.
Stage 500 TG ARGB Snow Mid Tower Chassis
Stage 500 TG ARGB Snow Mid Tower Chassis
SKU:CA-12A-00M6WN-00
Prix habituel
$149.99 USD
Prix habituel
Prix promotionnel
$149.99 USD
Prix unitaire
par
The Stage 500 TG ARGB Snow is an ATX Mid Tower Chassis, featuring a seamless 4mm curved tempered glass panel, it pairs refined aesthetics with a wooden base and ambient ARGB lighting. An optional 6" LCD Panel Kit is available for enhanced visuals.
Impossible de charger la disponibilité du service de retrait
-
Conception
-
Spécification
-
Téléchargement
-
Vidéos explicatives
Motherboard
Mini ITX
Micro ATX
ATX
Micro ATX
ATX
Side Panel
4mm TG x 1
Fan Support
Up to Seven
120mm fans
120mm fans
AIO Support
360/280/240/140/120mm
Dimensions
H*W*D
(mm)
535.6 x 239 x 484
Clearance (mm)
CPU Cooler: 175
GPU: 450
Power Supply: 200
GPU: 450
Power Supply: 200
I/O Ports
1 x USB Type-C
2 x USB 3.0
1 x HD-Audio
2 x USB 3.0
1 x HD-Audio
Storage
1 x 3.5″ HDD
2 x 2.5″ SSD
2 x 2.5″ SSD
The image is for reference only.
Personalized Display Stage
The Stage 500 TG ARGB Snow Mid Tower Chassis features a dedicated front display platform for showcasing collectibles, adding a personalized touch while enhancing the overall aesthetics of your build.
The image is for reference only.
The image is for reference only.
Wooden Base Design
A wooden accent on the base adds warmth and style to the chassis. The natural wood finish creates a unique contrast with the modern design, giving the system a refined look.
Ambient Lighting
The integrated bottom light strip creates a floating effect, adding depth and style to the chassis.
The image is for reference only.
The image is for reference only.
Compatible with Hidden-Connector Motherboards
Designed for next-gen builds, the Stage 500 TG ARGB Snow Mid Tower Chassis supports ATX motherboards, including standard and hidden-connector
ATX/Micro-ATX models from ASUS, MSI, and GIGABYTE.
*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
Pre-installed fans
Equipped with three 120mm Infinity ARGB Reverse PWM intake fans and one 120mm Infinity ARGB PWM exhaust fan, the chassis is ready to deliver
efficient airflow right out of the box.
The image is for reference only.
The image is for reference only.
Optimized Radiator Support
The Stage 500 TG Snow offers excellent cooling flexibility, supporting up to 360mm radiators on the top.
Visually Pleasing, Totally Interactive

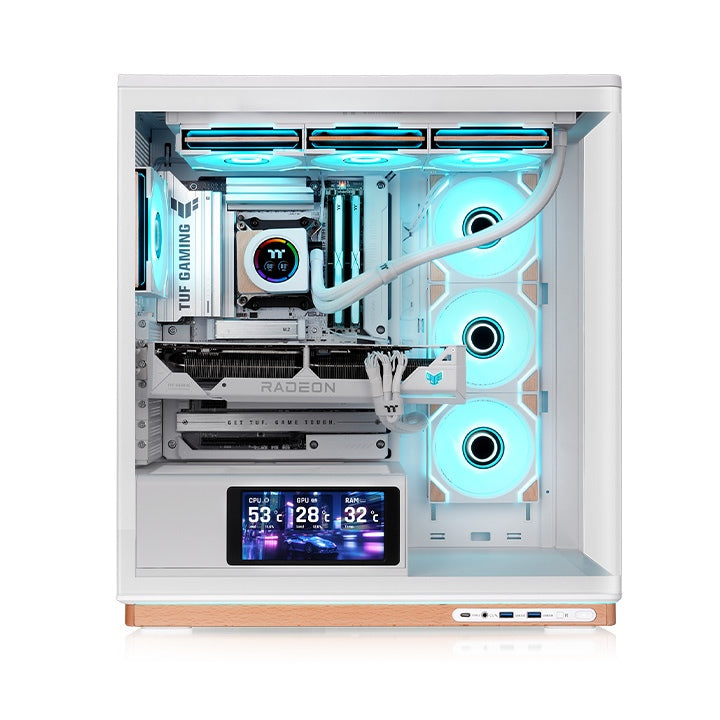

Maximize Stage 500 TG Snow effects by upgrading it with our LCD Panel Kit.
The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.
The image is for reference only.
The image is for reference only.
Personalize Your LCD Display
Through the TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution.
It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather
information, enhancing both visual appeal and customization options for your build.
Unleash Limitless Creativity with AI Forge
Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.
Note:
AI Forge integrates with OpenAI services. An OpenAI account setup and payment are required to activate this function.
According to OpenAI’s pricing standard as of August 2025, the average cost per image generation is about USD 0.04.
The video is for reference only.
Good Dust Protection
Removable dust filters help keep your system clean while maintaining optimal airflow.
The image is for reference only.
Storage Support
The drive plate flexible storage configurations, allowing installation of up to one 3.5" HDDs and one 2.5" SSD, or two 2.5" SSDs.
HDD
SSD
The image is for reference only.
Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type C, one reset button and HD Audio ports are placed on the top panel to grant direct access when needed.
The image is for reference only.
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Top | - | |||||
| Rear | - | - | - | - | - |
The image is for reference only.
Product Specifications
| P/N | CA-12A-00M6WN-00 |
|---|---|
| Series | Stage Series |
| Case Type | Mid Tower |
| Dimensions | 535.6 x 239 x 484 mm (21.09 x 9.41 x 19.06 inch) |
| Side Panel | 4mm Curved Tempered Glass x 1 |
| Color | Snow |
| Material | SPCC |
| Cooling System | Right : 120mm Infinity ARGB PWM Reverse Fan Rear: 120mm Infinity ARGB PWM Fan |
| Drive Bays | 1 x 3.5"+1 x 2.5" or 2 x 2.5" |
| Expansion Slots | 7 |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| Hidden-Connector Motherboard | 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Right: 3 x 120mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 175mm VGA length limitation: 450mm PSU length limitation: 200mm |
