Dockpower FI Snow 750W
Dockpower FI Snow 750W
SKU:PS-DCP-0750FNFAGU-S

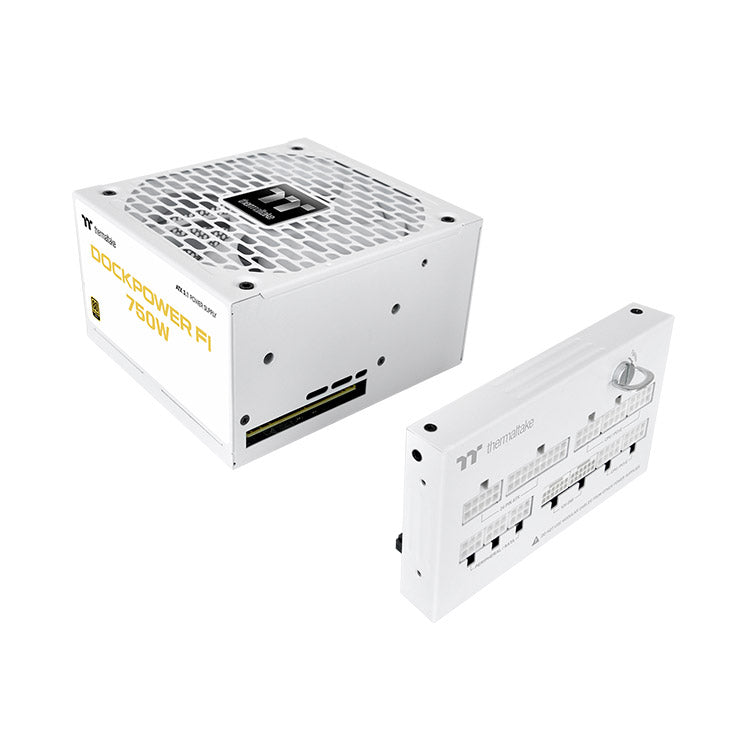

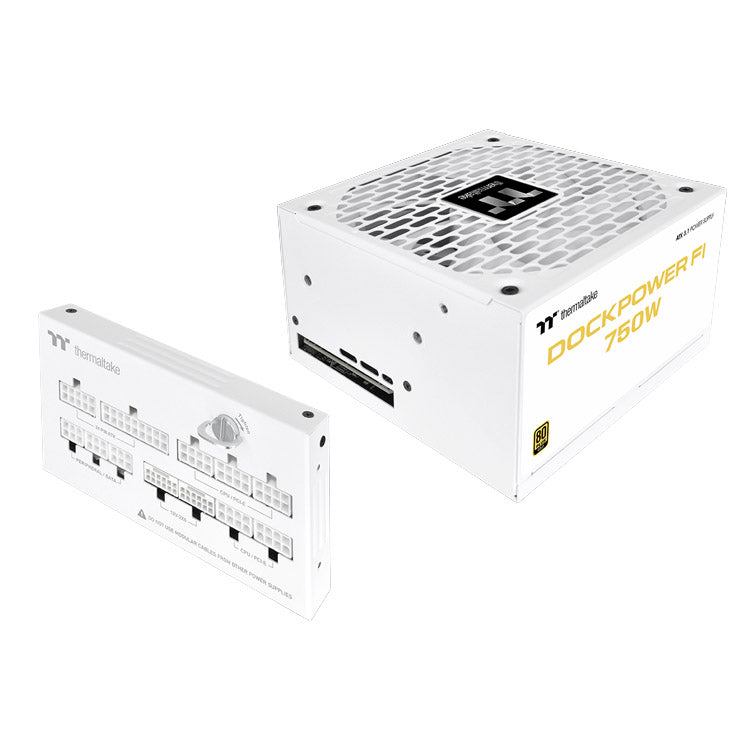

The Dockpower Series features a patent filed docking power architecture that separates cable management from power installation, solving one of the biggest challenges of installing a power supply in confined PC chassis. Cables can be pre-installed and reused across future upgrades, allowing you to simply swap the power supply main unit without touching a single cable. Combined with server-grade 30μ gold-plated contacts, ATX 3.1 compatibility, native PCIe Gen 5.1 support, and 80 PLUS Gold efficiency, Dockpower delivers a smarter, faster, and more reliable way to build and upgrade your PC.
Impossible de charger la disponibilité du service de retrait
-
Conception
-
Spécification
-
Téléchargement
-
Vidéos explicatives
THE NEXT GENERATION
DOCKING POWER ARCHITECTURE
Trusted connection, every time.
for stable and reliable output.
lower contact resistance, better corrosion
protection, and exceptional durability.

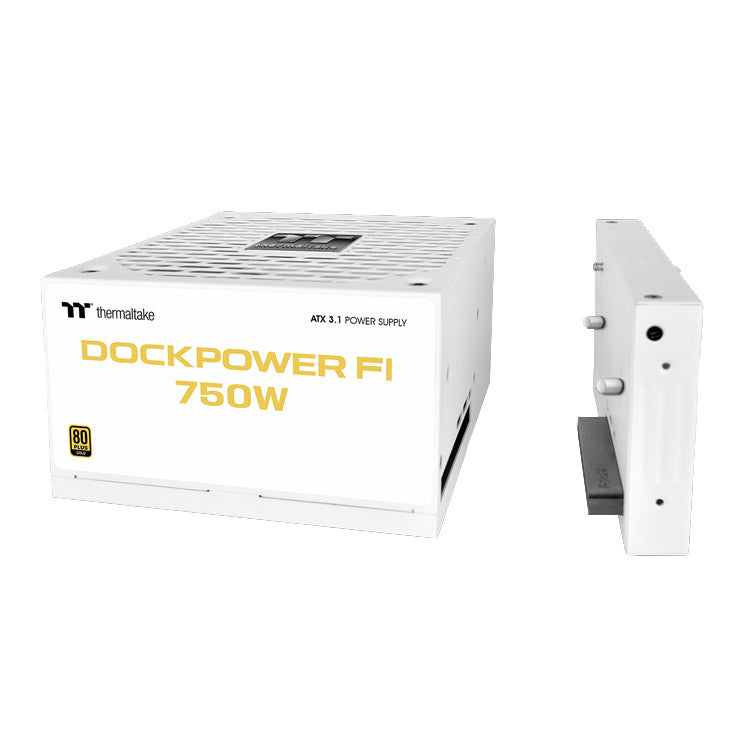

Module and Power Supply Main Unit
together for a firm and reliable connection.
INSTALLATION FLEXIBILITY
INSTALL
POWER SUPPLY MAIN UNIT
PRE-ROUTE THE CABLES
WITH DOCK MODULE
DOCK & LOCK
POWER ON
UPGRADE POSSIBILITIES
UNLOCK & REMOVE
Power Supply Main Unit.
INSERT NEW, DOCK & LOCK
POWER ON
OUR PHILOSOPHY
PCIe GEN 5.1
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufacturers before using the 12V-2x6 cable.

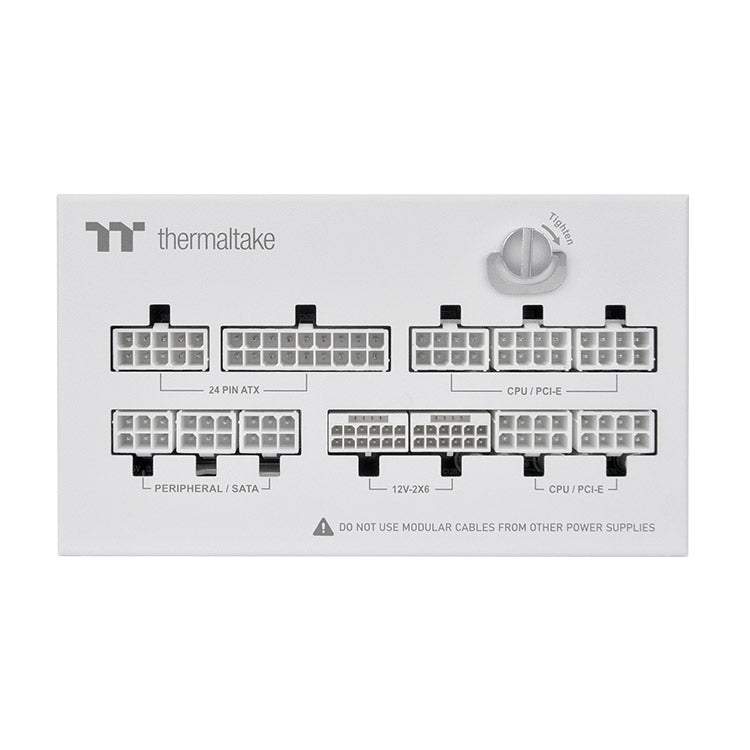

| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (20+4Pin) |
X 1 |
|
X 1 | 550mm |
| ATX 12V (4+4Pin) |
X 2 |
|
X 2 | 700mm |
| PCIe (6+2Pin) |
X 4 |
|
X 2 | 600mm+150mm |
| 12V-2x6 (12+4Pin) 600W |
X 1 |
|
X 1 | 600mm |
| SATA (5Pin) |
X 6 |
|
X 2 |
450mm+150mm +150mm |
| Peripheral (4Pin) |
X 4 |
|
X 1 |
450mm+150mm +150mm+150mm |
Engineered for Reliable Power
Stable Power Design
A high-amperage single +12V rail with LLC + DC-to-DC design delivers stable, precise power where it’s needed.
| AC Input |
Input Voltage: 100-240V~ Input Current: 10A Max. Frequency: 50Hz - 60Hz |
||||
|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 20A | 20A | 62.5A | 0.3A | 3A |
| Max Output Power | 100W | 750W | 3.6W | 15W | |
| Total Power | 750W | ||||
Industry-Grade Protection
OCP, OVP, UVP, OPP, OTP and SCP provide comprehensive protection against common electrical faults.
80 PLUS Gold Efficiency
Up to 90% efficiency for reduced power loss and efficient everyday operation.
Energy & Environment
Supports Intel C6/C7, Energy Star 5.0 and ErP, with WEEE and RoHS compliance.
Product Specifications
| P/N | PS-DCP-0750FNFAGU-S |
|---|---|
| Model | TDP-0750AH3FXG |
| Watts | 750W |
| Max Output Capacity | 750W |
| Color | Black |
| Dimensions | 150mm(W)x86mm(H)x160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V~ |
| Operating Temperture | 0°C to + 40°C |
| Operating Humidity | 5% to 85% |
| Storage Temperture | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 135mm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100 |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC |
| PCI-E 6+2PIN | 4 |
| PCI-E 12+4PIN | 1(600W) |
