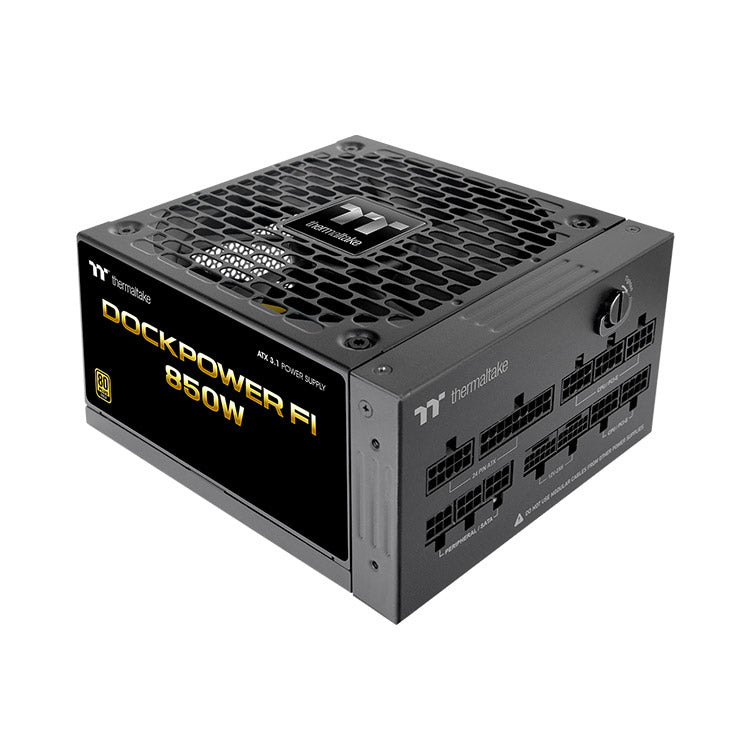

Dockpower FI 850W
Dockpower FI 850W
SKU:PS-DCP-0850FNFAGU-2
DockPower FI redefines PC power with a docking architecture that provides installation flexibility, simplifies cable management, and offers possibilities for future upgrades.

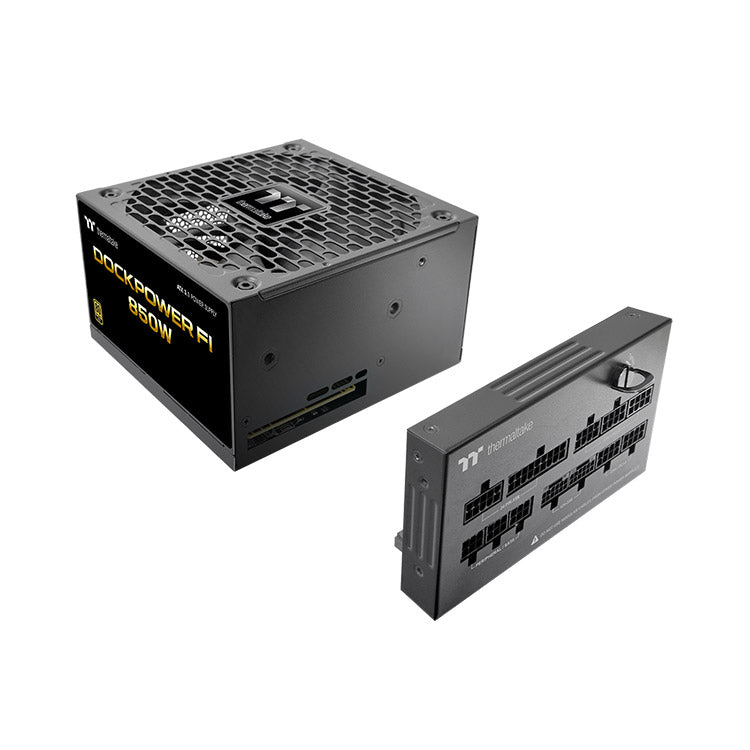

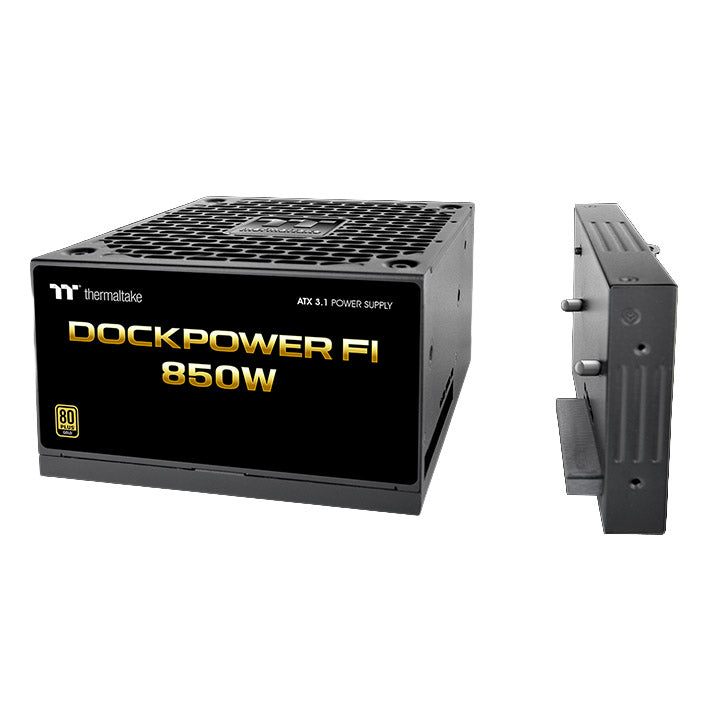

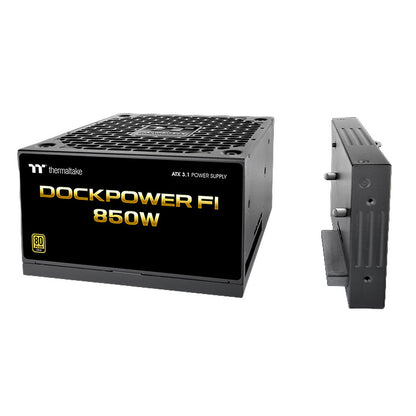

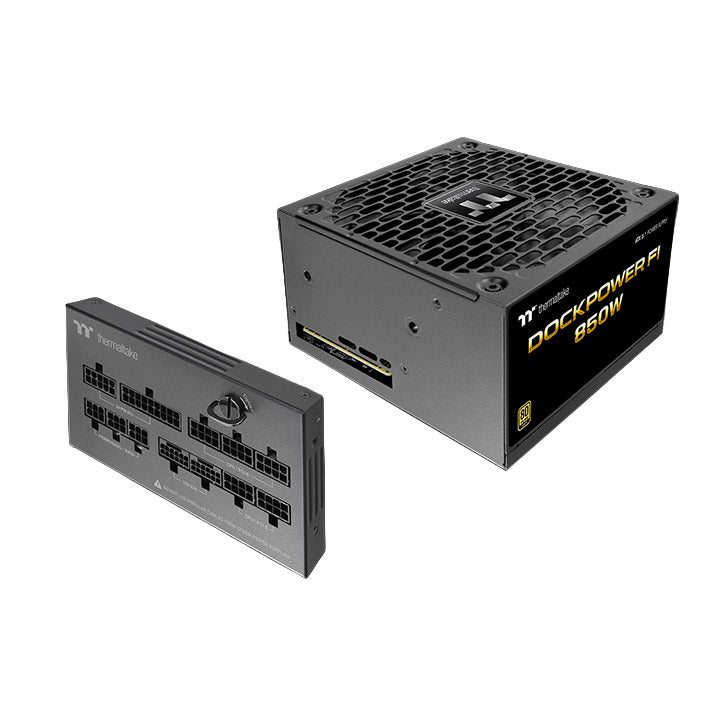

• Docking Power Architecture – Separate the PSU main unit from the Dock Module for easier access in tight spaces.
• Pre-Route, Then Dock – Install and manage cables first, then dock and lock the power unit into place.
• Upgrade Without Rewiring – Keep the Dock Module and cables installed when replacing the power unit.
• 30μ Gold-Plated Dock Connection – Durable high-current contacts paired with a secure D-ring locking mechanism.
• Builder-Friendly Cabling – Native 12V-2x6 with a colored H++ connector crown and low-profile modular cables for easier routing.
Impossible de charger la disponibilité du service de retrait
-
Conception
-
Spécification
-
Téléchargement
-
Vidéos explicatives
THE NEXT GENERATION
DOCKING POWER ARCHITECTURE
Trusted connection, every time.
for stable and reliable output.
lower contact resistance, better corrosion
protection, and exceptional durability.
Module and Power Supply Main Unit
together for a firm and reliable connection.
INSTALLATION FLEXIBILITY
INSTALL
POWER SUPPLY MAIN UNIT
PRE-ROUTE THE CABLES
WITH DOCK MODULE
DOCK & LOCK
POWER ON
UPGRADE POSSIBILITIES
UNLOCK & REMOVE
Power Supply Main Unit.
INSERT NEW, DOCK & LOCK
POWER ON
OUR PHILOSOPHY
PCIe GEN 5.1
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufacturers before using the 12V-2x6 cable.

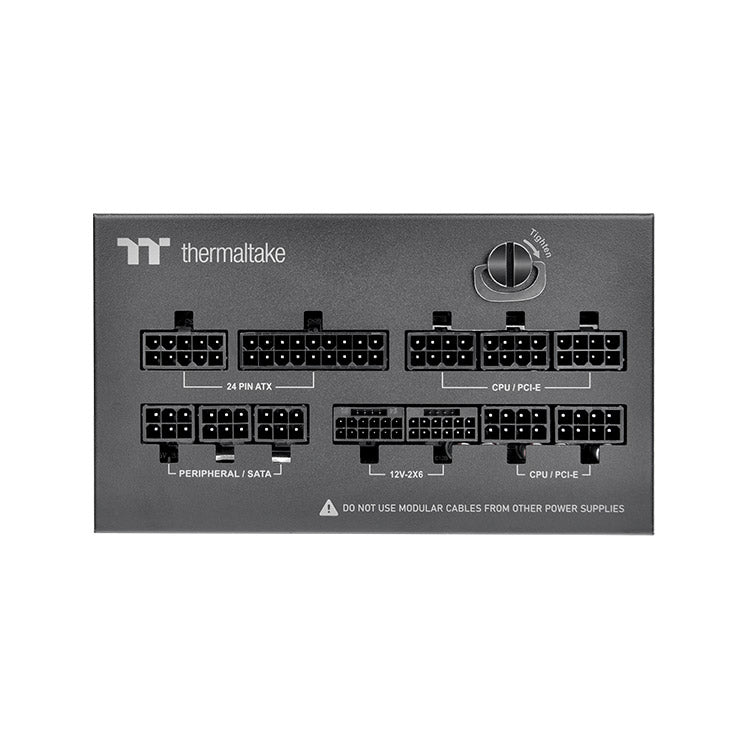

| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (20+4Pin) |
X 1 |
|
X 1 | 550mm |
| ATX 12V (4+4Pin) |
X 2 |
|
X 2 | 700mm |
| PCIe (6+2Pin) |
X 4 |
|
X 2 | 600mm+150mm |
| 12V-2x6 (12+4Pin) 600W |
X 1 |
|
X 1 | 600mm |
| SATA (5Pin) |
X 6 |
|
X 2 |
450mm+150mm +150mm |
| Peripheral (4Pin) |
X 4 |
|
X 1 |
450mm+150mm +150mm+150mm |
Engineered for Reliable Power
Stable Power Design
A high-amperage single +12V rail with LLC + DC-to-DC design delivers stable, precise power where it’s needed.
| AC Input |
Input Voltage: 100-240V~ Input Current: 10A Max. Frequency: 50Hz - 60Hz |
||||
|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 20A | 20A | 70.8A | 0.3A | 3A |
| Max Output Power | 100W | 849.6W | 3.6W | 15W | |
| Total Power | 850W | ||||
Industry-Grade Protection
OCP, OVP, UVP, OPP, OTP and SCP provide comprehensive protection against common electrical faults.
80 PLUS Gold Efficiency
Up to 90% efficiency for reduced power loss and efficient everyday operation.
Energy & Environment
Supports Intel C6/C7, Energy Star 5.0 and ErP, with WEEE and RoHS compliance.
Product Specifications
| P/N | PS-DCP-0850FNFAGU-2 |
|---|---|
| Model | TDP-0850AH3FXG |
| Watts | 850W |
| Max Output Capacity | 850W |
| Color | Black |
| Dimensions | 150mm(W)x86mm(H)x160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V~ |
| Operating Temperture | 0°C to + 40°C |
| Operating Humidity | 5% to 85% |
| Storage Temperture | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 135mm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100 |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC |
| PCI-E 6+2PIN | 4 |
| PCI-E 12+4PIN | 1(600W) |
