Fan Compatibility List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Right | 3 | - | - |
| Top | 3 | 2 | - |
| Rear | 2 | - | - |
| Bottom | 3 | - | - |
The image is for reference only.

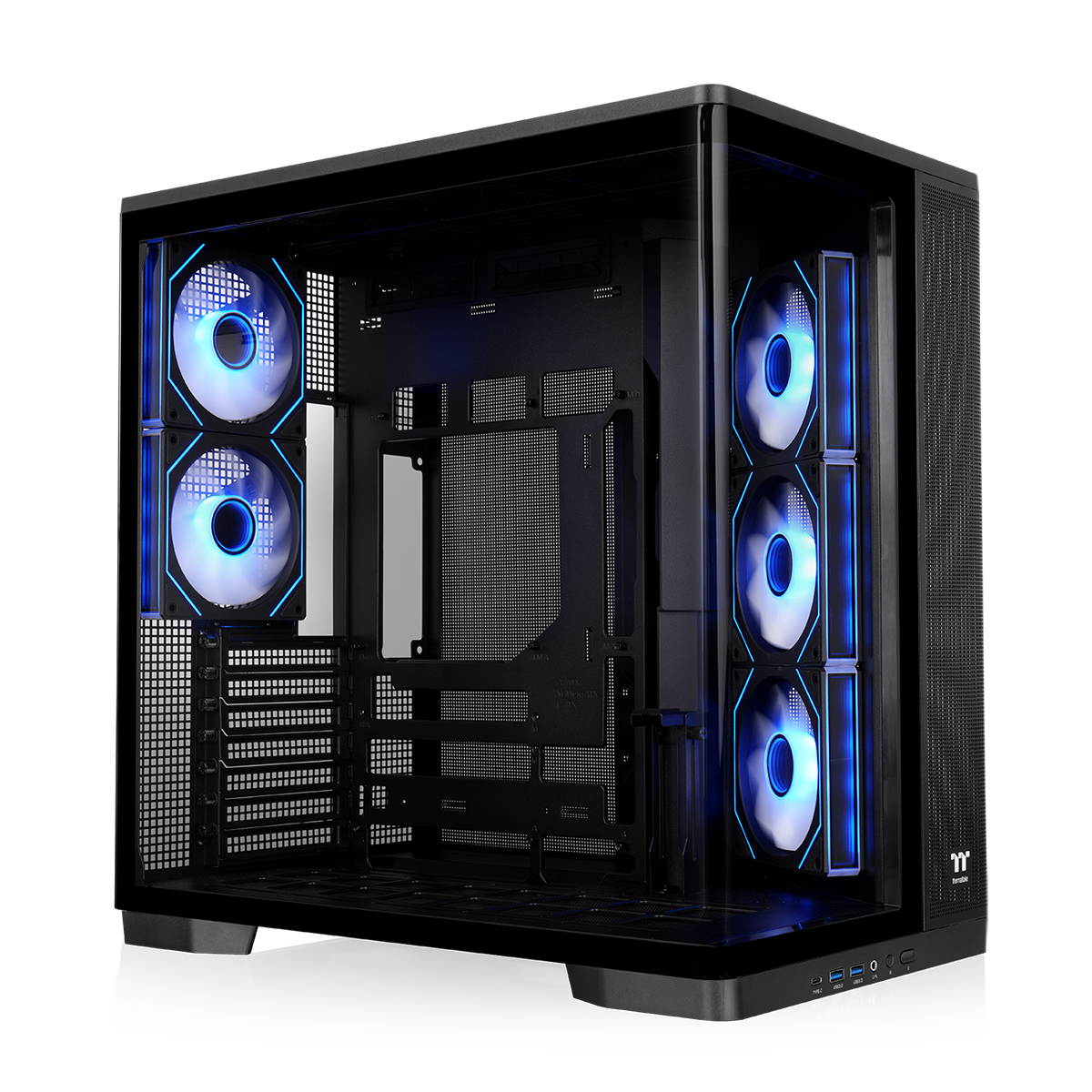

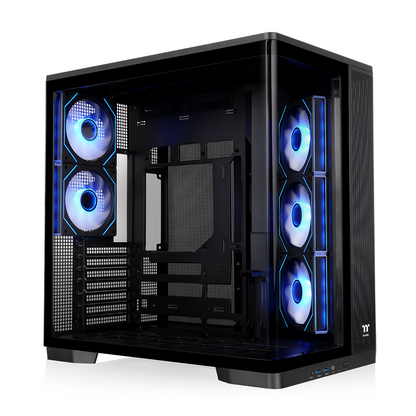

Arcus 380 TG ARGB Mid Tower Chassis
Arcus 380 TG ARGB Mid Tower Chassis
SKU:CA-11Z-00M1WN-00
Prix habituel
$149.99 USD
Prix habituel
Prix promotionnel
$149.99 USD
Prix unitaire
par
Built for amazing views, the Arcus 380 TG ARGB Mid Tower Chassis is an ATX case features a one-piece curved tempered glass for a distinctive look, and comes with three 120mm Infinity ARGB Reverse PWM Fans on the MB side, along with two 120mm Infinity ARGB PWM Fans at rear.
Impossible de charger la disponibilité du service de retrait
-
Conception
-
Spécification
-
Téléchargement
-
Vidéos explicatives
Motherboard
Mini ITX / Micro ATX / ATX
Side Panel
4mm Curved TG x 1
Fan Support
Up to eleven 120mm fans
AIO Support
360 / 280 / 240 / 140 / 120mm
Dimensions (H × W × D)
469 × 285 × 477 mm
Clearance (mm)
CPU Cooler: 160mm
GPU: 430mm
Power Supply: Max 260mm
GPU: 430mm
Power Supply: Max 260mm
I/O Ports
1 × USB Type-C
2 × USB 3.0
1 × HD-Audio
2 × USB 3.0
1 × HD-Audio
Storage
1 × 3.5" HDD
3 × 2.5" SSD
3 × 2.5" SSD
The image is for reference only.
The image is for reference only.
Compatible with Hidden-Connector Motherboards
Designed for next-gen builds, the Arcus 380 TG ARGB Mid Tower Chassis supports ATX motherboards, including standard and hidden-connector
ATX/Micro-ATX models from ASUS, MSI, and GIGABYTE.
*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

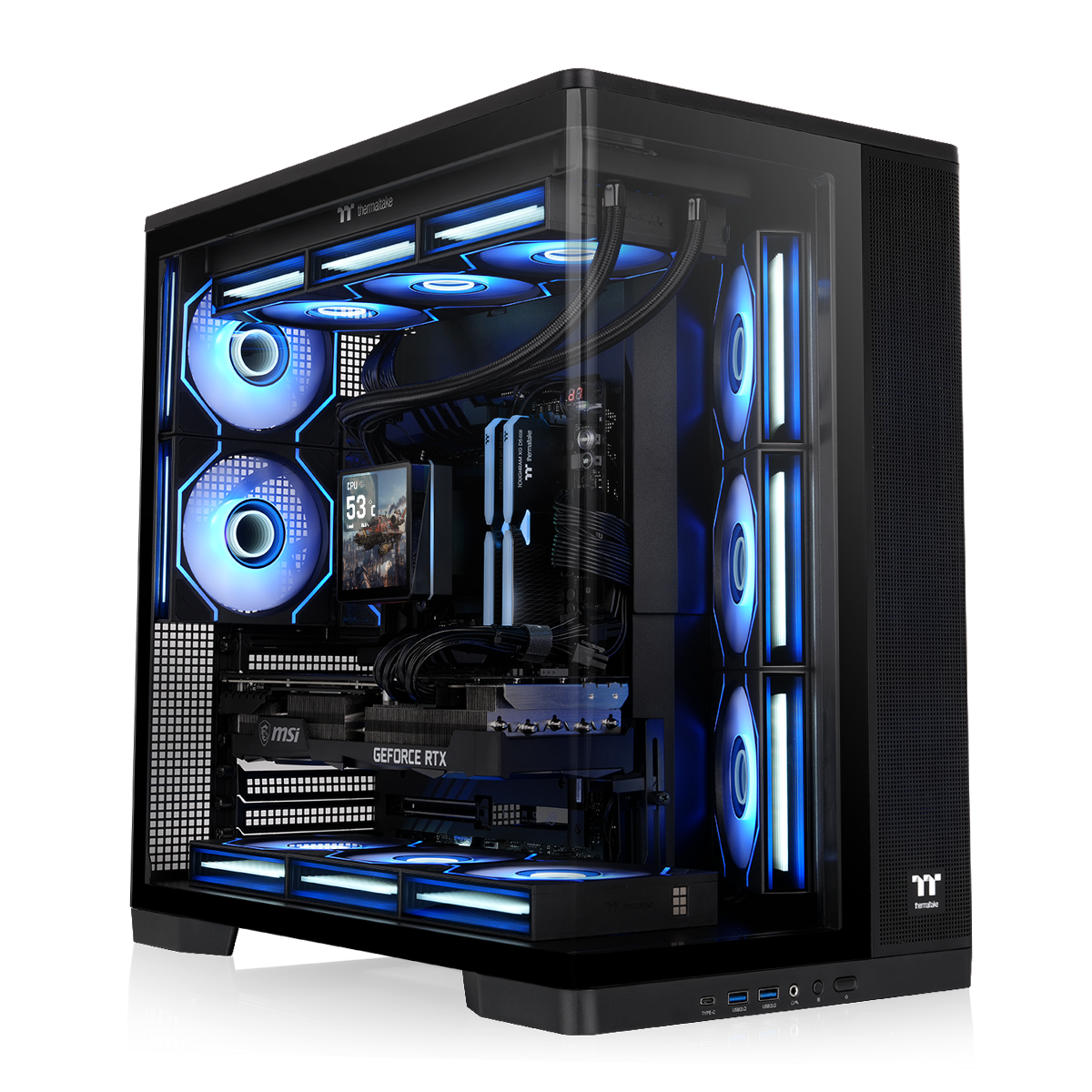

Good Radiator Support
Providing good cooling support, users can choose to place a 360mm radiator at the top of the Arcus 380 TG ARGB Mid Tower Chassis.
The image is for reference only.
Pre-installed Fan System

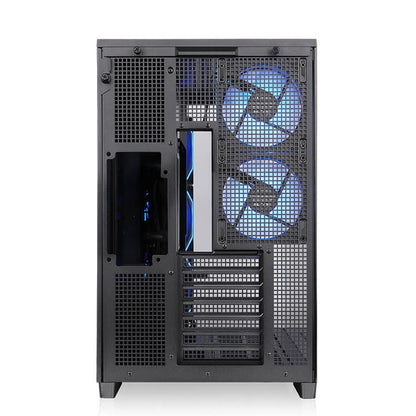

The Arcus 380 TG ARGB comes pre-installed with three 120mm Infinity ARGB Reverse PWM Fans on the motherboard side and two 120mm Infinity ARGB PWM Fans at the rear, delivering brilliant airflow and a refined RGB glow that elevates your build's overall aesthetics.
The image is for reference only.

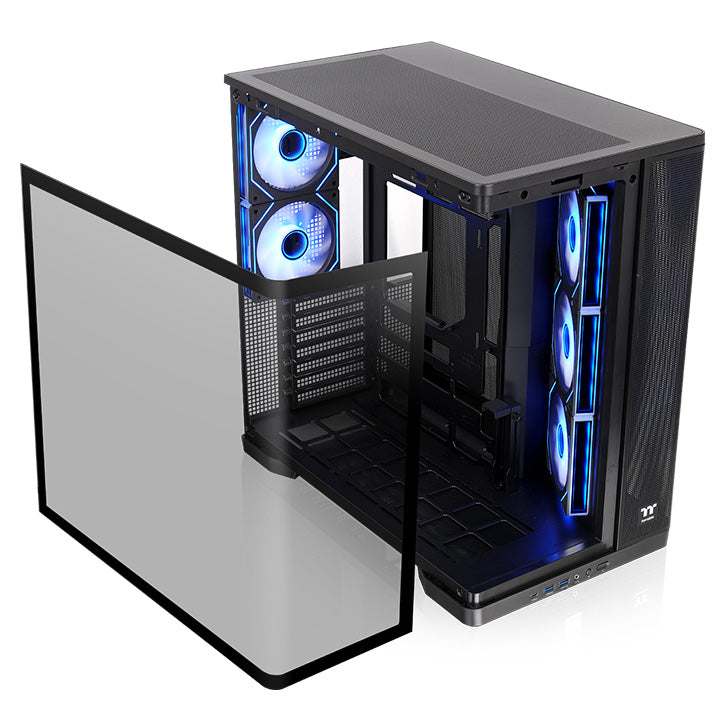

Front and Left Curved Panel
Arcus 380 TG ARGB Mid Tower Chassis features a one-piece curved tempered glass for a distinctive look.
The image is for reference only.
Storage Support
For storage compatibility, the chassis supports up to one 3.5" HDD or three 2.5" SSDs for flexible installation options.
HDD
SSD
The image is for reference only.

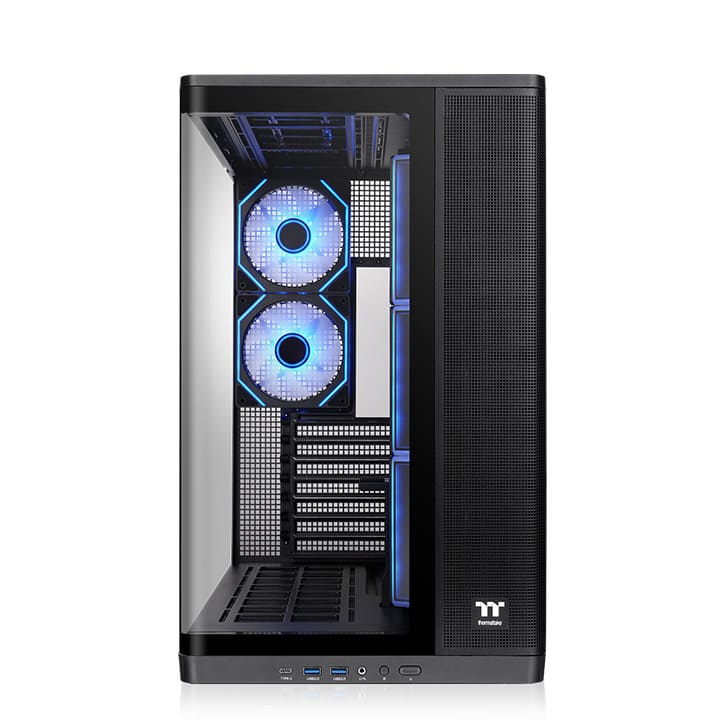

Handy I/O Ports
- Power Button
- Reset Button
- HD Audio
- 2 × USB 3.0 Type-A
- 1 × USB 3.2 Gen 2 Type-C
The image is for reference only.
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Top | - | |||||
| Rear | - | - | - | - | - |
The image is for reference only.
Product Specifications
| P/N | CA-11Z-00M1WN-00 |
|---|---|
| Model | Arcus 380 TG ARGB |
| Case Type | Mid Tower |
| Dimensions | 469 x 285 x 477 mm (18.46 x 11.22 x 18.78 inch) |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC |
| Cooling System | Right(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 2 |
| Drive Bays | 1 x 3.5"+2 x 2.5" or 3 x 2.5" |
| Expansion Slots | 7 |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| Hidden-Connector Motherboard | 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| I/O Port | USB 3.1 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 1 x 140mm, 2 x 140mm Right: 3 x 120mm Rear: 2 x 120mm Bottom: 3 x 120 mm , 2 x 120 mm , 1 x 120mm |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 430mm PSU length limitation: A/180mm, B/195mm, C/205mm |
