View 91 Tempered Glass RGB Plus Edition Super Tower Chassis
View 91 Tempered Glass RGB Plus Edition Super Tower Chassis
SKU:CA-1I9-00F1WN-00
XL-ATX super tower chassis with three tempered glass windows and four preinstalled 140mm fans.
Couldn't load pickup availability
-
Design
-
Specification
-
Download
-
How-to Videos

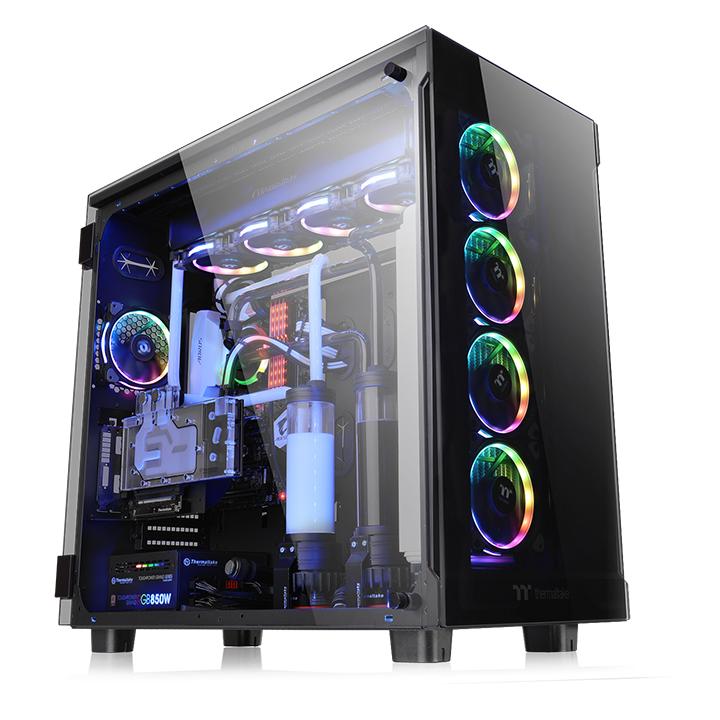

Thermaltake adds the new Thermaltake View 91 Tempered Glass RGB Edition Super Tower Chassis to its TT Premium lineup. It’s a 16.8 million-color RGB-imbued XL-ATX tower featuring three 5mm thick tempered glass panels (front and both sides) and 4 preinstalled Riing Plus 14 RGB fans (three at the front and one at the rear). Comes with a USB type-C receptacle on the top panel plus dual liquid cooling capabilities to offer extraordinary LCS flexibility.
*The image is for reference only; four Riing Plus 14 RGB fans are included.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that combines the most advanced addressable
LED lighting with Thermaltake’s patented TT RGB PLUS Software. TT RGB PLUS ecosystem provides nearly unlimited
possibilities for playing with colors, synchronizing lights to games, music, CPU temperatures or other TT RGB
PLUS products, including case fans, CPU/VGA waterblocks, AIO CPU coolers, PSUs, LED strips and peripherals.
The patented software allows users to change the light modes, colors, speeds, brightness, fan speeds, and even
supports AI voice control in iOS and Android devices.
Preinstalled with 4 Riing PLUS 14 LED RGB fans (three front fans and one rear fan) to deliver a better RGB experience
and improve thermal efficiency. Offering high-static pressure, patented 16.8 million colors LED ring, 12 single
controllable LEDs, compression blades and hydraulic bearing, each fan is digitally PWM controlled through the patented TT RGB PLUS Software (Taiwan Patent: 105216989).
The software also allows for fan performance monitoring,
fan speed adjustment and lighting effects control.
*Compatibilitiy: Requires Riing Plus RGB Software 1.0.5 or later.
Three-panel 5mm thick tempered glass (front and both sides) gives the case a sleek look and guarantees the durability
of the window while ensuring the ultimate internal component visibility. Both sides are hinged and swing-open
for easy and full access to your build.
*The image is for reference only; four Riing Plus 14 RGB fans are included.
The front mounted USB 3.1 Type-C port allows for extra data transfer speed up to 10Gbps and power delivery potential,
from video/audio to fast disks /quick-charging batteries. With USB 3.1 Type-C the USB cable is reversible,
so there is no more “up” or “down” fumbling around, and users can plug it in either way.
Freely build your system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays.
No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation
or maintenance.
3.5” or 2.5” HDD Drive Compatible
The item is prebuilt.
The fan mount brackets feature a quick-release bar on each side for instant removal and reattachment of the fan with minimal movement, supporting up to three 200mm fans.
To smooth out your gaming experience and extend the life of your component, there are removable magnetic dust filters on the top, front and bottom sides to ensure clean air intake and efficient heat dissipation.
Specially designed for dual GPU placement options, the View 91 TG RGB Edition has the support for vertical graphic
card layout with dual PCI-E slots design. Integrated riser GPU support bracket not only prevents the graphic
card from sagging, but also helps to reduce the weight on the motherboard PCI-E slots.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions with ultra-excellent
quality. Features like, extreme high-speed cable with highly-routable design, EMI shielding with conducting
polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.
*PCI-e riser cable is optional.
Turn the tides on traditional radiator mounting and bring out the glorious view of custom loop or all-in-one radiator applications with vertical radiator viewing. Supporting proper placement for 120mm and 140mm radiator applications up to 480mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast grade cooling, fitment and flow.
*Note: Cable management compatibility may vary based on motherboard size and design.
Enables users to build a complete high-end system that supports up to standard XL-ATX motherboards, CPU coolers up to 200mm in height, VGA lengths up to 600mm without HDD rack, and PSU sizes up to 220mm in length even with two 140mm bottom fans. With the included combo 3.5”/2.5” tool-free drive bays, the hassles of installation/removal are minimized, further, the 3.5” and 2.5” storage drives are freely interchanged, secured and stored with ease.
Excellent airflow capabilities are permitted thanks to the four built-in 140mm Riing PLUS LED RGB fans (three
at the front and one on the rear). To maximize cooling performance, users are able to mount the fan anywhere
inside: up to (2) large 200mm fans on the top panel plus (3) 140mm fans at the bottom, while there is still
room for up to (6) 200mm fans inside the right panel.
*The image is for reference only; four Riing Plus 14 RGB fans are included.
Features roomy installation space for advanced AIO/DIY liquid cooling components. Natively supports all types
of AIO liquid cooling solutions and the capability to house up to triple 480mm DIY liquid cooling radiator
fitment and up to 360mm AIO liquid coolers. Compatible with the latest Intel processors and AMD/Nvidia graphics
cards, it is able to hold data or host a number of different features between computers so as to become another
workstation for technical or scientific purposes.
View 91 TG RGB Fan Supporting List
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
Product Specifications
| P/N | CA-1I9-00F1WN-00 |
|---|---|
| Series | View |
| Case Type | Super Tower |
| Dimensions | 691 x 344 x 645 mm (27.2 x 13.5 x 25.4 inch) |
| Weight | 26.8 kg / 59.08 lb |
| Side Panel | 5mm Tempered Glass x 3 (Left & Right & Front) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 140 x 140 x 25 mm Riing Plus RGB fan (500-1400rpm, 27.2dBA) Front (intake) : 140 x 140 x 25 mm Riing Plus RGB fan (500-1400rpm, 27.2dBA) x3 |
| Drive Bays | 12 x 3.5’’ or 2.5’’ (HDD Cage) |
| Expansion Slots | 10 + 2 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX) , 13.6” x 10.4” (XL-ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| I/O Port | USB 3.0 x 4, Type-C x 1,HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 4 x 120mm , 3 x 140mm Top: 4 x 120mm , 3 x 140mm , 2 x 200mm Rear: 1 x 120mm , 1 x 140mm Bottom: 3 x 120mm , 3 x 140mm Right Side(Behind M/B Tray): 8 x 120mm , 8 x 140mm , 6 x 200mm |
| Radiator Support | Front: 1 x 480mm , 1 x 420mm Top: 1 x 480mm , 1 x 420mm , 1 x 400mm Rear: 1 x 120mm , 1 x 140mm Bottom: 1 x 280mm Right Side(In front of M/B Tray): 1 x 480mm, 1 x 420mm |
| Clearance | CPU cooler height limitation: 200mm VGA length limitation: 470mm(with HDD rack) 600mm(without HDD rack) PSU length limitation: 180mm (With Three Bottom Fans) 220mm (With Two Bottom Fans) |
