View 380 XL WS ARGB Mid Tower Chassis
View 380 XL WS ARGB Mid Tower Chassis
SKU:CA-11E-00M1WN-WS
Couldn't load pickup availability
-
Design
-
Specification
-
Download
-
How-to Videos
- The image is for reference only.

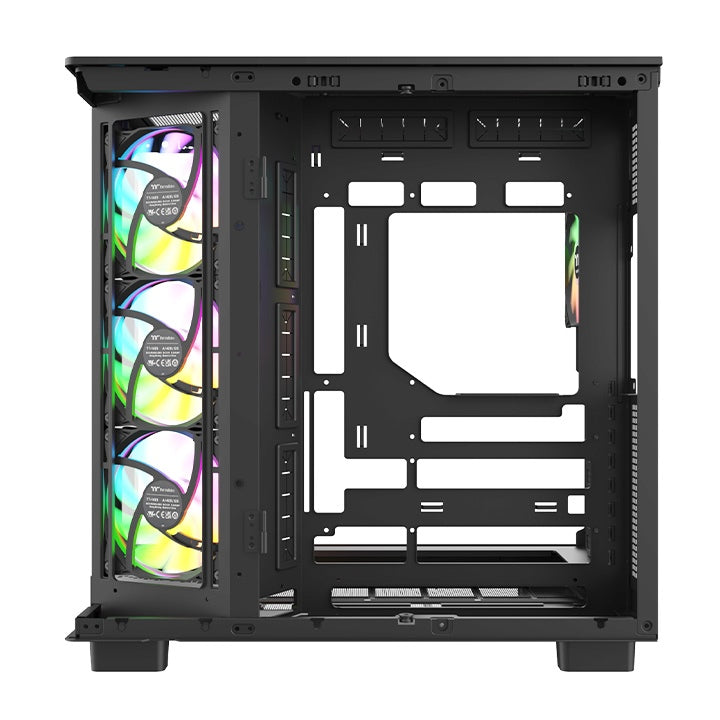

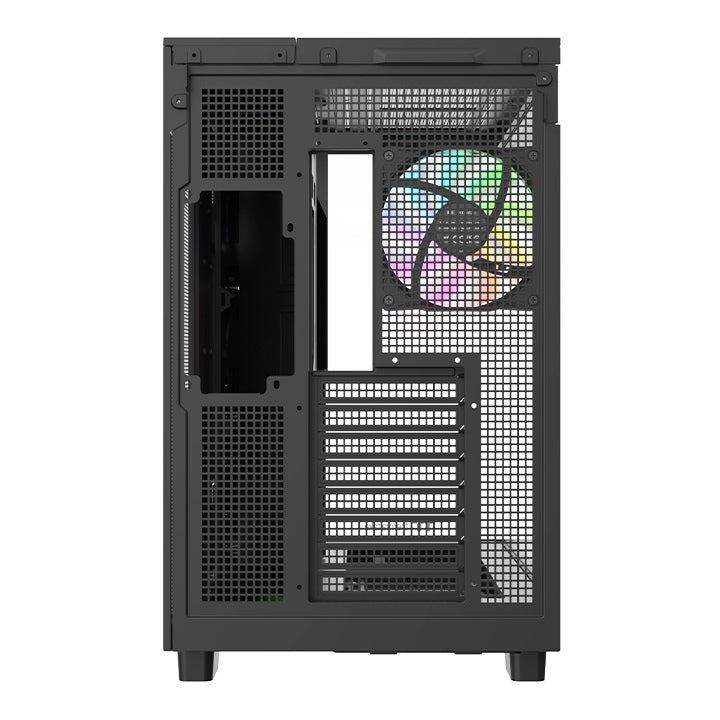

Created for next-generation motherboards, the View 380 XL WS ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
- The image is for reference only.
- The image is for reference only.

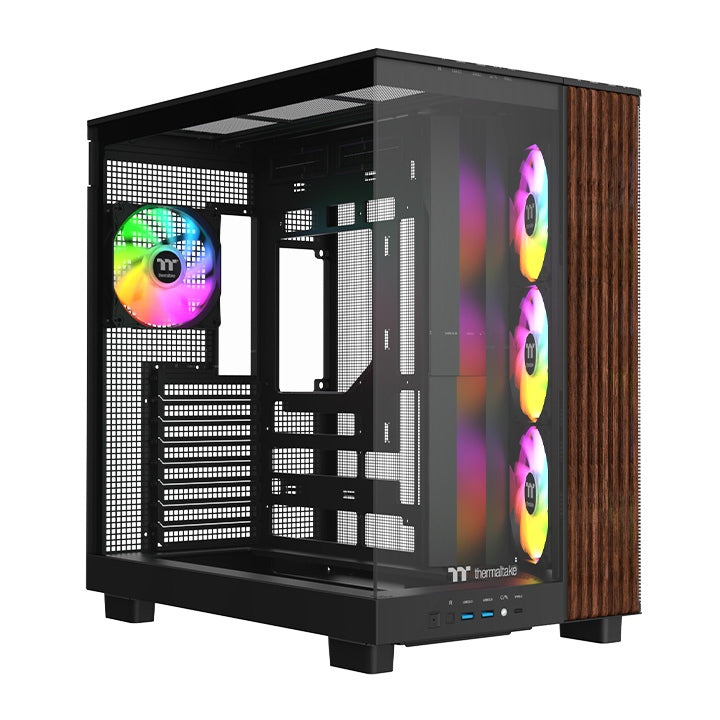

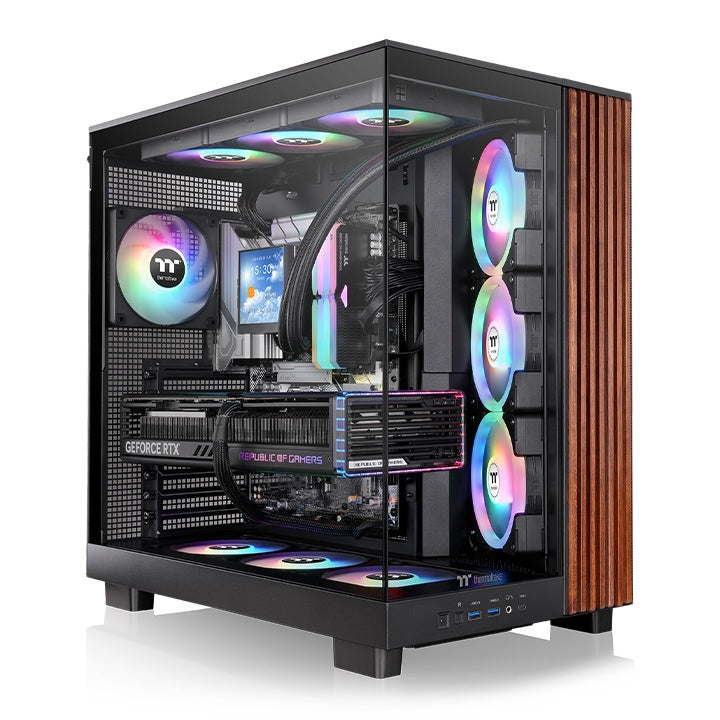

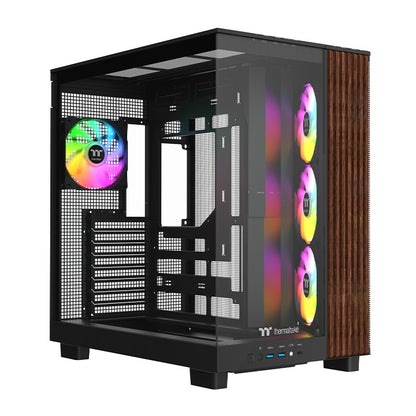

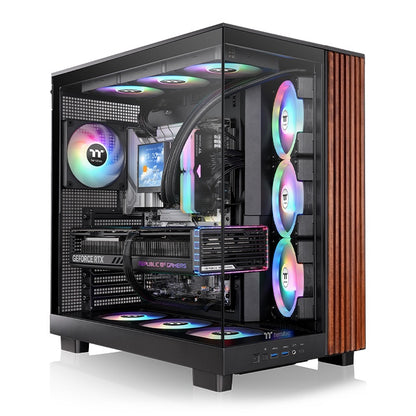

The View 380 XL WS ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.
- The image is for reference only.
The View 380 XL WS ARGB is capable of accepting up to a 360mm radiator on the top and on the side of the chassis. Check out the links below for some options from TT.
- The image is for reference only.

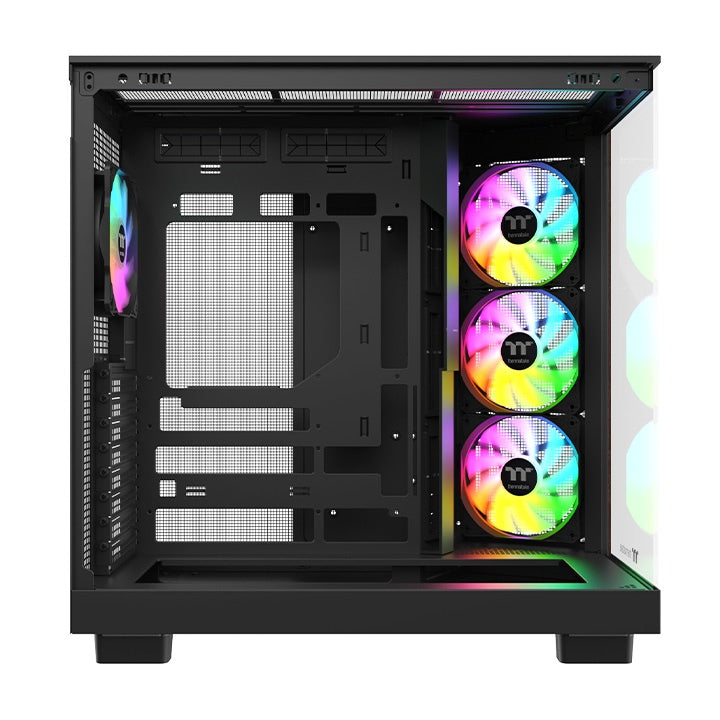

The View 380 XL WS ARGB comes with four 120mm ARGB Lite Fans pre-installed, three reverse version fans are mounted on the side intake to bring fresh air into the chassis and another standard fan is mounted in the rear of the chassis to provide some exhaust. For lighting each fan has 9 LEDs installed in the hub and controlled via a 3 pin ARGB connection for easy control through your motherboards lighting software.
- The image is for reference only.
Prevent GPU sag with the included support brace. Mounting to the motherboard tray the brace can adjust vertically to suit whichever card you decide to build with.
- The image is for reference only.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
- The image is for reference only.
- The image is for reference only.

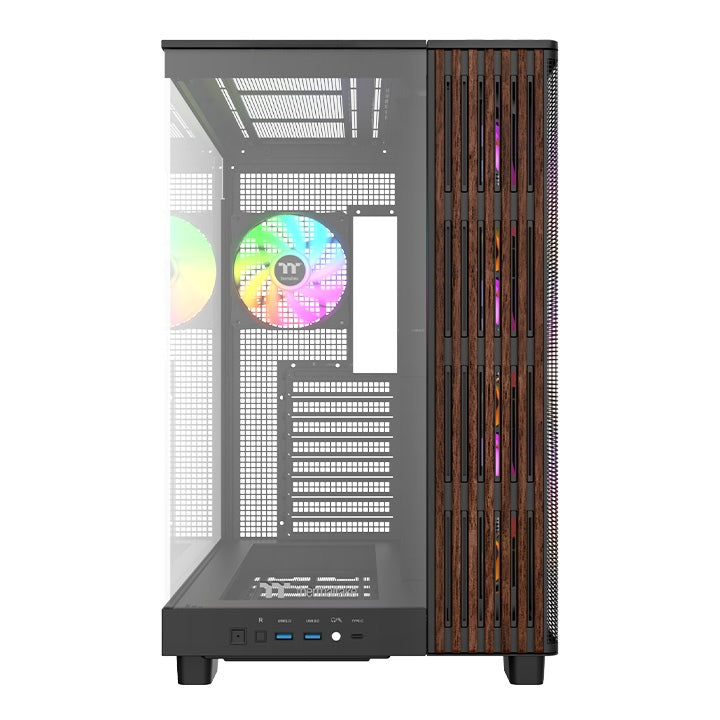

Utilizing two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port and an HD audio port the View 380 XL TG ARGB Future Dusk provides easy access to connectivity when you need it and a clean look when you don't.
- The image is for reference only.
| 120 | 240 | 360 | 140 | 280 | 420 | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | ● | ● | ● | - |
| Right | ● | ● | ● | - | - | - |
| Rear | ● | - | - | - | - | - |
| Bottom | - | - | - | - | - | - |
| 120 | 240 | 360 | 140 | 280 | 420 | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | ● | ● | ● | - |
| Right | ● | ● | ● | - | - | - |
| Rear | ● | - | - | - | - | - |
| Bottom | - | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Top | 3 | 2 | - |
| Right(M/B Side) | 3 | - | - |
| Rear | 1 | - | - |
| Power Cover | 3 | - | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
