View 300 MX Snow Mid Tower Chassis

Name: View 300 MX Snow Mid Tower Chassis
Brand: Thermaltake USA
SKU: CA-1P6-00M6WN-00
Price: 89.99 USD
Availability: InStock

SKU:CA-1P6-00M6WN-00

$89.99 USD

~~$159.99 USD~~ $89.99 USD

Sale Sold out

Product variants

Quantity

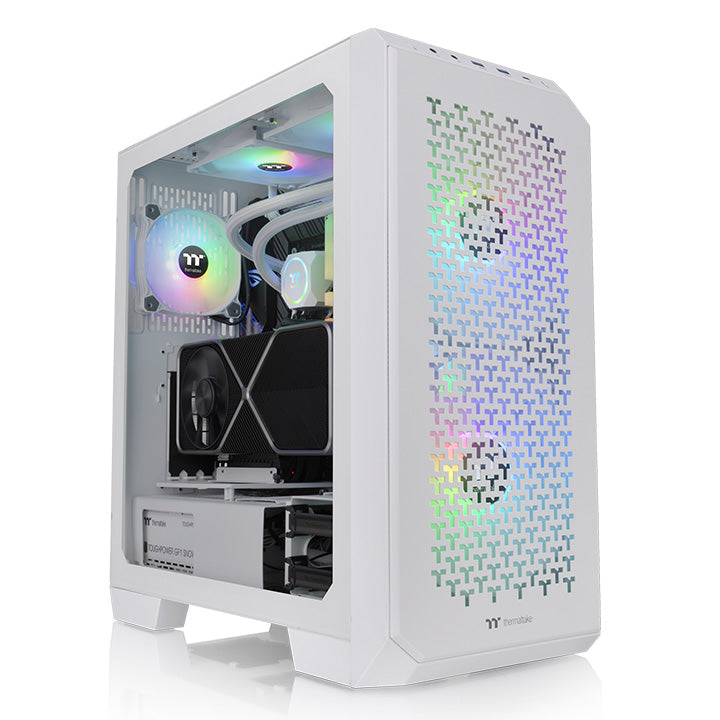

Designed with dual front panels and featuring two pre-installed 200mm ARGB PWM fans at the front and one 120mm ARGB PWM fan at the rear, the View 300 Snow MX Mid-Tower Chassis provides optimal cooling performance while allowing you to choose your own style and front panel design.

View full details

Design
Specification
Download
How-to Videos

View 300 MX Snow

Pre-installed Two 200mm ARGB PWM Fans & One 120mm
ARGB PWM Fan for Massive Airflow

Choose your style with dual front panels!

Designed to push the beloved View Series lineup to another level, the View 300 MX Snow Mid-Tower Chassis features two pre-installed 200mm ARGB PWM fans in the front and one 120mm ARGB PWM fan at the rear to provide optimal cooling performance. Noteworthy, the View 300 MX Snow series is the first chassis of the Thermaltake collection that comes with dual front panels, including a tempered glass panel and a perforated metal panel featuring the TT Logo, allowing users to choose their own style. Moreover, the View 300 MX features rotational PCI-E Slots, removable filters, a removable PSU cover, and supports up to E-ATX motherboards (12” x 13”), up to a 360mm Radiator on the front, top and M/B side. These merits make the View 300 MX Snow an eye-catching chassis that is ideal for you to make your next build epic, high-performing, and one of a kind.

The image is for reference only.

Pre-installed Two 200mm ARGB PWM Fans & One 120mm ARGB PWM Fan

Two 200mm ARGB PWM fans and one 120mm ARGB PWM fan are pre-installed, efficiently moving a considerable amount of air through the chassis with minor noise thanks to the fan speed control and through the PWM function. Furthermore, the LED lighting effect can be manipulated with a physical button or motherboard supported software.

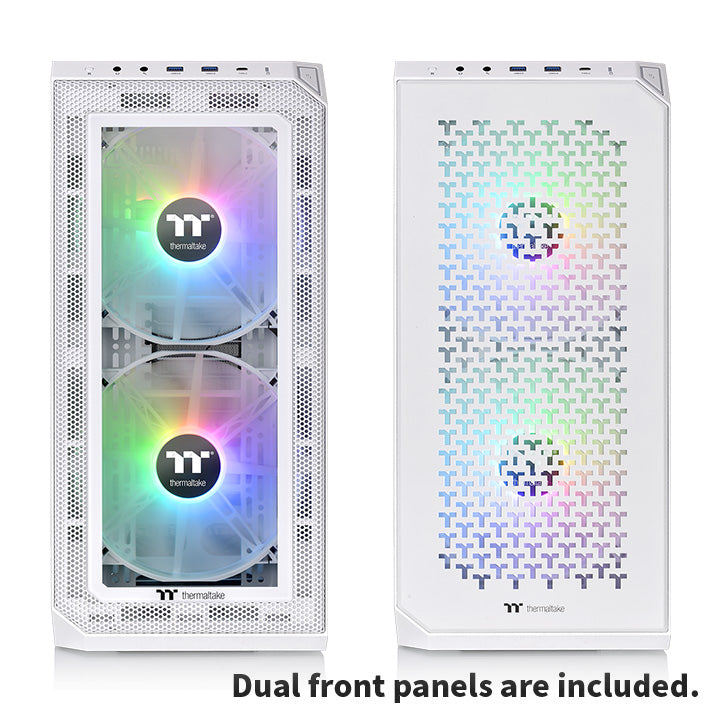

Choose from a Tempered Glass Mesh Panel or a Perforated TT logo Steel Panel

There are two front panels that come in the box: one tempered glass mesh panel for an outstanding look, and the other is a perforated steel panel with TT logo cutouts for better airflow. Two styles for users to choose, display your PC build the way you want

Click to try out different panels

The image is for reference only.

Tempered Glass Window

The 4mm tempered glass panel on the side of the View 300 MX Snow is thicker and more scratch resistant than standard acrylic. It enables you to display and admire all your components in their full RGB glory.

Patented Rotatable PCI-e Slots

Patented rotatable PCI-e slots allow vertical GPU installation. The design, compared with the more traditional 7+2 approach, has little limitation regarding the thickness of the graphics card. Additionally, the enclosed riser cable bracket helps to secure the riser cable at bay (supporting a 180° connector).

The image is for reference only.

Excellent Dust Filtration

There are fine magnetic filters on the right, top, and at bottom to provide excellent protection against dirt and dust from the outside of the case and they are easily removable for cleaning.

Removable PSU Cover

To achieve a more tidy-looking system, the built-in PSU cover is designed to hide unsightly cables with overall good ventilation.

Air Intake and Exhaust

The cooling performance of the View 300 MX Snow is fabulous thanks to two 200mm ARGB PWM fans and one 120mm ARGB PWM fan pre-installed. The Perforated TT logo Steel Panel allows optimal air intake, while the tempered glass mesh panel also provides sufficient air-intake through its mesh edge.

The image is for reference only.

Massive Airflow & Amazing Performance

Thermal images were taken during thermal testing. Thanks to two pre-installed 200mm ARGB PWM fans in the front and one pre-installed 120mm ARGB PWM fan at the rear, we were able to ensure that the View 300 MX comes with massive airflow, which guarantees an amazing cooling performance that the interior temperature stays low and stable at all times.

Idle

Full-load

Test System

Motherboard	ASUS ROG MAXIMUS Z690 HERO
CPU	Intel Core i9 12900K (TDP 125W/OC 241 W)
GPU	GIGABYTE AORUS GeForce RTX™ 3090 XTREME
RAM	TOUGHRAM XG DDR5 32G (16G x 2)
SSD	Plextor PX-128M6V
PSU	Toughpower TF1 1550W-TT Premium Edition
CPU Cooler	TOUGHLIQUID ARGB 360 All-In-One Liquid Cooler

Fans	Front: Pre-installed 200mm ARGB PWM Fans x 2 Rear: Pre-installed 120mm ARGB PWM Fan x 1
AIO	TOUGHFAN 120mm x 3
Front panel	a perforated TT logo steel front panel

Hardware Compatibility

View 300 MX Snow has exceptional expandability. It can support E-ATX motherboards (12”x13”), a CPU cooler with a maximum height of 175mm, VGA clearance up to 400mm in length without a reservoir, and a power supply with a length of up to 200mm. Optimized for excellent cooling capabilities, the View 300 MX Snow can house up to three 140mm or two 200mm front fans, up to three 120mm fans on top, and a radiator of up to 360mm at the front, top and MB side to allow users to build their desired high-end system.

120mm
140mm
200mm

120mm
140mm
240mm
280mm
360mm

Handy I/O Ports

For connectivity, View 300 MX Snow is equipped with two USB 3.0, one USB 3.2 Gen 2 type-c, as well as a headphone and microphone jack.

All-in-One Compatibility List

	120 Series	240 Series	360 Series	140 Series	280 Series	420 Series
Front	●	●	●	●	●	-
Top	●	●	●	●	●	-
Rear	●	-	-	-	-	-
Right(MB Side)	●	●	●	-	-	-

Fan Support List

Fan Compatibility List

	120mm	140mm	200mm
Front	3	3	2
Top	3	2	1
Rear	1	-	-
Right	3	-	-

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE
JRAINBOW Header
MSI
Addressable RGB LED Header
ASRock

Category	Caution
Chassis, ARGB Fan, ARGB AIO	The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate	This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. By having more than two applications open may cause conflicts The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.

P/N	CA-1P6-00M6WN-00
Model	View 300 MX Snow
Series	View
Case Type	Mid Tower
Dimensions	505 x 230 x 506 mm (19.9 x 9.1 x 19.9 inch)
Weight	10.4 kg / 22.9 lbs.
Side Panel	4mm Tempered Glass x 1
Color	Black
Material	SPCC + ABS
Cooling System	Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1
Drive Bays	2 x 3.5”, 4 x 2.5” or 6 x 2.5”
Expansion Slots	7 (Rotatable Patented Design)
Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm 1 x 200mm Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack) Rear: 1 x 120mm
Radiator Support	Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack) Rear: 1 x 120mm
Clearance	CPU cooler height limitation: 175mmVGA length limitation: 280mm(With reservoir) 400mm(Without reservoir) PSU length limitation: 200mm
