Versa H16 TG ARGB Micro Tower Chassis
Versa H16 TG ARGB Micro Tower Chassis
SKU:CA-1Y8-00S1WN-02
Couldn't load pickup availability
Versa H16 TG ARGB Micro Tower Chassis is an m-ATX case with a tempered class left panel and a mesh front panel, and comes with three hydraulic bearing 120mm ARGB Lite Fans at the front and the rear.
-
Design
-
Specification
-
Download
-
How-to Videos

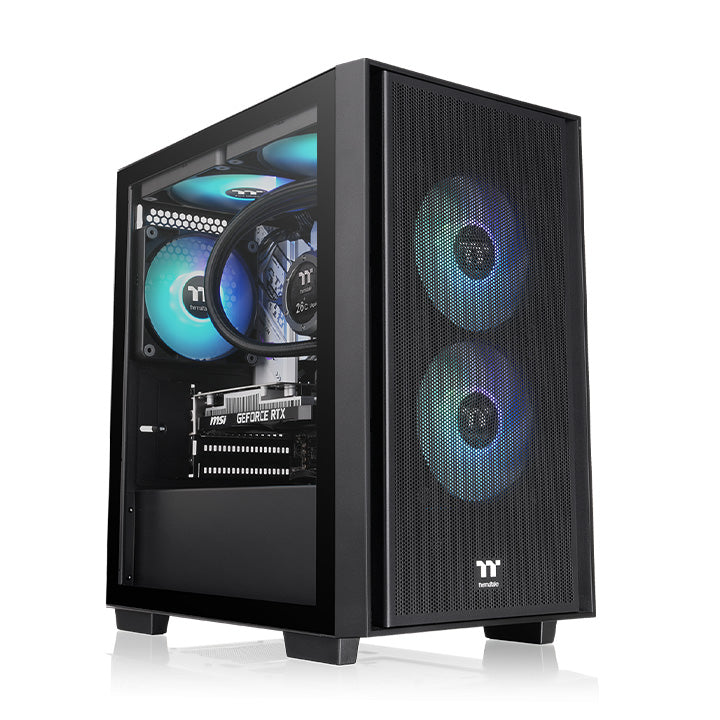

Versa H16 TG ARGB Micro Tower Chassis is an m-ATX case with a tempered class left panel and a mesh front panel, and comes with three hydraulic bearing 120mm ARGB Lite Fans at the front and rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to five 120mm fans can be installed inside the chassis, and up to a 280mm radiator can be placed at the front of the chassis.
- The image is for reference only.

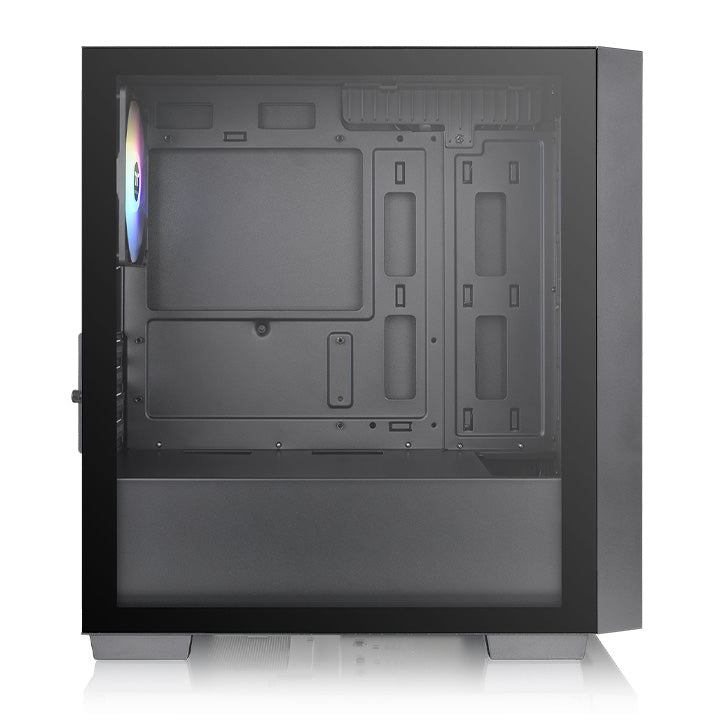

The Versa H16 TG ARGB Micro Tower Chassis features a tempered glass left panel and a mesh front panel. The former provides a nice view of the internal components and the latter provides adequate airflow.
- The image is for reference only.
Providing good cooling support, users can choose to place a 280mm radiator on the front of the Versa H16 TG ARGB Micro Tower Chassis.
- The image is for reference only.

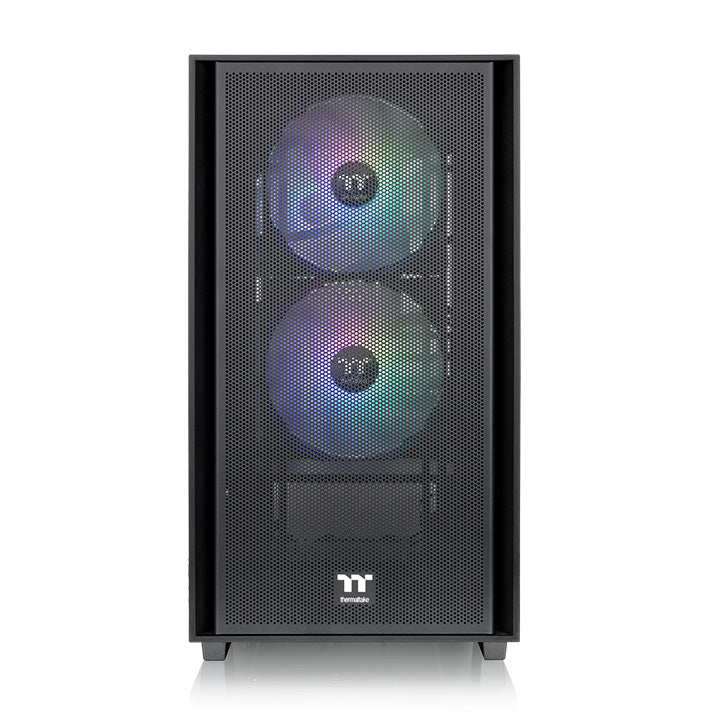

The Versa H16 TG ARGB Micro Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the front and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
The Versa H16 TG ARGB Micro Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
CPU Cooler
Max height 175mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
PSU
Max length 170mm
GPU
Length limitation 330mm
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
Two USB 3.0, one USB 2.0 and HD Audio ports are placed on the top panel to grant direct access when needed.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
|---|---|---|---|---|---|---|
| Front | ● | ● | - | ● | ● | - |
| Top | ● | ● | - | - | - | - |
| Right | - | - | - | - | - | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | |
|---|---|---|
| Front | 2 | 2 |
| Top | 2 | 2 |
| Right | - | - |
| Rear | 1 | - |
| Bottom | - | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE-
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
