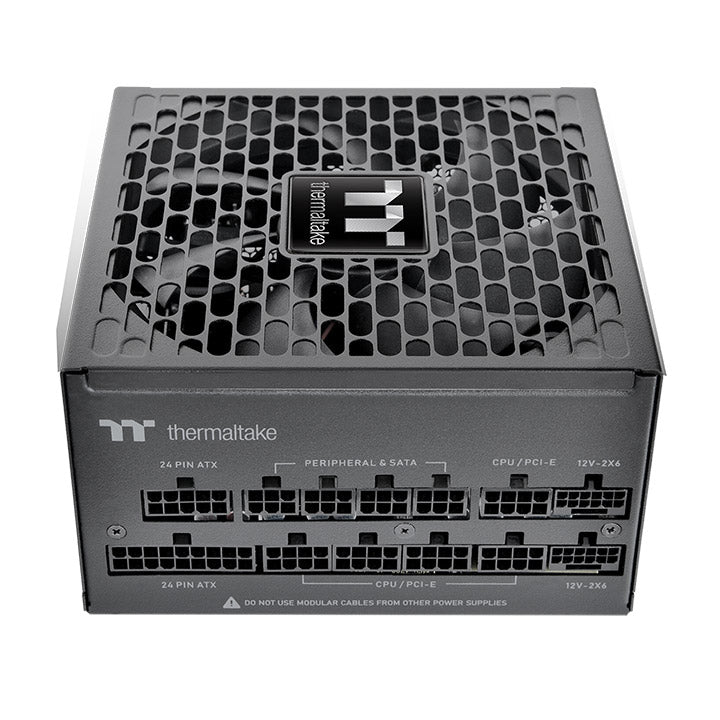

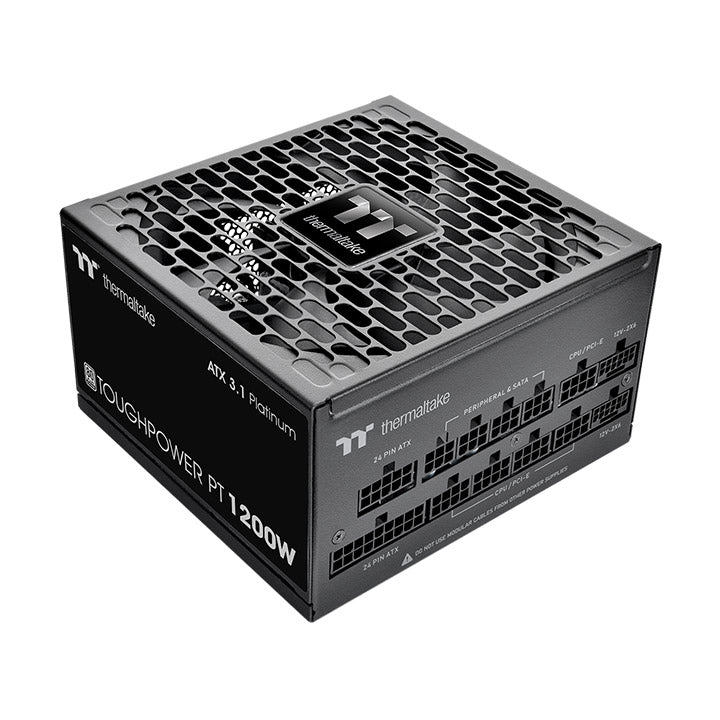

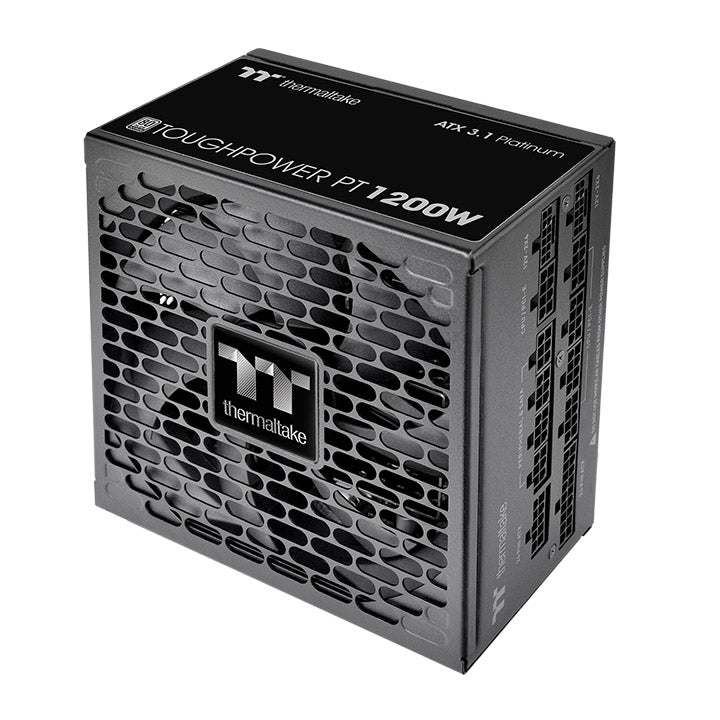

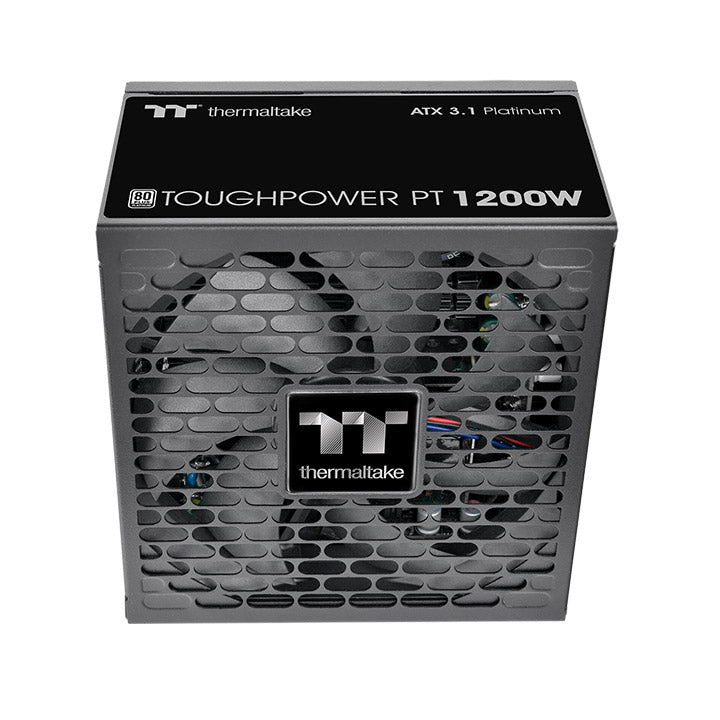

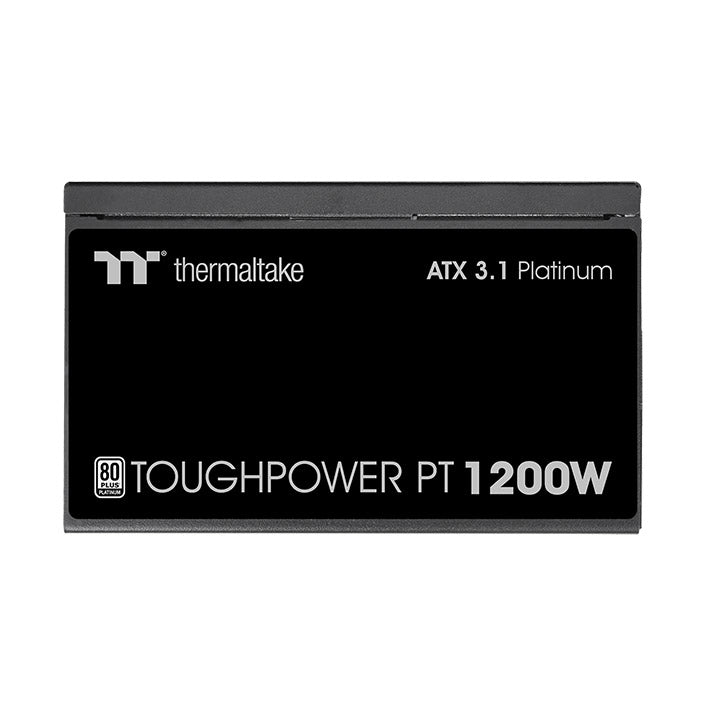

Toughpower PT 1200W

Toughpower PT 1200W

PS-TPP-1200FNFAPU-1

$199.99 USD
$199.99 USD
Sale Sold out

The Toughpower PT 1200W Platinum is ATX 3.1 compatible, 80 PLUS Platinum certified, and supports native PCIe Gen 5.1 (12+4pin) for next-gen GPU power. Delivers 1200W continuous output at 40°C.

It features 100% Japanese capacitors, a strong single +12V rail, an ultra-quiet 135mm hydraulic bearing fan, and a Zero Cable Platform with low-profile modular cables.
View full details
en-GF1_snow_850

Long-Term Durability with Premium Components

Built with 100% high-quality Japanese 105°C electrolytic capacitors, the unit ensures long-term stability and durability, even under high temperatures and continuous heavy loads.

Long-Term Durability with Premium Components

Next-Gen Ready Power

Toughpower PT 1200W delivers reliable, high-efficiency output with Intel ATX 3.1 and PCIe Gen 5.1 (12V-2x6) support. Its robust +12V rail and advanced DC-DC & LLC design ensure next-gen stability and precise power delivery.

Next-Gen Ready Power

Full Modular Layout with Optimized Airflow

Features a fully modular design with low-profile etched black cables for easy installation, better airflow, and a cleaner build.

Full Modular Layout with Optimized Airflow

Built for Intel ATX 3.1 Standard

The Toughpower PT 1200W Platinum fully complies with Intel ATX 3.1 specifications, supporting Intel C6/C7 low power states and ErP readiness for enhanced energy efficiency. It delivers reliable 1200W continuous power at 40°C, meeting strict power timing standards to ensure system stability and compatibility with modern PC builds.

ATX 3.1

ATX 2.0

Total power excursion

2X
1.3X
2X
Total Power Excursion
3X
GPU Power Excursion
Built for Intel ATX 3.1 Standard

PCIe Gen 5.1 Ready

With a native PCIe Gen 5.1 12+4pin connector and low-profile cables, the Toughpower PT 1200W Platinum ensures better airflow and cable management. Its high amperage +12V rail, Japanese capacitors, and DC-DC plus LLC design deliver stable, efficient power with quiet 135mm fan cooling.

PCIe 12V-2x6 connector illustration

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

PCIe Gen 5.1 Ready

Minimal Noise, Maximum Clarity

A 135mm hydraulic bearing fan delivers quiet, efficient cooling even under load. With fully modular low-profile cables and a Zero Cable Platform, it improves airflow and keeps your build clean and organized.

Minimal Noise, Maximum Clarity

Enhanced +12V Rail and Superior Circuit Design

The Toughpower PT 1200W Platinum delivers stable 1200W power via a strong single +12V rail. Its advanced DC-DC and LLC circuitry ensure precise voltage regulation and high efficiency.

AC INPUT

Input Voltage: 100-240Vac
Input Current: 15 - 10A
Frequency: 50 - 60Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max Output Current 20A 20A 100A 0.3A 3.0A
Max Output Power 100W 1200W 3.6W 15W
Total Power 1200W
Enhanced +12V Rail and Superior Circuit Design

Industry-Grade Safety Protections

Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

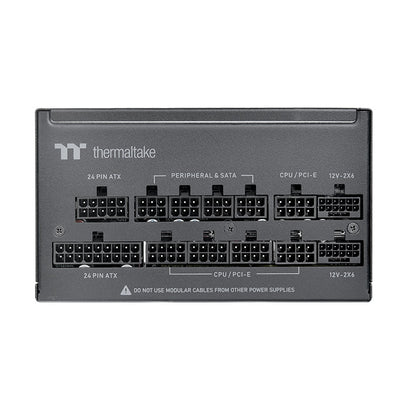

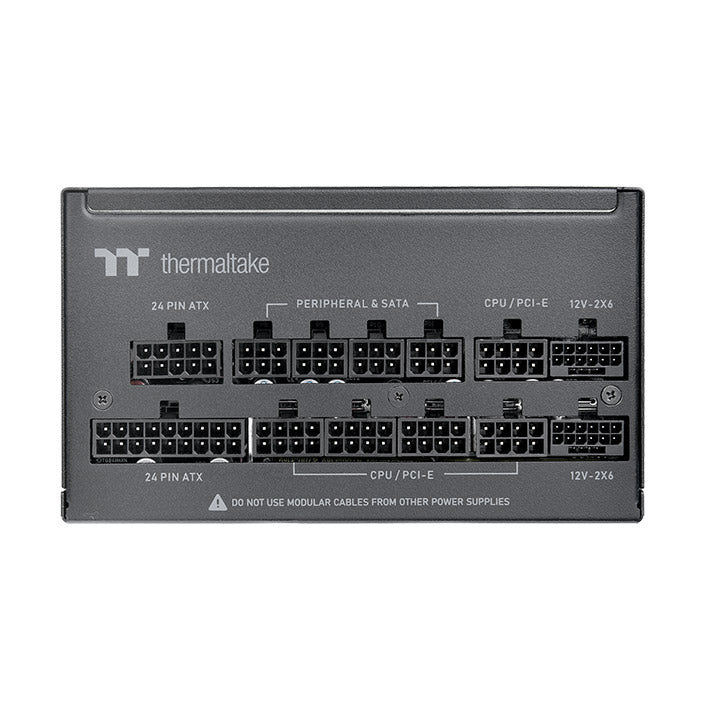

Space-Saving Etched Cable Design

Low-profile etched black cables simplify routing, reduce clutter, and enhance airflow. The fully modular layout and Zero Cable Platform allow for a cleaner, more efficient system build.

Space-Saving Etched Cable Design
Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin)		 X 1 Main Power (20+4Pin) cable illustration X 1 550mm
ATX 12V
(4+4Pin)		 X 2 ATX 12V (4+4Pin) cable illustration X 2 700mm
PCIe
(6+2Pin)		 X 5 PCIe (6+2Pin) cable illustration (single) X 1 600mm
PCIe (6+2Pin) cable illustration (daisy chain) X 2 600mm+150mm
PCIe
(12+4Pin)
600W		 X 2 PCIe (12+4Pin) 600W cable illustration X 2 600mm
SATA
(5Pin)		 X 6 SATA (5Pin) cable illustration X 2 450mm+150mm+150mm
Peripheral
(4Pin)		 X 4 Peripheral (4Pin) cable illustration X 1 450mm+150mm+150mm+150mm

80 PLUS Platinum Certified

Certified for 80 PLUS Platinum with up to 92% efficiency, this unit delivers 1200W continuous output at 40°C. It ensures reduced power loss and optimized energy use, ideal for high-performance and energy-conscious builds.

80 PLUS Platinum Certified
P/N PS-TPP-1200FNFAPU-1
Watts 1200W
Max Output Capacity 1200W
Color Black
Dimensions 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 15-10A Max.
Input Frequency Range 50Hz - 60Hz
Input Voltage 100-240V~
Operating Temperture 0°C to + 40°C
Operating Humidity 20% to 90%
Storage Temperture -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 135mm FDB fan
Efficiency Meet 80 PLUS® Platinum at 115Vac input.
MTBF 100
Safety Approval CE(UKCA)/FCC/ICES/CB/TUV/cTUVus/CCC/BSMI/LVD/RCM/BIS
PCI-E 6+2PIN 5
PCI-E 12+4PIN 2 (600W)
