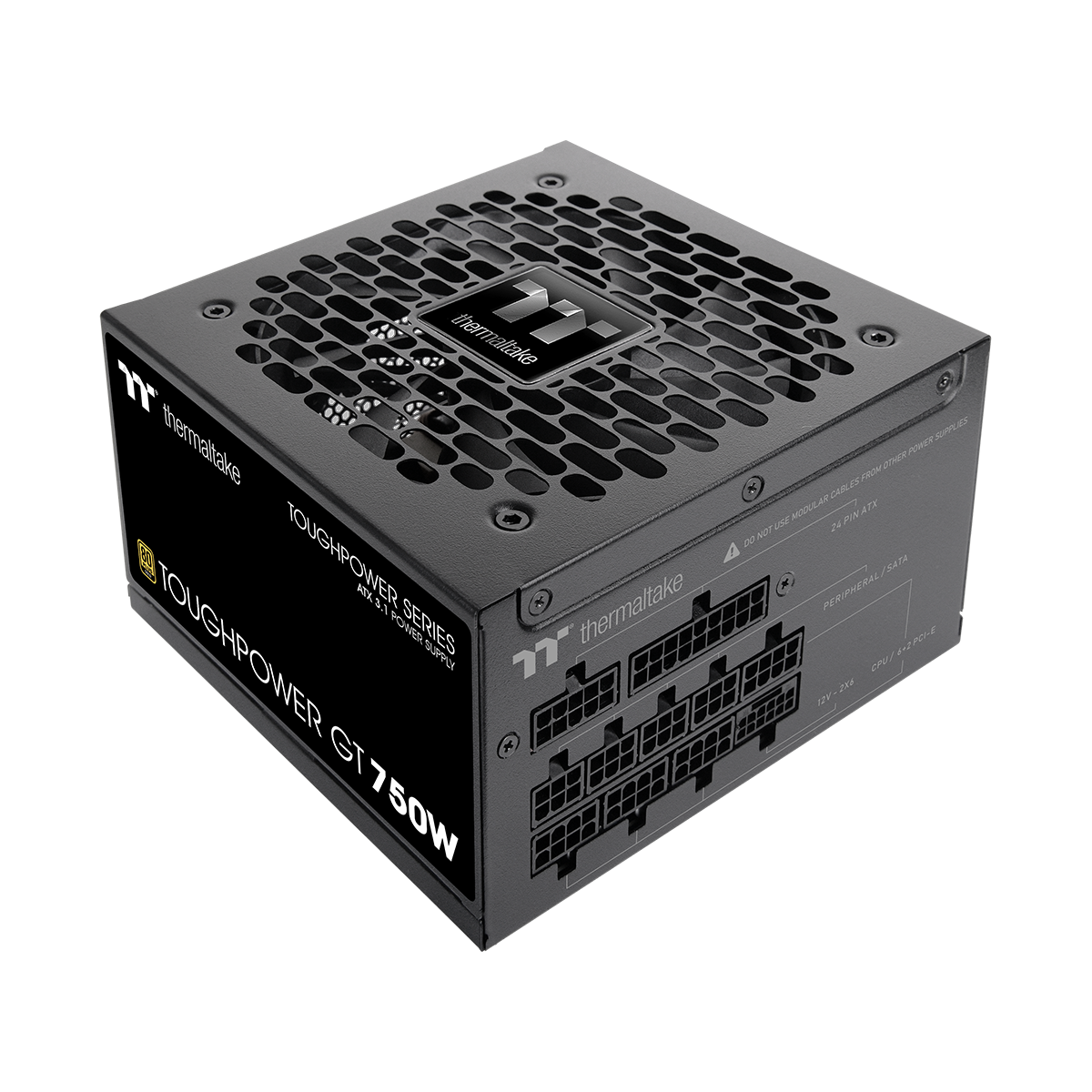

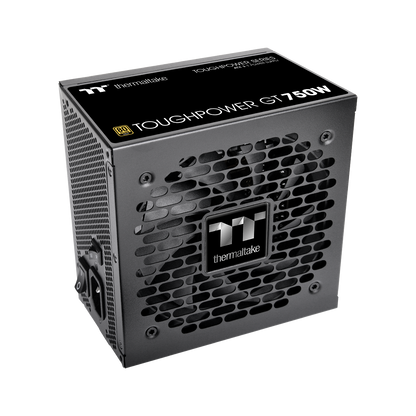

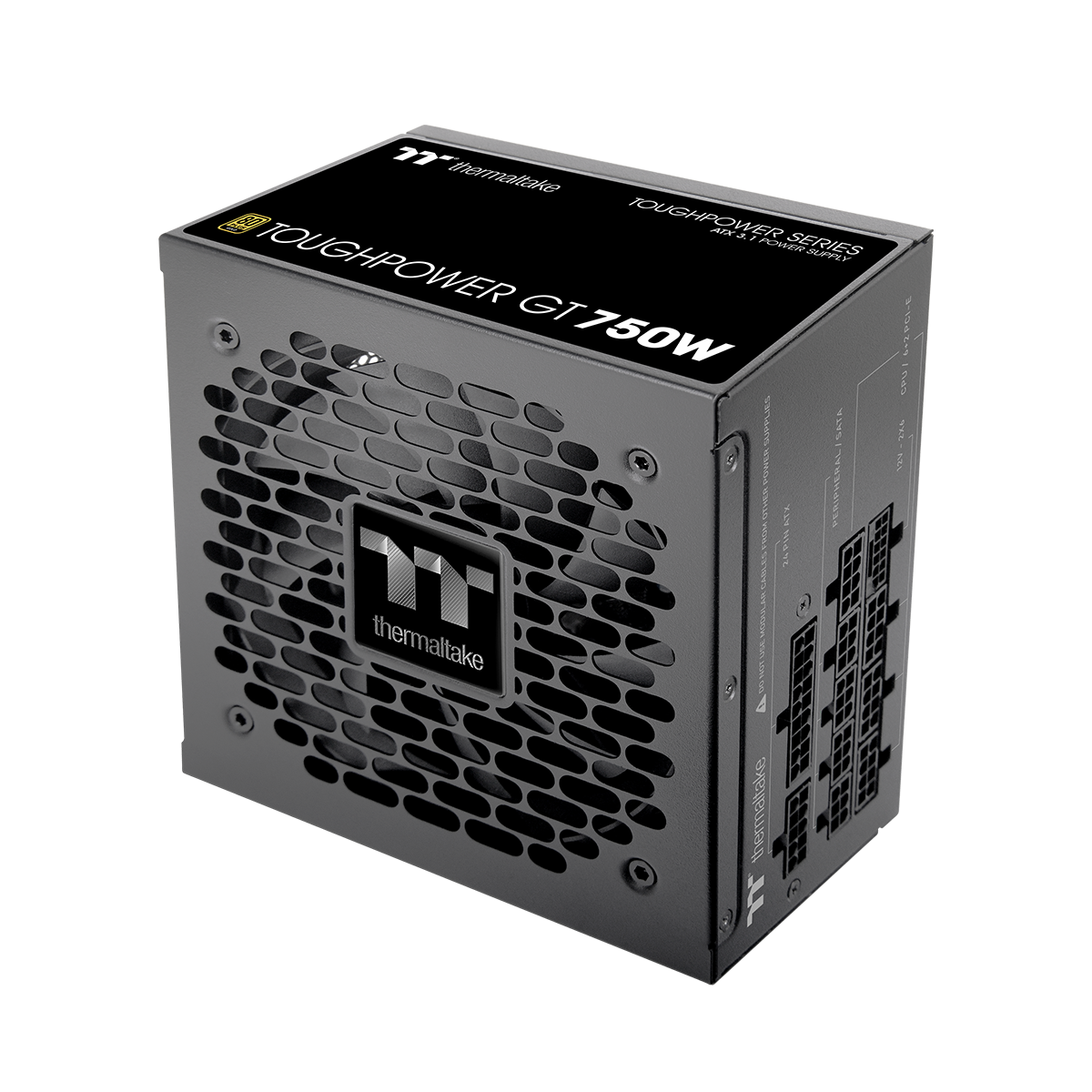

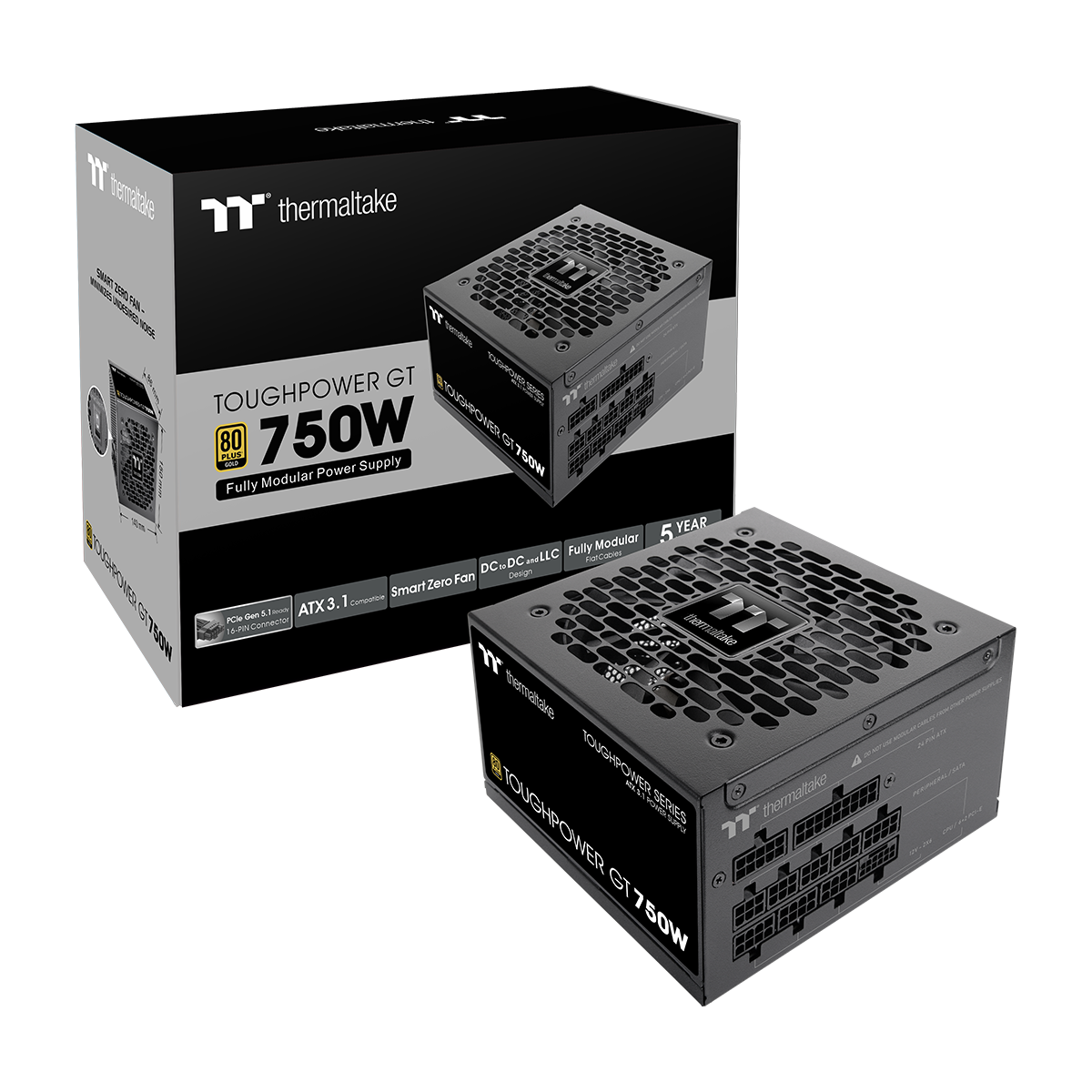

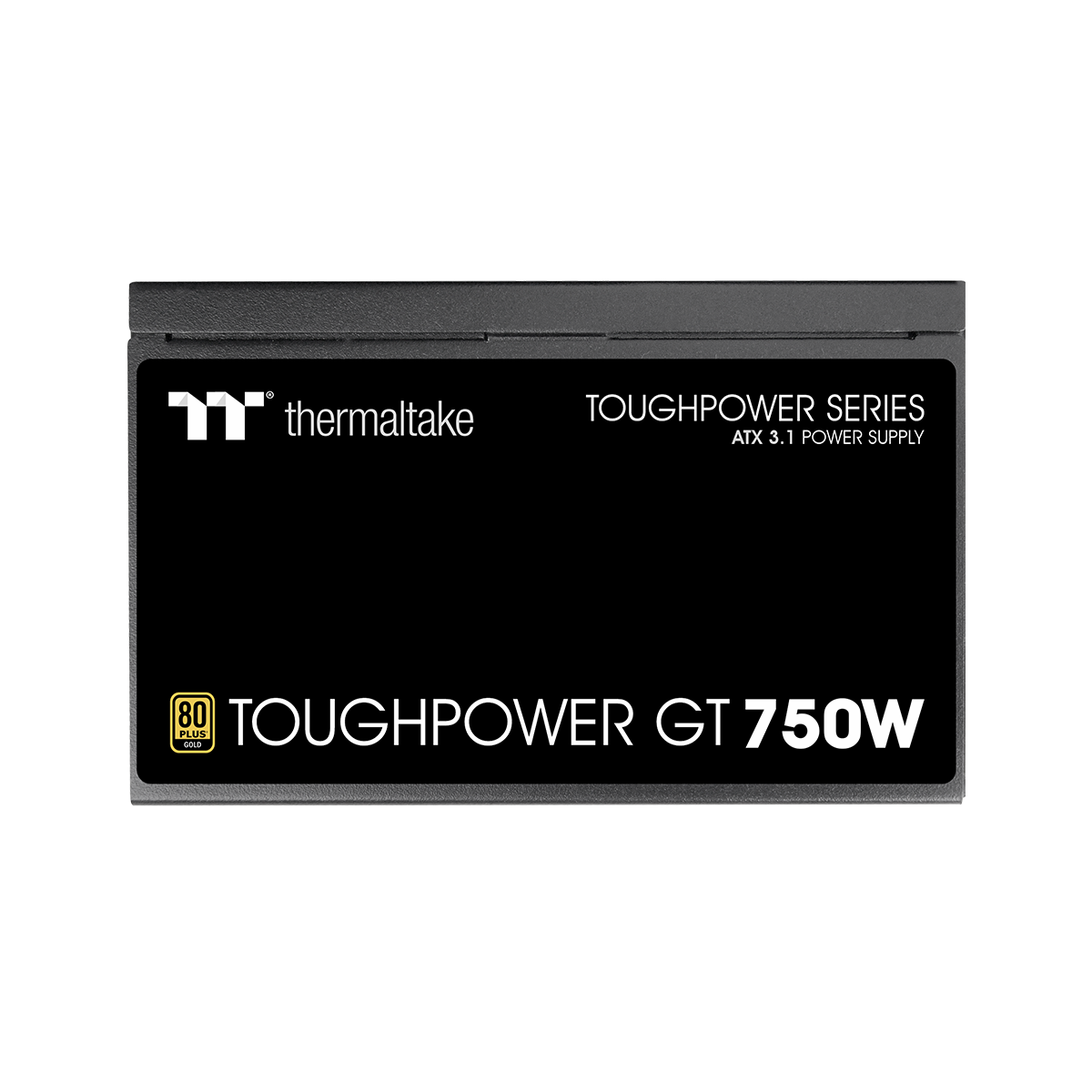

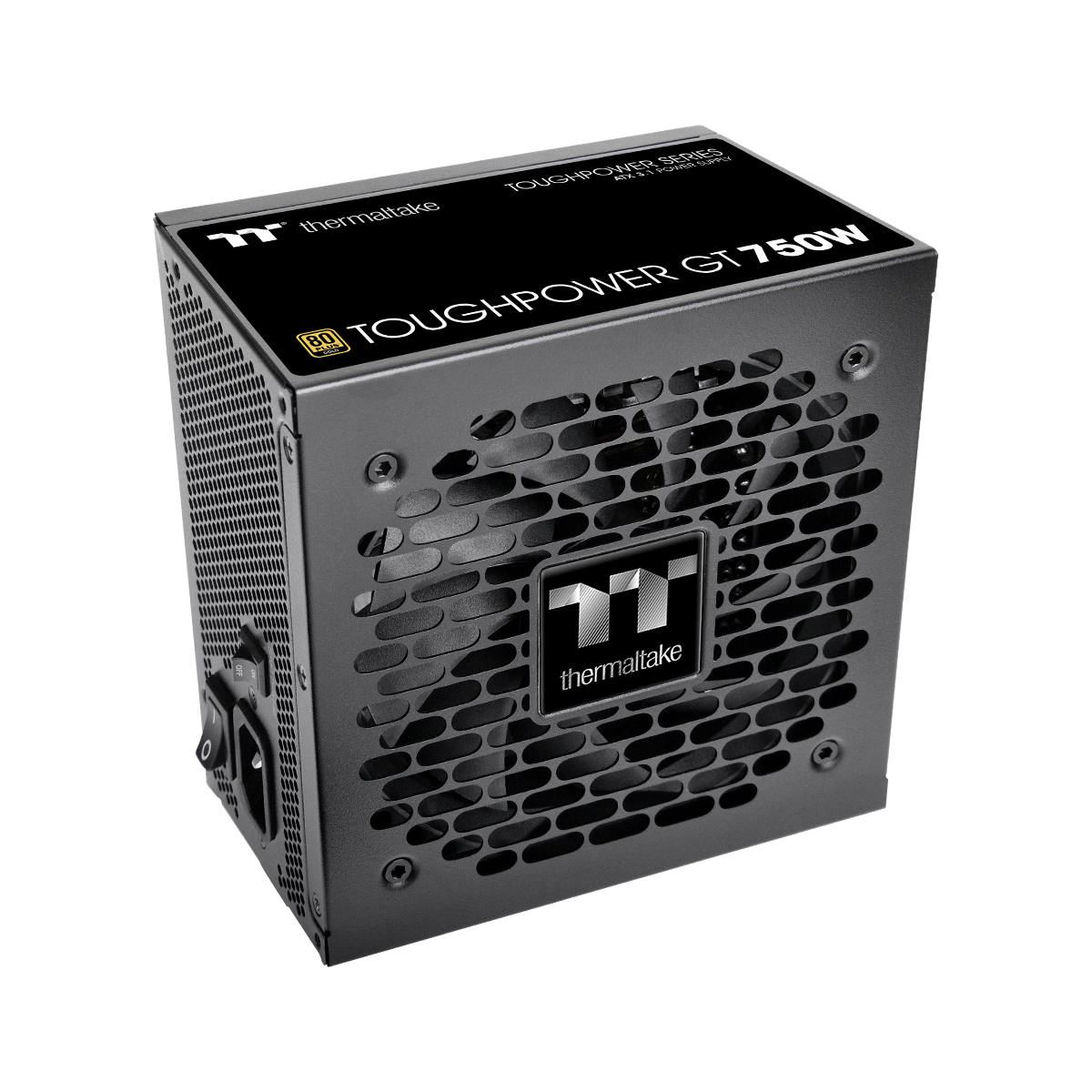

TOUGHPOWER GT 750W ATX 3.1

TOUGHPOWER GT 750W ATX 3.1

SKU:PS-TPT-0750FNFAGU-3

Regular price $99.99 USD
Regular price Sale price $99.99 USD
Sale Sold out

80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2x6 connector.
View full details
  • Design
  • Specification
  • Download
  • How-to Videos

Toughpower GT Series

The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT series meets the needs of value-oriented users seeking a new power supply with reliable performance.

ATX 3.1 Ready

Toughpower GT series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.

ATX 3.1

ATX 2.0

Total power excursion

2X
1.3X
2X
Total Power Excursion
3X
GPU Power Excursion

PCIe Gen 5.1 Ready

Toughpower GT series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT 750W can deliver up to 300W for PCIe 12+4pin graphics cards.


Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.

12+4pin Connector

Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan

Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.

High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT

Input Voltage: 100 - 240V~
Input Current: 10A Max.
Frequency: 50Hz-60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

Max Output Current

20A

20A

62.5A

0.3A

3A

Max Output Power

100W

750W

3.6W

15W

Total Power

750W

Fully Modular Low-Profile Cables

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin)
X 1 X 1 550mm
ATX 12V
(4+4Pin)
X 2 X 2 700mm
PCIe
(6+2Pin)
X 4 X 2 600mm+150mm
PCIe
(12+4Pin)
300W
X 1 X 1 600mm
SATA
(5Pin)
X 6 X 2 450mm+150mm+150mm
Peripheral(4Pin) X 4 X 1 400mm+150mm +150mm+150mm

Built-in Industrial Grade Protection

To protect the hardware, Toughpower GT series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

80 PLUS Gold Certified

Toughpower GT series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.
