No matter the build, We’ve got you covered
The TH V2 ARGB Series is now ready for all types of builds; the series has three 120mm fan models, including the TH 120/ 240/ 360 V2 ARGB, and two 140mm fan models, including TH 280/ 420 V2 ARGB.
New Version, New Design
TH V2 ARGB was given an industrial look to freshen up the 360-degree rotational cap. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks.
Sync with CT140 ARGB Fans
Developed from the CT fan series, this model uses three CT140 ARGB fans with enhanced fan speed, and you can also match with some of our chassis’ pre-installed fans to unify your fans in your build!
These fans have 1800 RPM and provide an 84.32 CFM airflow with 3.02 mm-H2O static pressure while maintaining 34.7 dB-A noise levels.
Enhanced Cooling Surface With A Compact Design

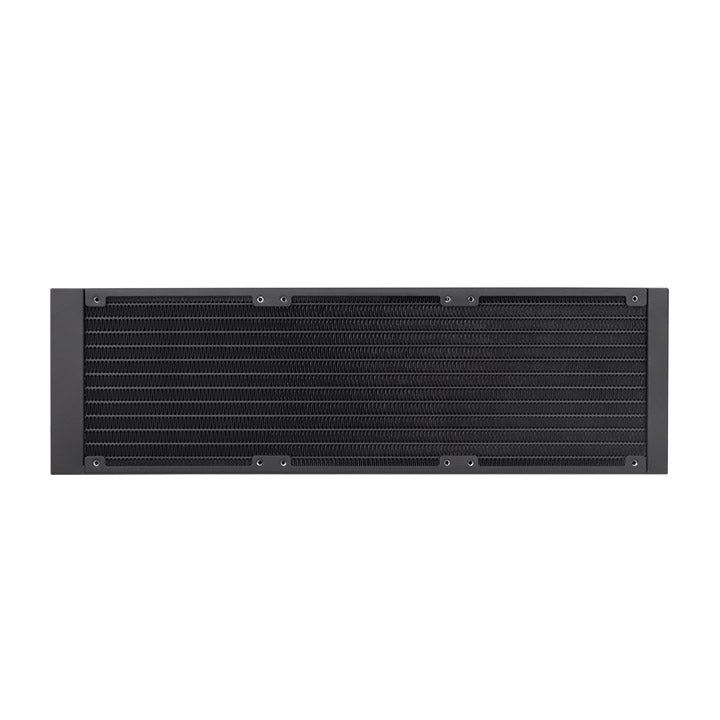

The TH V2 ARGB Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.
Less Cable, Less Mess
The new cable-integrated daisy-chain design allows the
fans to be directly connected, so it minimizes demands of 4-pin PWM and 3-pin ARGB ports on your motherboard and shortens the cable length between the fans. We’ve also included one 900mm PWM cables and one 900mm ARGB cable for you to easily manage your cables while
assembling your build.
Keeping Your Cables in Place
You might have experienced easily detached 5V ARGB cables when you assemble your builds. Worry not; this 5V ARGB Connector Clip can guarantee that the cables are correctly connected and won’t get loose in unexpected conditions.
Keep it COLD with Copper
The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.
Any CPU Can Be the Right CPU
The package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms, including the latest Intel LGA1700 and AMD AM5 CPUs.
Compatibility list:
Intel: LGA 2066/2011/1700/1200/1156/1155/1151/1150
AMD: AM5/AM4/AM3+/AM3/AM2+/AM2
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
Category | Caution |
Chassis, ARGB Fan, ARGB AIO |
|
RGB Memory, VGA Waterblock, Distro Plate |
|
