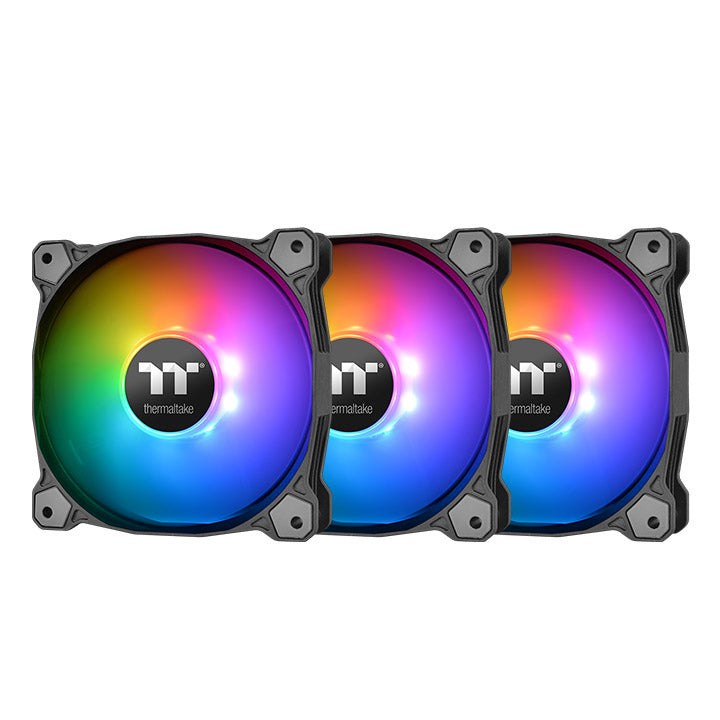

Pure Plus 14 LED RGB Radiator Fan TT Premium Edition(3-Fan Pack)
Specially designed for mainstream market,Thermaltake Pure Plus 14 RGB features compression blades,hydraulic bearing,and a 16.8 million colors LED ring with 9 addressable LEDs.Supporting Thermaltake’s patented TT RGB PLUS Software and AI interactive voice control,the Pure Plus 14 RGB lights up your system without sacrificing performance!
TT RGB PLUS
TT RGB PLUS Ecosystem is the intelligent
lighting system for PCs that combines the most advanced addressable LED lighting
with Thermaltake’s patented TT RGB PLUS Software.TT RGB PLUS ecosystem provides
nearly unlimited possibilities for playing with colors,synchronizing lights to
games,music,CPU temperatures or other TT RGB PLUS products,including case
fans,CPU/VGA waterblocks,AIO CPU coolers,PSUs,LED strips and peripherals.The
patented software allows users to change the light
modes,colors,speeds,brightness,fan speeds,and even supports AI voice control in
iOS and Android devices.
Learn
More
Patented TT RGB PLUS Software&App
Monitor the fan performance,adjust the fan
speeds,and customize the lighting effects for Thermaltake Plus RGB liquid
cooling products with the patented TT RGB PLUS Software and an exclusively
designed mobile app.Choose a function from below and scroll down to read the
details.
Taiwan Patent:105216989
Learn MoreDownload TT RGB Plus Software
*Compatibility:
-For
desktop:Requires TT RGB PLUS Software 1.1.5 version or later.
-For
iOS:Requires iOS 10.0 or later.
-For Android:Requires Android 6.0.0 or later
with screen resolution 1920 x 1080.
SyncALL,Say“Hello TT”Thermaltake AI Voice Control
Talking to TT RGB PLUS App is an easier,faster way to
set lights for your systems.You can ask it to turn the lights on or off,switch
lights modes,dim the lights,change light colors,or adjust lights speeds or fan
speeds.
Download
Voice Input Command
-For desktop:Requires TT RGB PLUS Software 1.1.5
version or later.
-For iOS:Requires iOS 10.0 or later.
-For Android:Requires
Android 6.0.0 or later with screen resolution 1920 x 1080.
Profiles
Conveniently control all devices and customize the lights at the same time by setting up to five profiles for each controller.Each controller your system connected is displayed at the top left of the interface for you to quickly access.Within each profile,you can check which device is set to what operating mode and lighting effect.You can even“SAVE”and apply the settings to other controllers your system is running.
Fan Speeds
Simply drag the slider
bar to adjust your fan speed RPM on a dedicated control
panel.The software is also included a number of preset fan
modes that allow you to set the fans to‘Silent Mode’where
the RPM performs between a 500–1500 RPM range,or‘Performance
Mode’which operates and dynamically adjusts all the way up
to 1500 RPM.Besides running at the optimal RPM range,you can
customize the speed by disabling PWM.
Fan Alert
The software offers real-time fan warning alerts when performance operating issues have emerged.The control panel of the failed fan will be grey out,so you can quickly identify which fan is causing issues.
Color Palette
Immediately personalize
your lighting with the recommended color palette.You can
change colors and brigthness for the LED ring which featrues
16.8 million colors,or 12 single LEDs where the lights can
be adjusted individually.You also can let each LED display a
specific color.Press”Color”,enter the decimal color
coded,and then save it.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Copy Color–Seamlessly
transfer lighting effects of the first
fan across to other fans.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Full Lighted–A static
lighting with your color
choice,including RGB colors and single
color.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Sound Control–Sync
lights with your favorite music that is
imported from your PC,and see how they
react to the beat.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Flow–Directional RGB
colored flow across the individual LED
of the ring.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
RGB Spectrum–A seamless
transition through the entire 16.8
million RGB color spectrum.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Ripple–Lights ripple
out across the entire fan with your
choice of 16.8 million colors.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Blink–Lights keep
flashing on and off with single color or
RGB colors.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Pulse–A slow fade in
and fade out with your color choice.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Wave–A RGB wave flows
across the entire fan.
Light Modes
Light Modes Apply one of the present
light modes that allow you to switch
between different lighting schemes along
with three“Color modes”(RGB,Single and
Off)and four“Light
Speeds”(Slow,Normal,Fast and
Extreme).
Cross–Lights flow in
opposite directions with single color or
RGB colors.
Thermal
Make your CPU temperature visible,and
track it easily.The software has a
built-in temperature sensor that detects
and displays changes in CPU temperature
in real-time.The LED ring offers an
additional visual cue.The color
corresponds to the temperature,ranging
from blue(CPU temperaure≦40℃)to Red(CPU
temperature≧65℃).
Thermal
Make your CPU temperature visible,and
track it easily.The software has a
built-in temperature sensor that detects
and displays changes in CPU temperature
in real-time.The LED ring offers an
additional visual cue.The color
corresponds to the temperature,ranging
from blue(CPU temperaure≦40℃)to Red(CPU
temperature≧65℃).
16.8 Million Colors LED Design
Featuring 9 addressable LEDs,great light
coverage,and uniform color and brightness,the built-in LED ring can paint your
build with 16.8 million colors.
Digital Lighting Controller
The controller is designed with a DIP switch on
the back.Hence,you can set a number for each controller easily.You can add up to
5 devices to one lighting controller and up to 16 controllers to the
software.The controller and the coding guide are included in all
packs.
*It is recommended to connect up to 3 controllers on one
peripheral cable(Molex)only.
9 Fan Blade Design
140mm fan with unique 9 blades design is engineered to generate higher airflow without compromising on ultra-silent operation.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality,friction-reducing substance,which lowers operation noise while improving thermal efficiency.The seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80%protection coverage for all corners.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW
1.0
LEARN MORE
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.
