Pacific PR32-D5 Plus
Pacific PR32-D5 Plus
360° Rotary Cap
The 360-degree rotary cap allows users to adjust the positions of G 1/4 thread ports even after it mounts to the chassis, providing more flexibility during water-cooling builds.
Shining through the rotary cap is 12 addressable LEDs allowing users to experience numerous lighting effects and 16.8 million color combinations through the TT RGB Plus software.
View the light show
Light Mode : Static

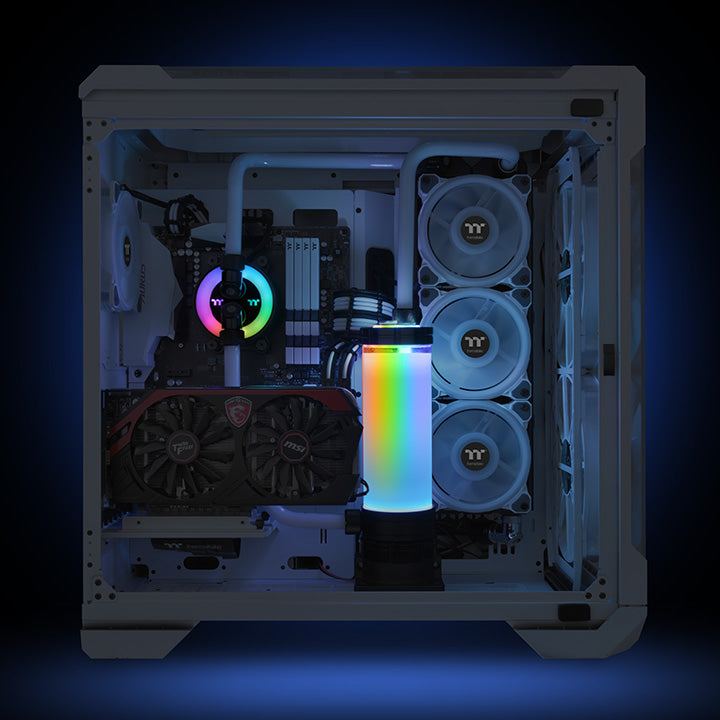

Great Visual Aesthetic

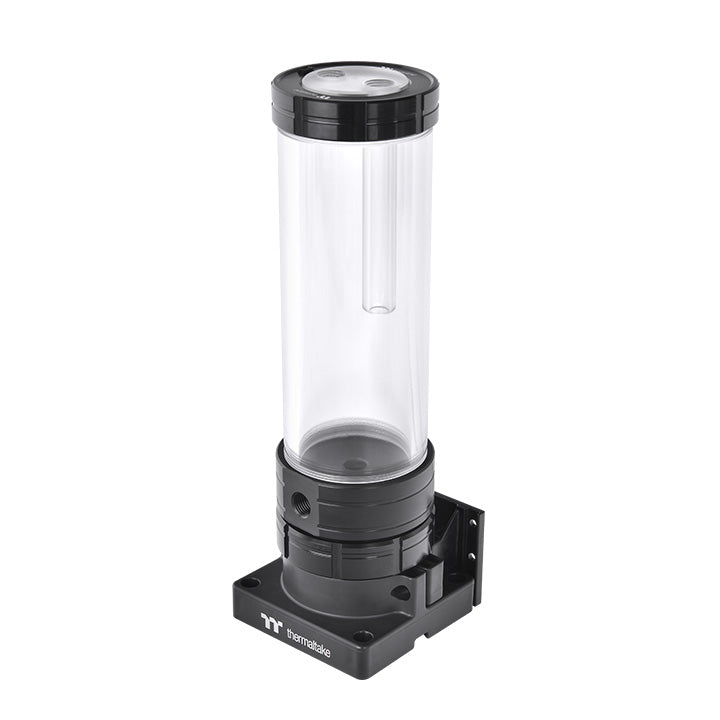

The 267 mm tall reservoir has a capacity of 400 ml, which can bear a maximum pressure of 50 PSI. Being Thermaltake’s largest reservoir in the collection, it indeed creates an excellent visual effect.
The powerful pump head can push the coolant to reach up to 15 feet high at its maximum speed and provide a flow rate of 1135 liter per hour. 5 Level Speed control allows users to manually control the pump's speed, switching the pump speed given the computer's loading.
Multiple Installation Option

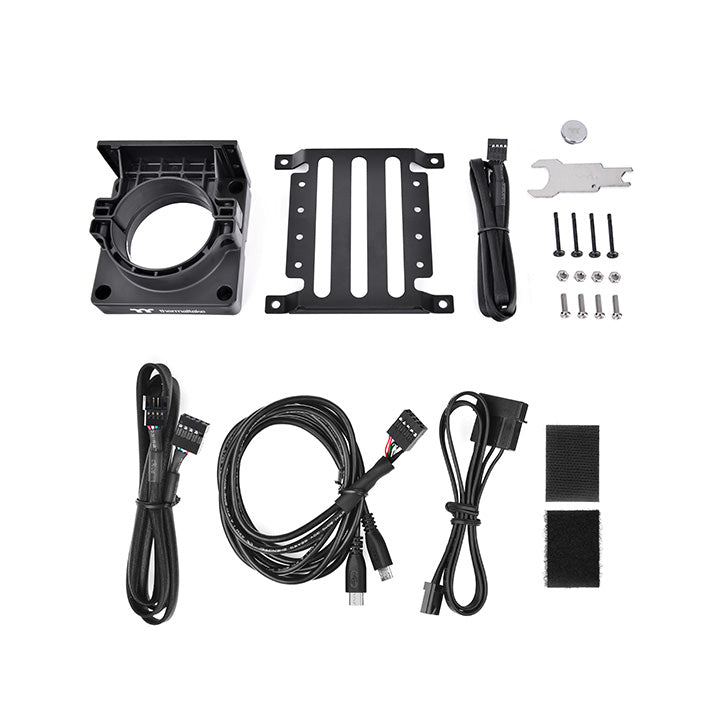

Besides the standard reservoir and pump stand, the package also includes a bracket that allows users to install Pacific PR32-D5 Plus on a fan, allowing users to enjoy water cooling even with small spacing.
TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Thermaltake recommends the following steps to be taken before
using the Pacific series radiators and water blocks
- To ensure a clean loop, flush and rinse your radiators and water blocks with distilled water prior to use.
- Do not use tap water or distilled water as your coolant, it may harm your loop and reduce performance.
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while protecting the entire liquid loop from corrosion.
- Before storing your water cooling components, please clean, rinse and dry. This will ensure a longer lifespan for your components.
Thermaltake recommends the following steps to be taken after
completing your water loop setup
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.
- Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the pump
- If necessary tilt the system slightly from side to side to bleed the air out of the loop.
- Place some paper towels under fittings and joining points to test for leaks.
- Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop.
- Before starting, flush out your system correctly to prevent any coolant or unwanted particles sticking to your tubes, radiators and other cooling components.
- Coolant might fade over time.
