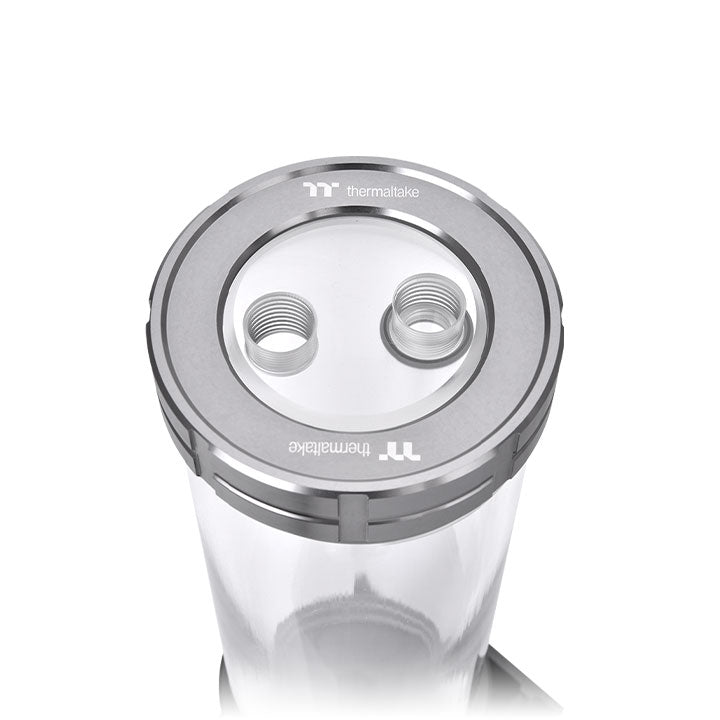

360° Rotary Cap
The 360-degree rotary cap allows users to adjust the positions of the G 1/4 thread ports even after it has been mounted to the chassis, providing more flexibility while creating water-cooling builds.

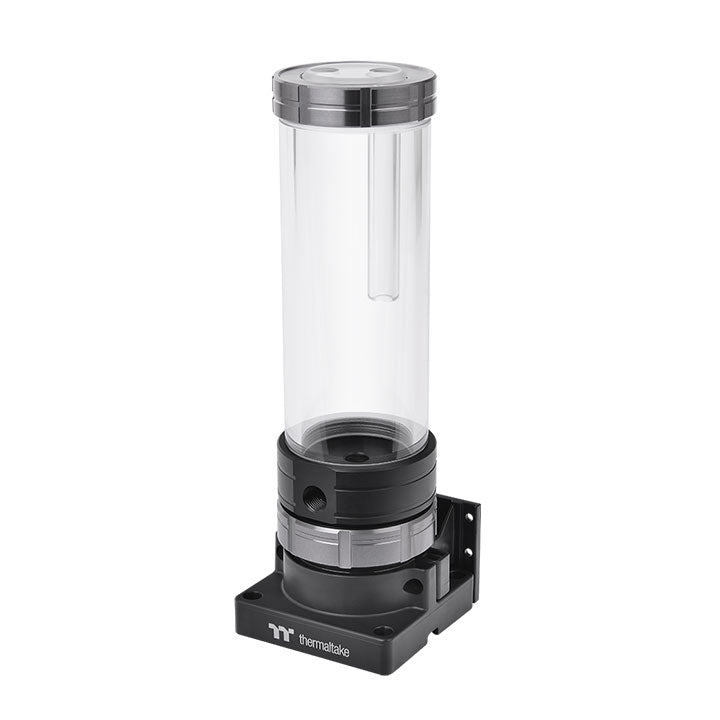

Great Visual Aesthetics
The 267 mm tall reservoir has a capacity of 400 ml, which can bear a maximum pressure of 50 PSI. Being Thermaltake’s largest reservoir in the collection, it indeed creates an excellent visual effect.
The powerful pump head can push the coolant up to 15 feet high when set at its maximum speed, providing a flow rate of 1135 liters per hour. 5 Level Speed control allows users to manually control the pump's speed, switching the pump speed depending on the computer's load.
Multiple Installation Options

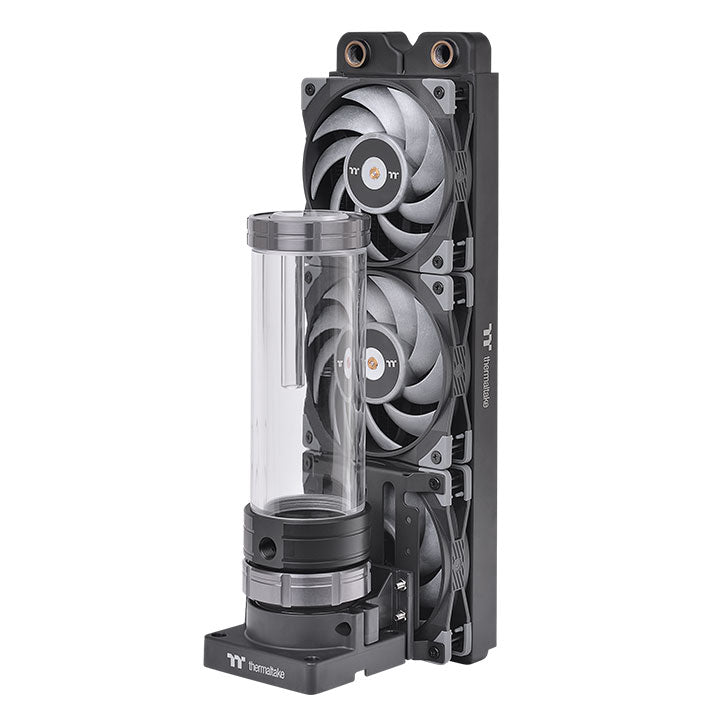

Besides the standard reservoir and pump stand, the package also includes a bracket that allows users to install the Pacific PR32-D5 on a fan, allowing users to enjoy water cooling even with small spacing.
Thermaltake recommends the following steps to be taken
Pacific series radiators and water blocks
- To ensure a clean loop, flush and rinse your radiators and water blocks with distilled water prior to use.
- Do not use tap water or distilled water as your coolant, it may harm your loop and reduce performance.
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while protecting the entire liquid loop from corrosion.
- Before storing your water cooling components, please clean, rinse and dry. This will ensure a longer lifespan for your components.
Thermaltake recommends the following steps to be taken after completing your water loop
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.
- Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the pump
- If necessary tilt the system slightly from side to side to bleed the air out of the loop.
- Place some paper towels under fittings and joining points to test for leaks.
- Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop.
- Before starting, flush out your system correctly to prevent any coolant or unwanted particles sticking to your tubes, radiators and other cooling components.
- Coolant might fade over time.
|Dimensions||74.8 (L) x 74.8 (W) x 267 (H)|
|Material||AL + POM + PMMA|
|Maximum Head||15 feet (4.5m)|
|Maximum Flow Rate||1135 L/h|
|Maximum Pressure||50 PSI|
|Power Spec||Power Input:
|Pump Spec||Pump Speed:
P1: 1,800 RPM
P2: 2,550 RPM
P3: 3,300 RPM
P4: 4,050 RPM
P5: 4,800 RPM
|Screw Thread||G 1/4|

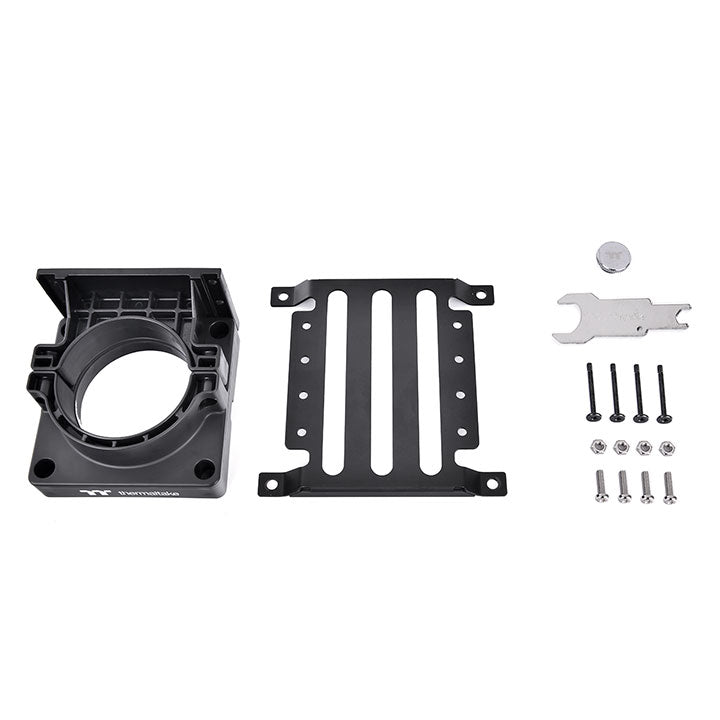

|Parts||1. Stopper *1 (G 1/4 )
2. Bracket *1
3. Clip *1
