Level 20 GT ARGB Black Edition
Level 20 GT ARGB Black Edition
SKU:CA-1K9-00F1WN-03
Couldn't load pickup availability
Level 20 GT ARGB Black Edition is an E-ATX full tower chassis that comes with four 5mm thick tempered glass windows and two preinstalled 200mm 5V ARGB LED front fans and one 140mm rear fan.
-
Design
-
Specification
-
Download
-
How-to Videos
Thermaltake
Level 20 GT ARGB Black
20 Years of Innovations
The Level 20 GT ARGB Black Edition is the premium full tower synchronized with motherboard in the level 20 range. Level 20 GT ARGB Black Edition features four tempered glass panels with locking hinged doors, E-ATX motherboard support, patented PCI-E slot design and a removable power cover.
The Level 20 GT ARGB Black Edition comes with two preinstalled 200mm 5V ARGB LED front fans and one 140mm rear fan. The front fans are addressable to deliver 16.8 million-color RGB illumination and unparalleled ventilation. This model comes ready to sync with RGB capable motherboards from Asus, Gigabyte, MSI and ASRock. The Level 20 GT ARGB Black Edition takes our latest case innovations and wraps them in an ultra-modern style that’s utterly unique in the case market today. Stand out from the crowd with the Level 20.
- The image is for reference only.
- Two 200mm 5V addressable ARGB LED front fans and one 140mm rear fan are included.
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
- The image is for reference only.
- Two 200mm 5V addressable ARGB LED front fans and one 140mm rear fan are included.
Preinstalled with two 200mm 5V ARGB LED front fans featuring hydraulic bearing, 9 addressable LEDs and 16.8 million-color illumination to guarantee high airflow and custom system designs to show off your PC design skills.
The 5V ARGB LED fans can be controlled using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options.
- Wave
Mode 1
- Flow
Mode 2
- RGB
Mode 3 (Single Color)
- Radar
Mode 4~10 (Red, Yellow, Green, Cyan, Blue, White, Purple)
- Breath
Mode 11~18 (RGB, Red, Yellow, Green, Cyan, Blue, White, Purple)
- Full Lighted
Mode 19
- Single Color
Mode 20~26 (Red, Yellow, Green, Cyan, Blue, White, Purple)
- Light Off
Mode 27
- Long press on RGB button for 3 seconds , fans will blink twice which now are controlled by MB software, and vice versa.
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.
-
Aura Addressable Header
-
Digital Pin Header
-
JRAINBOW Header
-
Addressable RGB LED Header

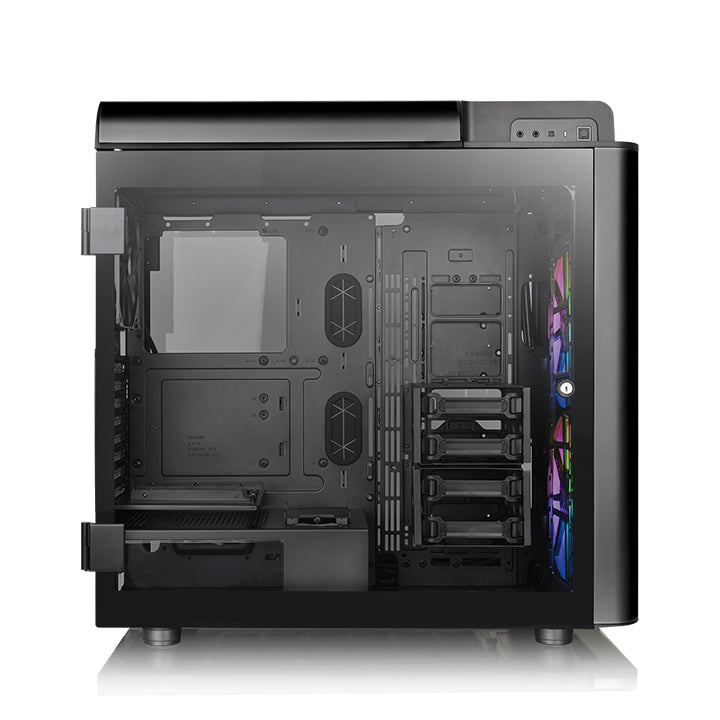

The Level 20 GT ARGB Black Edition features tempered glass panels on the front, top and both sides. The left and right hinged doors are also equipped with smart lock security systems to secure the inner components of your case.
The Level 20 GT ARGB Black Edition is designed with a removable power cover, which can be used to organize unused cables to make for a tidy-looking system.
With Patented Rotational PCI-E slots, you can choose the way you want to display graphic cards vertically which helps you gain flexible space for system.
US Patent: 16/011,664
Taiwan Patent: M569542
China Patent: 201821058706.3
- The image is for reference only.
- Two 200mm 5V addressable ARGB LED front fans and one 140mm rear fan are included.

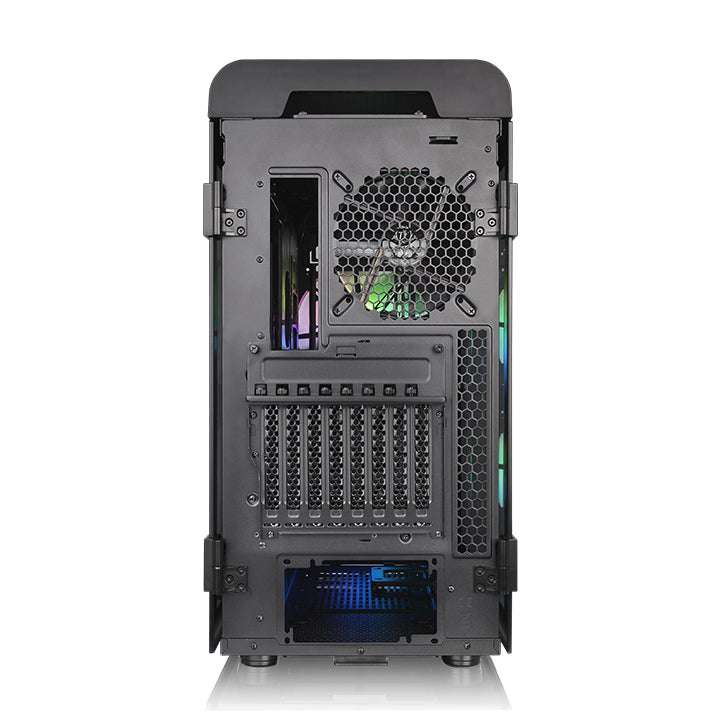

Whether you’re building a custom loop or running an AIO CPU cooler, the Level 20 GT ARGB Black Edition lets you mount your radiator against the back panel to show off your RGB fans. The back panel provides adequate exhaust while putting your RGB fans on display, with support for up to a 420mm radiator as well as radiator support on the front and top of the chassis.
- The image is for reference only.
- Two 200mm 5V addressable ARGB LED front fans and one 140mm rear fan are included.
CPU Cooler
Max height 200 mm
Motherboard
E-ATX, ATX, Micro ATX, Mini ITX
PSU
Max Length 220 mm
VGA
Max Length 410 mm

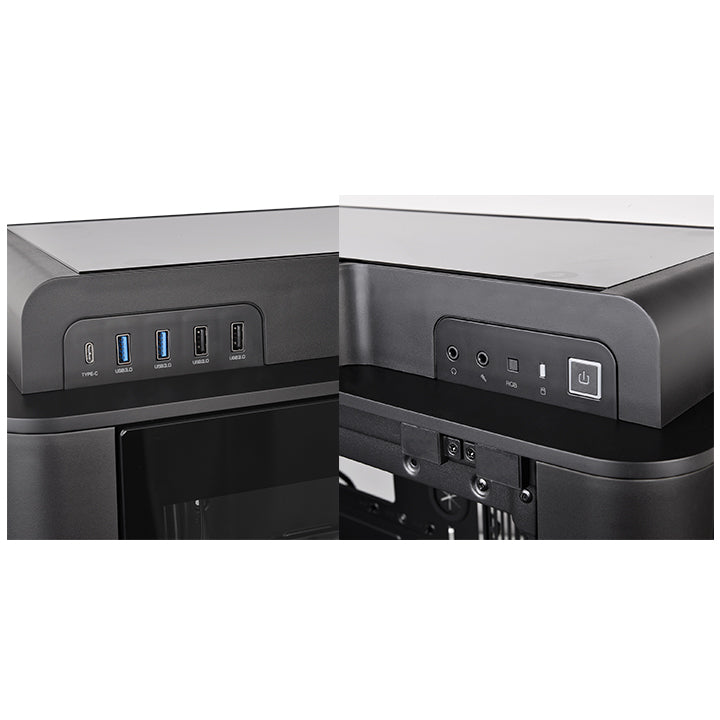

The top-right panel features two USB 3.0 and two USB 2.0 data transfer ports, along with one USB 3.1 Type-C port.
- The image is for reference only.
Strip your case down to the bones and install elements when and as you need them with our modular design. The Level 20 GT ARGB Black Edition features modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | 180mm | 360mm | |
|---|---|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | ● | ● | ● |
| Top | ● | ● | ● | ● | ● | - | ● | ● |
| Rear | ● | - | - | ● | - | - | - | - |
| Right | ● | ● | ● | ● | ● | ● | - | - |
| Bottom | ● | ● | - | - | - | - | - | - |
(Water 3.0 and Floe series)
| Performer | Pro | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | ● | ● | ● | ● |
| Rear | ● | ● | - | - | ● | - |
| Right | ● | ● | ● | ● | ● | ● |
| Bottom | - | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 3 | 2 |
| Top | 3 | 3 | 2 |
| Rear | 1 | 1 | - |
| Bottom | 2 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | ● |
| LUNA FAN Series | ● | ● | ● |
| Riing FAN Series | ● | ● | ● |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
