H700 TG Series

Name: H700 TG Series
Brand: Thermaltake USA
SKU: CA-1Y1-00M1WN-00
Price: 109.99 USD
Availability: OutOfStock

SKU:CA-1Y1-00M1WN-00

$109.99 USD

Sale Sold out

Product variants

Quantity

Thermaltake H700 TG Series Mid Tower Chassis are designed with the concept of clean, simple, and sleek look which can fulfill basic but important needs from PC builders.

View full details

Design
Specification
Download
How-to Videos

Thermaltake

Thermaltake H700 TG Series
Mid Tower Chassis

The H700 TG Series are designed for the PC builders who want a clean and sleek look but crave for cooling performance and tempered glass at the same time. The H700 TG Series are a standard mid-tower chassis with motherboard support two preinstalled 120mm fans with one at the front and one at the rear, and RGB buttom that can switch between 19 lighting modes. Exteriorly simple look and internally sophisticated design.

*The image is for reference only.

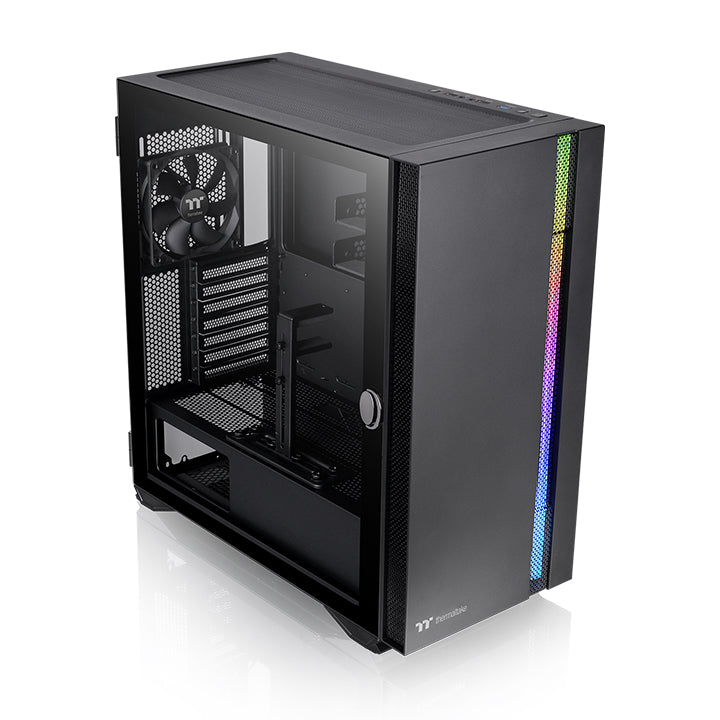

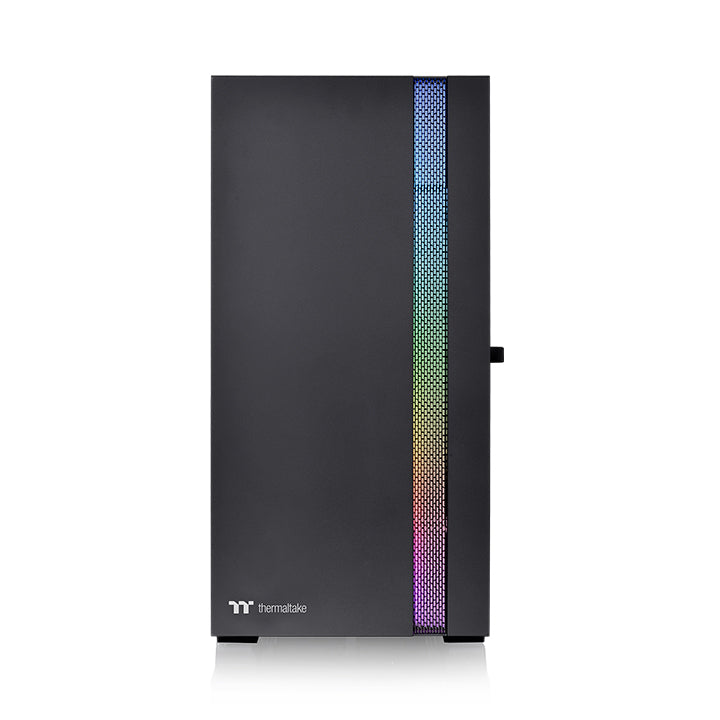

Classic Design with RGB Light Bar Front Panel

With an unique RGB light bar, the front panel of H700 TG Series reveal smooth and elegant style.

Built-in PSU Cover

Come with a full-length PSU cover with a ventilated design to enhance the airflow and hide those unsightly cables.

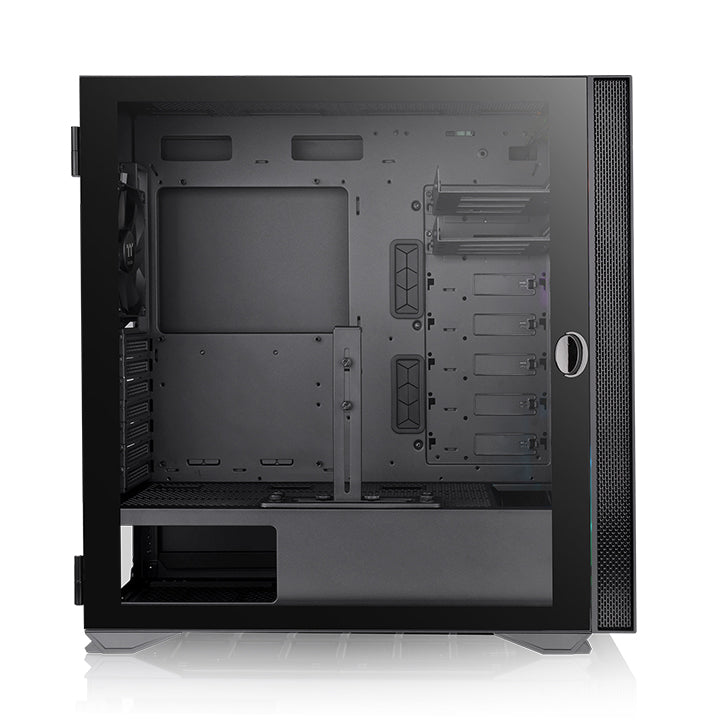

Tempered Glass Window

The tempered-glass hinge door is designed with a smart lock security system which secures the inner components of your case. H700 TG Series are built to be more durable, scratch resistant and, of course, easy-to-use.

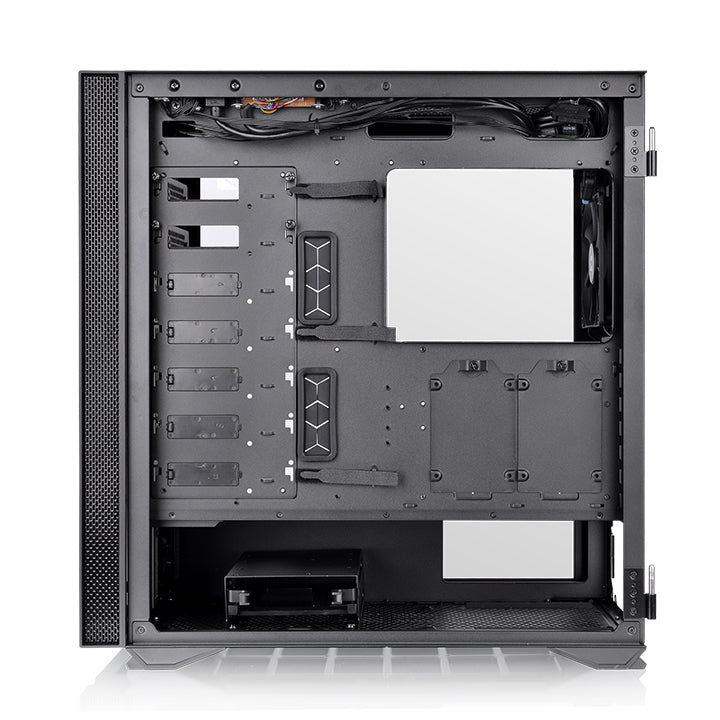

Superior Hardware Support

The H700 TG Series have outstanding expandability with support for a tower CPU cooler with maximum height 180mm, a dual expansion slot VGA of up to 395mm (without radiator) in length, and a power supply with length of up to 180mm (with 3.5” HDD Drive installed) and up to 220mm otherwise.

Excellent Cooling Capability

Optimized for excellent cooling capability with 120mm fans with one at the front and one at the rear preinstalled. The case is able to house up to three 140mm front fans, up to 2x 140mm fans on top, and a radiator size up to 360mm on top to allow users to build a desired high-end system.

Handy I/O Ports

One 3.0 and two 2.0 USB ports on top-front panel to grant direct access when needed. A specially designed RGB control button provides users plenty 19 light effect selection.

Radiator Support List

All-in-One Compatibility List

	120mm	240mm	360mm	140mm	280mm	420mm
Front	●	●	●	●	●	-
Top	●	●	●	●	●	-
Rear	●	-	-	-	-	-

Fan Support List

Fan Compatibility List

	120mm	140mm	200mm
Front	3	3	-
Top	3	2	-
Rear	1	1	-

P/N	CA-1Y1-00M1WN-00
Model	H700 TG
Series	H Series
Case Type	Mid Tower
Dimensions	493 x 233 x 466 mm (19.4 x 9.2 x 18.3 inch)
Weight	9.6 kg / 21.16 lbs.
Side Panel	Tempered Glass x 1
Color	Black
Material	SPCC
Cooling System	Front(intake): 120 x 120 x 25 mm standard fan (1100rpm, 22.5 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm standard fan (1100rpm, 22.5 dBA) x 1
Drive Bays	2 x 3.5”, 2 x 2.5” or 4 x 2.5”
Expansion Slots	7
Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)
LCS Upgradable	USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, LED button x 1
I/O Port	Standard PS2 PSU (optional)
Fan Support	Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm
Radiator Support	Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm
Clearance	CPU cooler height limitation: 180mm VGA length limitation: 340mm(With radiator) 395mm(Without radiator) PSU length limitation: 180mm(With HDD Cage) 220mm(Without HDD Cage)

User Manual

File Name
Description
Size
Version
Release Date

H700 TG Series
H700 TG Series Manual
2022-03-28
