H570 TG ARGB Snow Mid Tower Chassis

Name: H570 TG ARGB Snow Mid Tower Chassis
Brand: Thermaltake USA
SKU: CA-1T9-00M6WN-01
Price: 99.99 USD
Availability: InStock

SKU:CA-1T9-00M6WN-01

$99.99 USD

Sale Sold out

Product variants

Quantity

H570 TG ARGB Snow mid-tower chassis comes with three preinstalled hydraulic bearing 120mm ARGB Lite front fans, and can support up to E-ATX (12" x 13") Motherboards.

View full details

Design
Specification
Download
How-to Videos

H570 TG ARGB Snow Mid-Tower Chassis

H570 TG ARGB Snow mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12“ x 13”) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis.

The image is for reference only.

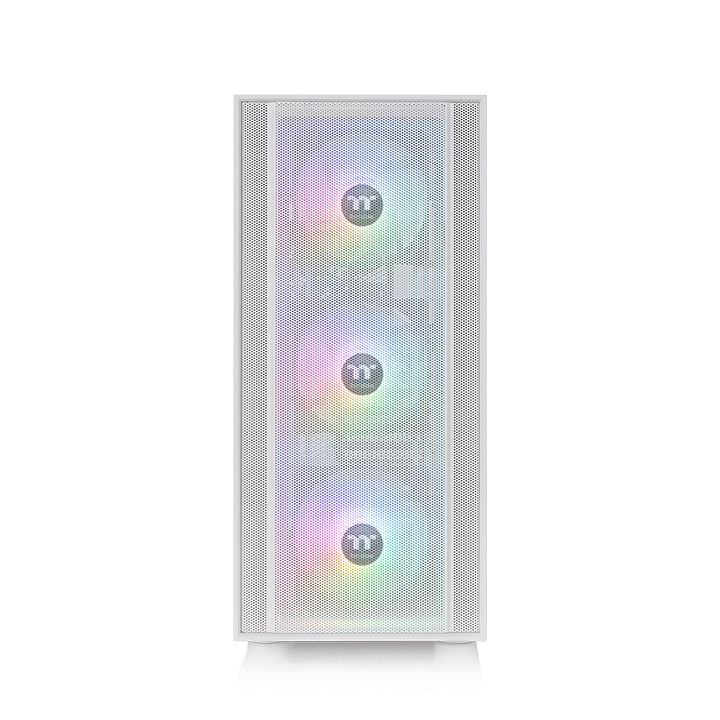

Mesh Front Panel

H570 TG ARGB Snow mid-tower chassis comes with a large airflow-optimized mesh panel at the front for massive airflow performance.

The image is for reference only.

Three Pre-installed Hydraulic Bearing 120mm ARGB Lite Front Fans

H570 TG ARGB Snow mid-tower chassis comes with three pre-installed hydraulic bearing 120mm ARGB Lite fans at the front of the case. Users may enjoy the fascinating lighting effects by controlling them through the motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Built-in PSU Cover

H570 TG ARGB Snow mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

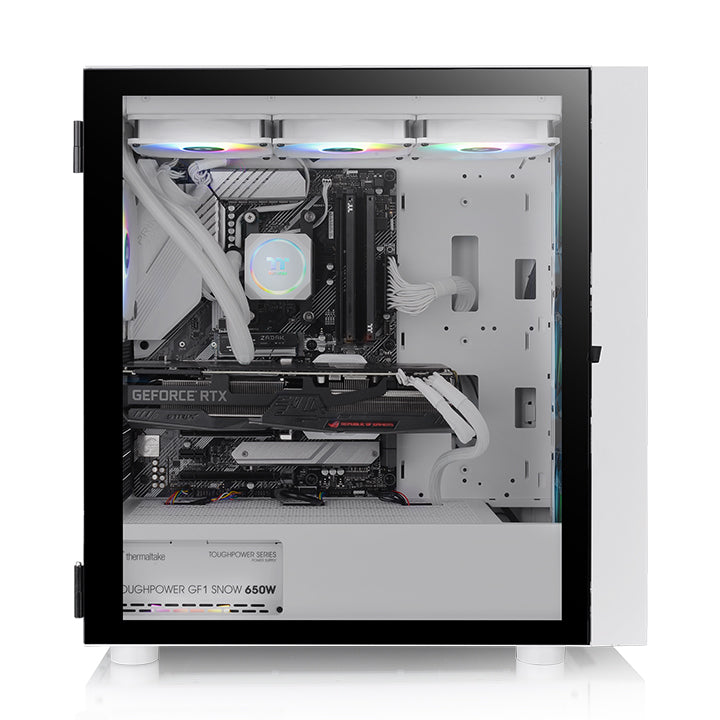

Hinged Tempered Glass Panel

H570 TG ARGB Snow mid-tower chassis comes with one 4mm hinged tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.

The image is for reference only.

Opportunities For High-End Expansion

H570 TG ARGB Snow mid-tower chassis has good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement of up to 375mm in length, a power supply with a length of up to 180 mm (without HDD Rack). Optimized for excellent cooling capability, the case comes with three hydraulic bearing 120mm ARGB Lite fans pre-installed at the front; you can also choose to put two 140mm fans at the front and on top, or even two 200mm fan at the front will fit. For radiator compatibility, it can support up to 360mm at the front and on top, giving more opportunities for high-end expansion!

120mm
140mm
200mm

120mm
140mm
240mm
280mm
360mm

Handy I/O Ports

Two USB 3.0 ports, and one HD Audio are placed on the top panel to grant direct access when needed.

All-in-One Compatibility List

	120 Series	240 Series	360 Series	140 Series	280 Series	420 Series
Front	●	●	●	●	●	-
Top	●	●	●	●	●	-
Rear	●	-	-	-	-	-

Fan Support List

Fan Compatibility List

	120mm	140mm	200mm
Front	3	3	2
Top	3	2	-
Rear	1	-	-

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE
JRAINBOW Header
MSI
Addressable RGB LED Header
ASRock

Category	Caution
Chassis, ARGB Fan, ARGB AIO	The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate	This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. By having more than two applications open may cause conflicts The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.

P/N	CA-1T9-00M6WN-01
Model	H570 TG ARGB Snow
Series	H Series
Case Type	Mid Tower
Dimensions	487 x 216 x 463.6 mm (19.2 x 8.5 x 18.3 inch)
Weight	7.5 kg / 16.5 lbs.
Side Panel	4mm Tempered Glass x 1
Color	White
Material	SPCC
Cooling System	Front(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3
Expansion Slots	7
Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)
I/O Port	USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mmRear: 1 x 120mm
Radiator Support	Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm
Clearance	CPU cooler height limitation: 160mm VGA length limitation: 375mm PSU length limitation: 180mm

User Manual

File Name
Description
Size
Version
Release Date

H570 TG ARGB Manual
2022-08-02

Drivers & Software

File Name
Description
Size
Version
Release Date
