Divider 500 TG Snow ARGB Mid Tower Chassis
Divider 500 TG Snow ARGB Mid Tower Chassis
SKU:CA-1T4-00M6WN-01
Couldn't load pickup availability

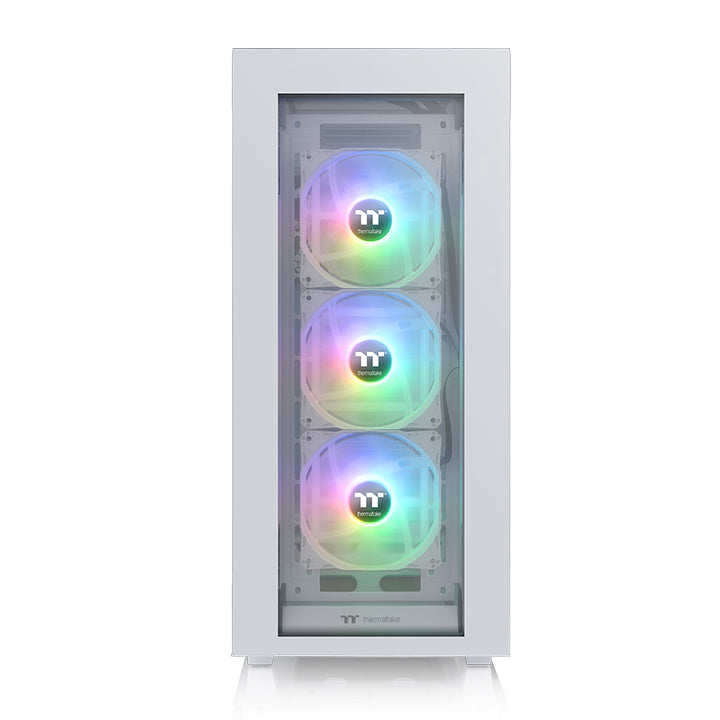

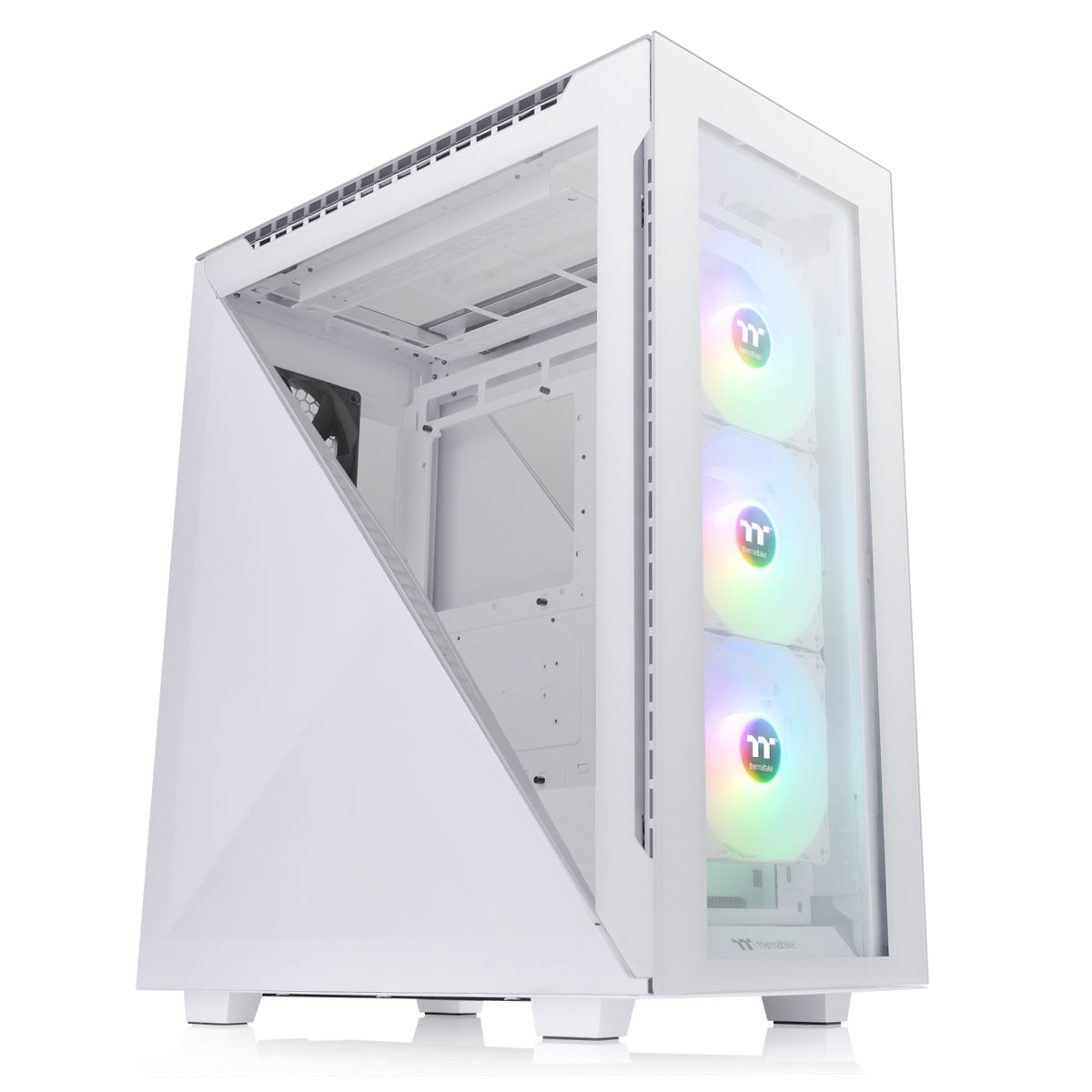

The Divider 500 TG Snow ARGB is an ATX mid-tower case that comes with three preinstalled 120mm 5V ARGB front fans, one 120mm standard rear fan, four durable 3mm tempered glass windows at the front, top, left, and right sides. Additionally, the case comes with two symmetrical triangular panels one in tempered glass and the other in steel which are available for more options.
-
Design
-
Specification
-
Download
-
How-to Videos
Thermaltake
Divider 500 TG Snow ARGB
Showcase Your System in a Particular Way

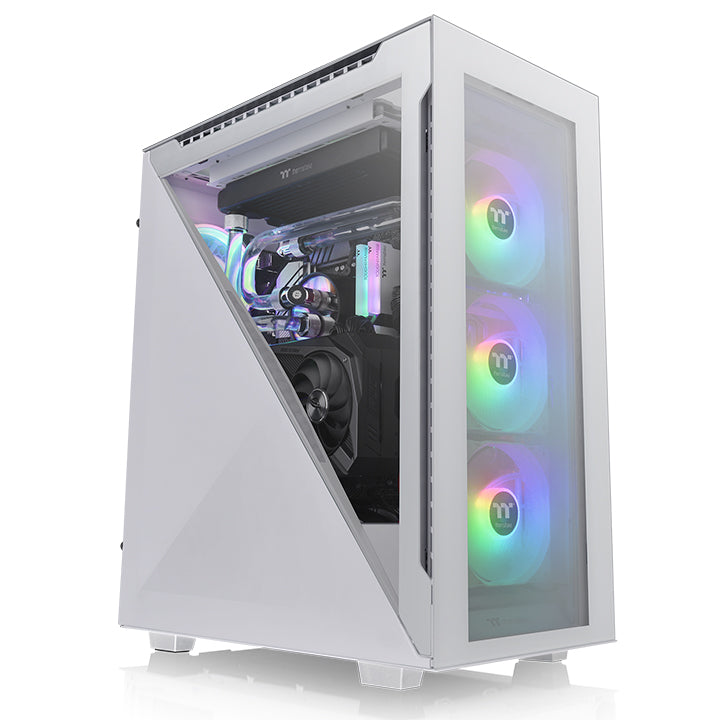

Thermaltake designed a brand-new case series that contains a mixture of open frame styled elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 500 TG Snow ARGB Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left and right sides. These panels are tool-free and easy to remove, offering a clear view of the components inside. Extra two symmetrical triangular options of tempered glass and steel panel enriches the appearance of the case when building the system. Additionally, the Divider 500 TG Snow ARGB comes with three preinstalled 120mm 5V ARGB front fans which can sync with RGB motherboard software from ASUS, GIGABYTE, MSI, and ASRock. They are addressable and deliver 16.8 million-color RGB illumination and unparalleled ventilation. The Divider 500 TG Snow ARGB Mid Tower Case is the next-gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.
- The image is for reference only.

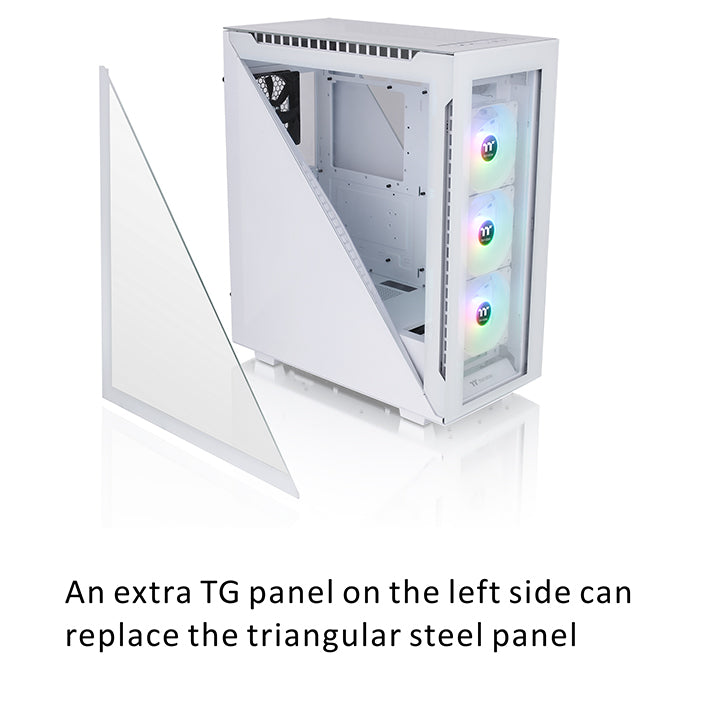

The exceptional feature of the Divider 500 TG Snow ARGB is that the four symmetrical triangular pieces are mixed and matched. We provide an extra triangular tempered glass window on the left side which enriches the appearance of the case when building the system. For example, users can can stick to the default form or have two triangular tempered glass windows on the left side, creating various viewing flavors.
Cooling component options on the motherboard side:
Fans, radiators, and Thermaltake Pacific DP100-D5 Plus Distro-Plate with Pump Combo.
The extra triangular mesh panel on the right side enriches the appearance of the case as well as when building in the case. For example, users can stick to the default form or have two steel panels on the right side when installing fans on the motherboard side for air intake or exhaust depending on the PC layout.
The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. Riser cable bracket not only enables vertical GPU installation, but also helps reduce the weight on the PCI-E slots.
Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.
- The image is for reference only.
The Divider 500 TG Snow ARGB has well-designed dust filtration. A removal magnetic fan filter on inner right side. At the front and base, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
The cooling performance of the Divider 500 TG Snow ARGB is admirable. The venting gaps on two sides of the front tempered glass and gaps between two triangular pieces of tempered glass and steel panels on the left side allow an optimal air intake. Cooling exhausts are located on the right side of the steel panel and rear of the case. The additional triangular tempered glass and steel panels not only enrich the build appearance but allow more flexible system cooling.
- The image is for reference only.
To let our customers better understand the thermal performance of the Divider 500 TG Snow ARGB ATX Mid Tower Case, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.
-
Idle
Full-load
Specification
| Motherboard | ASUS ROG MAXIMUS XI HERO |
|---|---|
| CPU | Intel® Core™ i5-9600K (TDP 95W) |
| GPU | MSI GeForce RTX™ 3090 VENTUS 3X 24G OC |
| RAM | TOUGHRAM RGB Memory DDR4 3200MHz |
| PSU | Toughpower GF2 ARGB 650W |
| CPU Cooler | Floe DX RGB 280 TT Premium Edition |
| Fans | Pure ARGB 120mm fans up to 7 (Front x 3, Top x 2, Rear x 1, Side x 2) |
| Software | AIDA64 Extreme Portable, FurMark ASUS ROG Edition |
|---|---|
| Full load | 30 min |
| Camara | Testo 885-2 Thermal Imaging Camera |
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
Two 3.0 USB and one USB 3.2 (Gen 2) Type C ports are placed on the top panel to grant direct access when needed.
Strip your case down to the bones and install elements when and as you need them with our modular design. The Divider 500 TG Snow ARGB features modular panels, racks, brackets, and pre-designed mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● |
| Top | ● | ● | - | ● | ● |
| Right | ● | ● | - | - | - |
| Rear | ● | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 3 | - |
| Top | 2 | 2 | - |
| Right | 2 | - | - |
| Rear | 1 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE-
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
