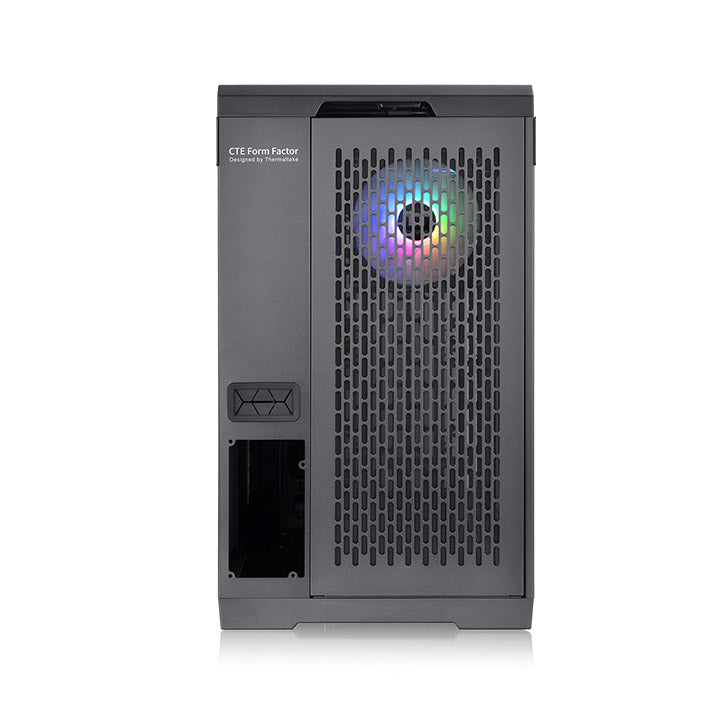

CTE Form Factor
Designed by Thermaltake
The focus for CTE (Centralized Thermal Efficiency) was to provide a high level of thermal performance by altering our approach to traditional case design. The result was a design that utilizes a 90-degree rotated motherboard tray to provide not only more airflow pathways but also more efficient airflow pathways.
With the new fan trays being able to accept up to three 140mm or 120mm fans as well as up to a 420mm AIO Radiator the CTE chassis provides lots of options whether you choose Air, AIO, or DIY Liquid Cooling for your build. Since the motherboard tray has been rotated, direct intake airflow from each of the motherboard trays can more efficiently be directed toward components like the CPU and GPU and then exhausted with the assistance of natural convection.
The image is for reference only.
Increased Thermal Efficiency through unconventional design.
The video is for reference only.
Maximized Intake
The rotation of the motherboard tray not only allows the CTE design to bring the CPU and GPU close to intake sources but goes one step further in providing them each their own intake sources with space for up to three 140mm/120mm fans or a radiator up to 420mm.
The video is for reference only.
Central Thermal Efficiency
Now that primary heat sources have been centralized in the chassis the additional intake located at the bottom of the case can also assist the dedicated exhaust at the top of the case in removing heat from the system. Combined with the shorter air pathways throughout the chassis the CTE line up is very good with intake and exhaust while still providing plenty of room to build in.
The video is for reference only.
Maximum Radiator Support

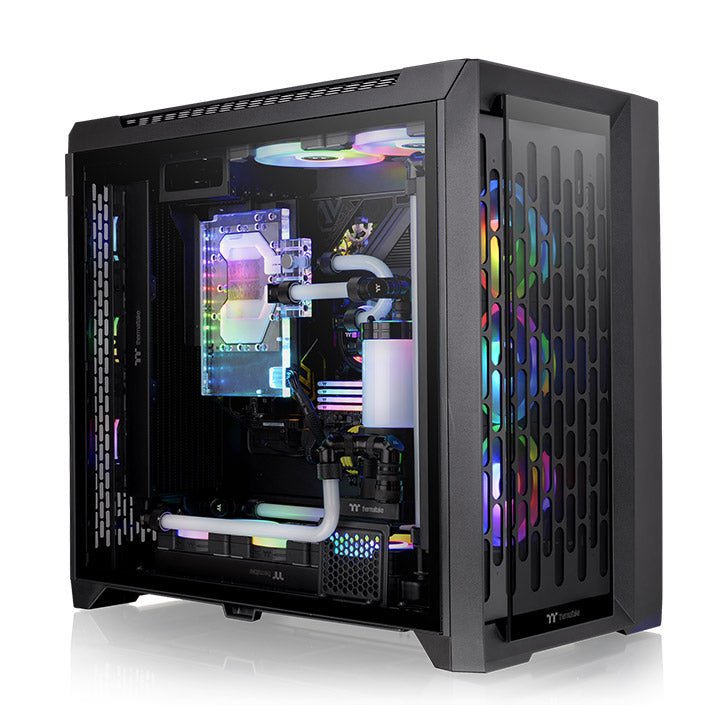

When it comes to liquid cooling the C750 line up is an excellent platform. Providing ample amounts of radiator mounting locations and accommodating radiators up to 420mm in width in a majority of configurations, with some exceptions on radiator width (see support list). Reference image provides examples of a 5 radiator configuration, 2 radiator configuration, as well as a 4 radiator configuration.
Options to fit your Dream Build
With features like enough space to accommodate up to 14 fans, a rotating PCI-E and riser bracket, removable pump and reservoir bracket, and three removable fan brackets the C750 has what it takes to fit everything you want in a build. To keep the second chamber clean and free of cable clutter we have included Velcro straps for easy cable management, and speaking of clean did we mention all of the dust filters are removable as well.
The image is for reference only.
Three pre-installed 140mm CT140 ARGB fans
Our new CT series ARGB offer great performance and beautiful LED effects and we have included 3 of the 140mm series to give you a start. With standard 4 Pin PWM and 5V ARGB connectivity set up is simple and benefits from a variety of ways to control your fan speeds and lighting effects.
The image is for reference only.
Complete your build with CT series fans
Really like the look of the CT fans and want to complete your build with them, then just click on the links below. Our new CT series fans come in a variety of sizes, color options, and LED or Non-LED options to fit what came with your chassis or the look you are going for.
Display it your way
Included with the C750 line up is a rotatable PCI-E and riser mounting bracket, allowing for both conventional direct connection to the motherboard or rotation of the card with the use of a riser cable for optimal viewing angles. The included riser bracket is capable of accepting both 90 degree and 180 degree mounting style riser cables for convenience.
High-End Expandability
Perfect Dust Protection
There are a total of six dust filters included with the C750 line up located at the front, top, bottom, rear, and right side of the chassis to protect the system from the ingress of dust and other particulates. On top of that they are all easily removable for convenience during cleaning and maintenance.
Everything you need in one place
Four USB 3.0 ports, one USB 3.2 Gen 2 Type-C, along with HD audio ports all conveniently located on the top panel of the chassis to provide easy access.
Radiator Support List
All-in-One Compatibility List
120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
---|---|---|---|---|---|---|
Front | ● | ● | ● | ● | ● | ● |
Top | ● | ● | - | ● | - | - |
Right-Side | ● | ● | ● | ● | ● | ● |
Rear | ● | ● | ● | ● | ● | ● |
Bottom | - | - | - | - | - | - |
Custom Liquid Cooling Compatibility List
120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
---|---|---|---|---|---|---|
Front | ● | ● | ● | ● | ● | ● |
Top | ● | ● | - | ● | - | - |
Right-Side | ● | ● | ● | ● | ● | ● |
Rear | ● | ● | ● | ● | ● | ● |
Bottom | ● | ● | ● | ● | ● | - |
Fan Support List
Fan Support List
120mm | 140mm | 200mm | |
---|---|---|---|
Front | 3 | 3 | 2 |
Top | 2 | 2 | - |
Right-Side | 3 | 3 | - |
Rear | 3 | 3 | 2 |
Bottom | 3 | 3 | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
Category | Caution |
Chassis, ARGB Fan, ARGB AIO |
|
RGB Memory, VGA Waterblock, Distro Plate |
|
