TOUGHPOWER PF1 ARGB -1200W
TOUGHPOWER PF1 ARGB -1200W
SKU:PS-TPD-1200F3FAPU-1
Couldn't load pickup availability
80 PLUS Platinum certified fully modular analog PSU with 16.8million-color,18-LED RGB fan.
-
Design
-
Specification
-
Download
-
How-to Videos
Toughpower PF1 ARGB 1200W Platinum - TT Premium Edition
Toughpower PF1 ARGB Platinum Series (850W/1050W/1200W) is
crafted using premium
components and advanced technology to become the fusion of aesthetics and performance.
The patented 16.8
million-color
Riing Duo 14 RGB fan with 18 LEDs preinstalled helps deliver brighter and richer
lighting. The meticulously
designed
ARGB side panels allow the light to glow through. The series supports synchronization
with RGB motherboards
from ASUS,
GIGABYTE, msi, and ASRock for counteless illumination poossibilities. With near silent
and reliable operation,
the
Toughpower PF1 ARGB Platinum meets and even exceeds the demanding specification of the
overclocker or
enthusiast PC
user.
* All images are for reference only; actual specification and lighting effects are based on the real product.
Glow with the Flow
The built-in Riing Duo 14 RGB Fan features dual rings with 18
addressable LEDs,
great
light coverage, and uniform color and brightness to paint your build with 16.8 million
colors.
Taiwan Patent: 105218791
US Patent Applied
China Patent: ZL 201621469674.7
*There are 8 colors in “Full Lighted” mode.
※The photo is for reference.
Be Seen from Various Angles
Show off the glamorous illumination through the unique ARGB Side Panel design and add the Wow factor to you build.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and AsRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and AsRock official websites.
*Caution: the motherboard signal connector only supports 5V header.
Zero Cable Platform
Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality
Ultra Quiet Smart Zero Fan
With Smart Zero Fan starting to operate when the power
supply working load goes
over
40%, the undesired noise will be minimized. A user-friendly switch is set on the back
panel for those who
prefer the
fan to spin constantly.
＜30 mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure an excellent performance and a reliable operation.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
100% High Quality Japanese 105°C/221°F Capacitors
Comes with high quality 105 °C (221 ° F) Japanese capacitors
to help improve the
durability and offer impressive stability.

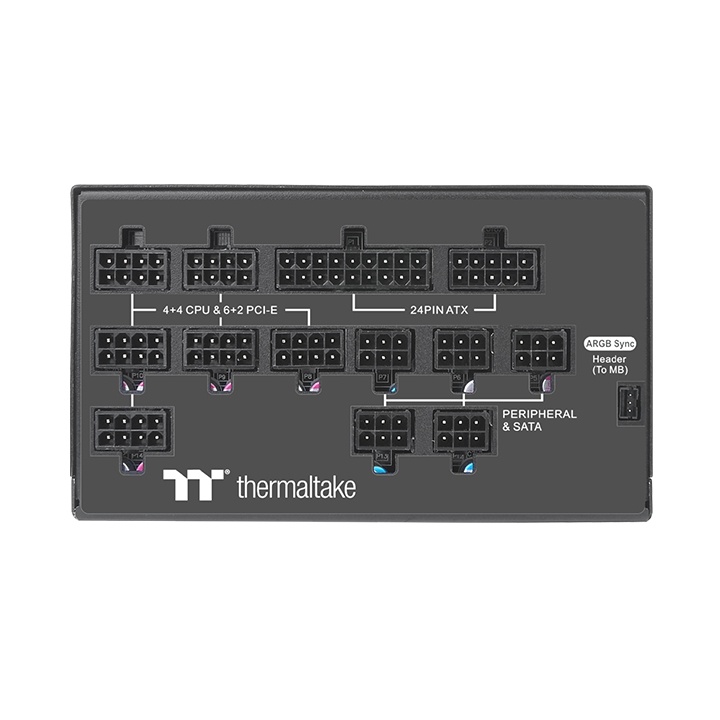

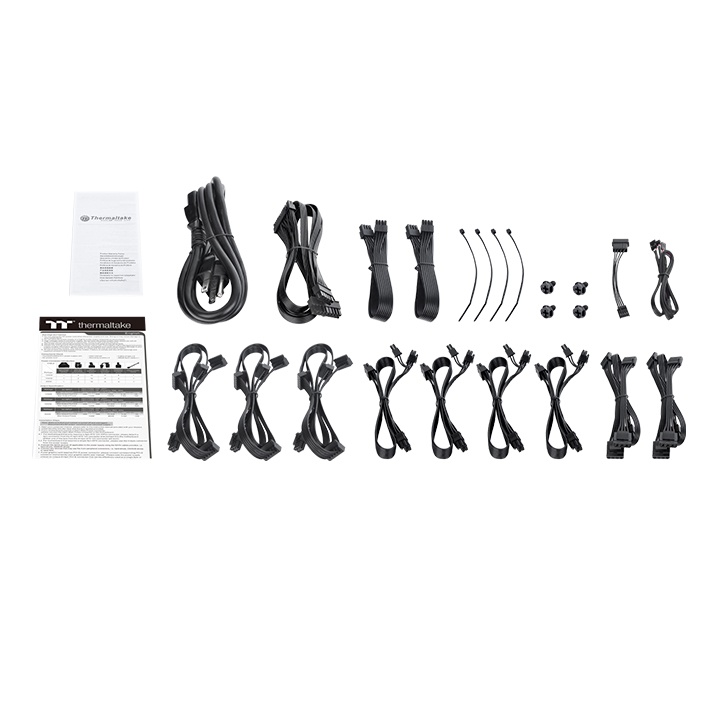

Fully Modular Low-profile Flat Black Cables
The series offers cable selection for users while powering
the system at an
advantageous voltage. The low-profile flat black cables make cable management easier,
reduce clutter and
increase
airflow inside the chassis.
High Amperage Single +12V Rail Design
Powerful single +12V rail helps ensure a stable and reliable
supply to other PC components.
80 PLUS Platinum Certified and Intel C6/C7 States Ready
Saves energy through its high energy efficiency up to 92% and is certified to 80 PLUS® Platinum. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE-
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
