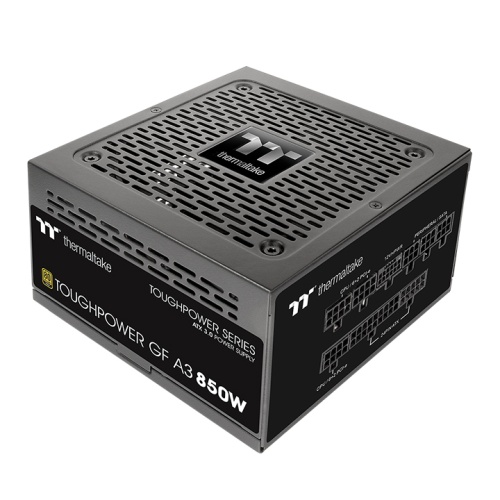

TOUGHPOWER GF A3 Gold 850W - TT Premium Edition
TOUGHPOWER GF A3 Gold 850W - TT Premium Edition
SKU:PS-TPD-0850FNFAGU-L
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 850W can deliver up to 450W for PCIe 5.0 graphics cards.
-
Design
-
Specification
-
Download
-
How-to Videos
ATX 3.0 & PCIe Gen 5.0 Ready
Toughpower GF A3 Gold
650W / 750W / 850W / 1050W / 1200W
Power Up the Next Generation Hardware
To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.
Fully Compatible with Intel ATX 3.0 Standards
Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
ATX 3.0
ATX 2.0
Total power excursion
PCIe Gen 5.0 Ready
Toughpower GF A3 Gold series comes with a 16pin connector to
offer powerful and stable performance allowing the PSU to natively run next-generation
GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel
design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 850W can deliver up to 450W for
PCIe 5.0 graphics cards.
Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may
vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before
using the 12VHPWR cable.
16pin Connector
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.
1 GPU Power Connector
2 GPU Power Connector
3 GPU Power Connector
16 pin GPU Power Connector
Be Smart, Stay Quiet
Featuring a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will the fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.
High Quality Japanese Main Electrolytic Capacitor
High quality Japanese main electrolytic capacitor greatly improves the power supplies durability and ensures the Toughpower GF A3 series is stability and reliability.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
AC INPUT |
Input Voltage: 100 - 240V~
|
||||
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
Max Output Current |
20A |
20A |
70.8A |
0.3A |
3A |
Max Output Power |
100W |
850W |
3.6W |
15W |
|
Total Power |
850W |
Built-in Industrial Grade Protection
To protect the hardware, GF A3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
-
OCP
Over Current Protection
-
OVP
Over Voltage Protection
-
UVP
Under Voltage Protection
-
OPP
Over Power Protection
-
SCP
Short Circuit Protection
-
OTP
Over Temperature Protection

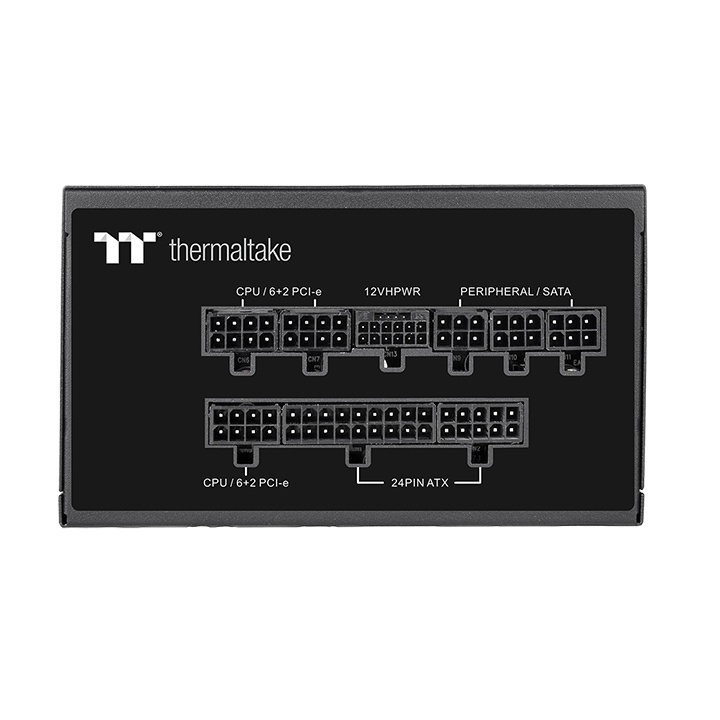

Fully Modular Low-Profile Flat Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.
Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
---|---|---|---|---|
Main Power (24Pin) |
X 1 | X 1 | 600mm | |
ATX 12V (4+4Pin) |
X 2 | X 1 | 650mm+150mm | |
PCIe (6+2Pin) |
X 4 | X 2 | 500mm+150mm | |
PCIe (12+4Pin) 450W |
X 1 | X 1 | 600mm | |
SATA (5Pin) |
X 8 | X 2 | 500mm+150mm +150mm+150mm | |
Peripheral | X 4 | X 1 | 500mm+150mm +150mm+150mm | |
FDD Adapter | X 1 | X 1 | 150mm |
80 PLUS Gold Certified and Lake C6/C7 States Ready
Toughpower GF A3 Gold series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
P/N | PS-TPD-0850FNFAGU-L |
---|---|
Model | TTP-0850AH2FLG |
Watts | 850W |
Max Output Capacity | 850W |
Color | Black |
Dimensions | 150mm(W)x86mm(H)x140mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-150 msec |
Hold Up Time | > 17msec |
Input Current | 15A-8A |
Input Frequency Range | 50Hz/60Hz |
Input Voltage | 100-240V~ |
Operating Temperture | 5°C to + 45°C |
Operating Humidity | 20% to 85%,non-condensing |
Storage Temperture | -40°C to + 55°C |
Storage Humidity | 10% to 95%, non-condensing |
Cooling System | 12cm FDB Fan |
Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
MTBF | 100,000 hrs minimum |
Safety Approval | FCC/ICES/CB/cTUVus |
PCI-E 6+2PIN | 4 |
PCI-E 12+4PIN | 1(450W) |
