Toughpower 750W Gold (Modular)

Name: Toughpower 750W Gold (Modular)
Brand: Thermaltake USA
SKU: PS-TPD-0750MPCGUS-1
Price: 109.99 USD
Availability: OutOfStock

SKU:PS-TPD-0750MPCGUS-1

$109.99 USD

Sale Sold out

Product variants

Quantity

Toughpower Series TPD-0750M – 750W 80 PLUS® Gold Certified Semi Modular APFC PSU

View full details

Design
Specification
Download
How-to Videos

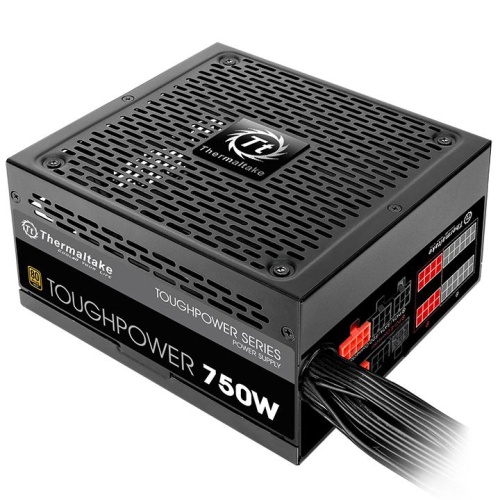

Thermaltake Toughpower 750W Gold (Modular)

The Thermaltake Toughpower series is a premium 80 PLUS Gold certified power supply that uses the highest quality components for stable performance, excellent features with unbeatable efficiency vital to the current high-end system in market even in demanding conditions. With the 80Plus Gold certification for its high power efficiency, and a single strong 12V rail flexibly routes the maximum available power to your CPU and graphics card, offering maximized power usage and easy setup. Toughpower 750W Gold (Modular) comes with modular design to reduce cable clutter; and ultra-quiet fan delivers silent cooling, thus the entire computer and power supply can operate at its peak moment.

Ultra Quiet 140mm Fan

Toughpower 750W Gold series adopt 140mm cooling fan with intelligent fan speed control guarantees cool performance and silent operation.

80 PLUS Gold Certified and Kaby Lake-Ready

Deliver up to 90% efficiency under real world load conditions to promise lowest power losses. In addition, Toughpower Gold Series is already prepared for Intel’s new, Seventh-generation Kaby Lake processor to achieve maximum energy savings.

Flat Modular Cables

Toughpower 750W Gold series adopt flat modular cables not only eliminate cable clutter within the system, but takes up less space for better airflow.

100% High Quality Japanese Made Capacitors

Japanese made capacitors provide uncompromised performance and reliability.

Massive and Dedicated +12V Output

Toughpower Series is equipped with a powerful single +12V rail, please see the output specification below:

AC INPUT	Input Voltage: 100V-240V~ Input Current: 10A max Frequency: 47Hz-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	62A	0.8A	3.0A
Max Output Power	100W		744W	9.6W	15W
Total Power	750W

P/N	PS-TPD-0750MPCGUS-1
Model	TP-750AH3CCG-B
Type	Intel ATX 12V V2.3 & EPS 12V standards
Form Factor	ATX
RGB Fan	No
Watts	750W
Max Output Capacity	750W
Peak Output Capacity	900W
Color	Black
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	12msec (minimum) @ 80% of full load at 115V / 230V input.
Input Current	10A
Input Frequency Range	47 Hz - 63 Hz
Input Voltage	100 Vac- 240 Vac
Operating Temperture	0℃ to +40℃
Operating Humidity	20% to 90%,non-condensing
Storage Temperture	-40 ℃ to +70 ℃
Storage Humidity	5% to 95%, non-condensing
Cooling System	140mm double ball-bearing fan, 1500±10%R.P.M.
Efficiency	87-92% efficiency @ 20-100% load
MTBF	120,000 hrs minimum
Safety Approval	UL/ TUV/ CE/ FCC/ BSMI/ EAC certification
PCI-E 6+2PIN	PCI-E 6+2pin x 4
Protection	OVP, OPP,SCP
