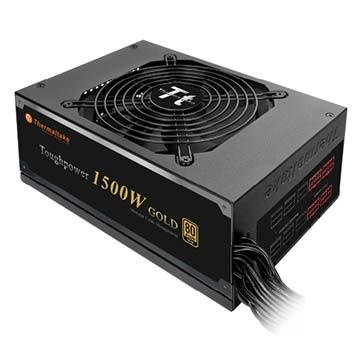

Toughpower 1500W Gold
The Thermaltake Toughpower Series is a premium line of PSUs certified to the 80 PLUS Gold standard. Incorporating components of the highest quality, it delivers stable performance and unbeatable efficiency. TPD 1500W Gold, which uses a semi-modular design. An ultra-quiet fan delivers silent cooling and a single strong 12V rail flexibly routes the maximum available power to the CPU, enabling peak performance of the computer system.

Ultra Quiet Fan
The Toughpower 1500W adopts a 135mm cooling fan with intelligent RPM control. This guarantees superior cooling performance and silent operation.

80 PLUS Gold Certified and Haswell Ready
The Toughpower 1500W saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. In addition, the Toughpower Series is designed to meet the demands of Intel’s new Haswell processors.

Flat Modular Cables
Low-profile flat modular cables used in the design enhance airflow as well as improve the thermal performance of the chassis. Flat cables are inherently more flexible, making cable routing easier.

100% High Quality Japanese 105°C/221°F Capacitors
100% high quality 105 °C (221 ° F) Japanese made capacitors which greatly improve the durability and offer the highest stability and reliability.

Massive and Dedicated +12V Output
Toughpower 1500W GOLD is equipped with powerful dual +12V rail, please see the output specification below:
AC INPUT | Input Voltage: 100V-240V |
|||||
DC OUTPUT | +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb |
Max Output Current | 25A | 25A |
70A |
70A |
0.3A |
3.5A |
Max Output Power | 150W |
1400W | 3.6W |
17.5W |
||
Continuous Power | 1500W |
