Swappable Fan Blades
Swap between standard and reverse airflow in seconds. Pop out the blades, SWAP them, and press them back in!

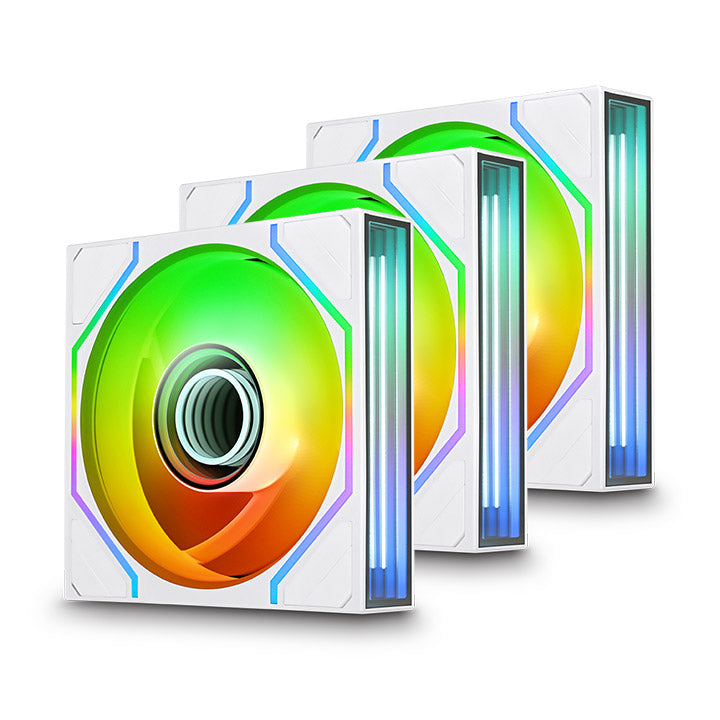

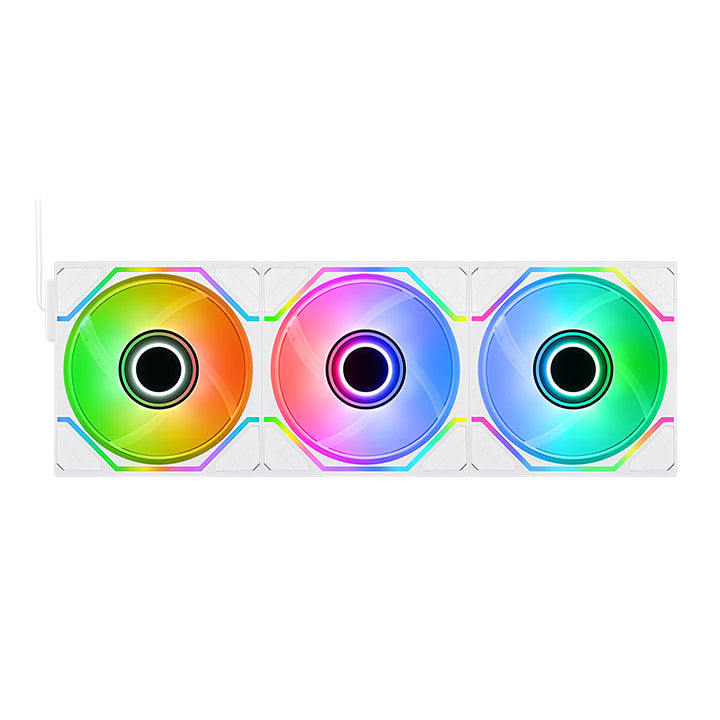

SWAFAN INFINITY EX12 ARGB Sync White 3Pack
SWAFAN INFINITY EX12 ARGB Sync White 3Pack
SKU:CL-F254-PL12SW-A
Regular price
$89.99 USD
Regular price
Sale price
$89.99 USD
Unit price
per
- Dual infinity mirror design
- Corner screw covers for a cleaner look

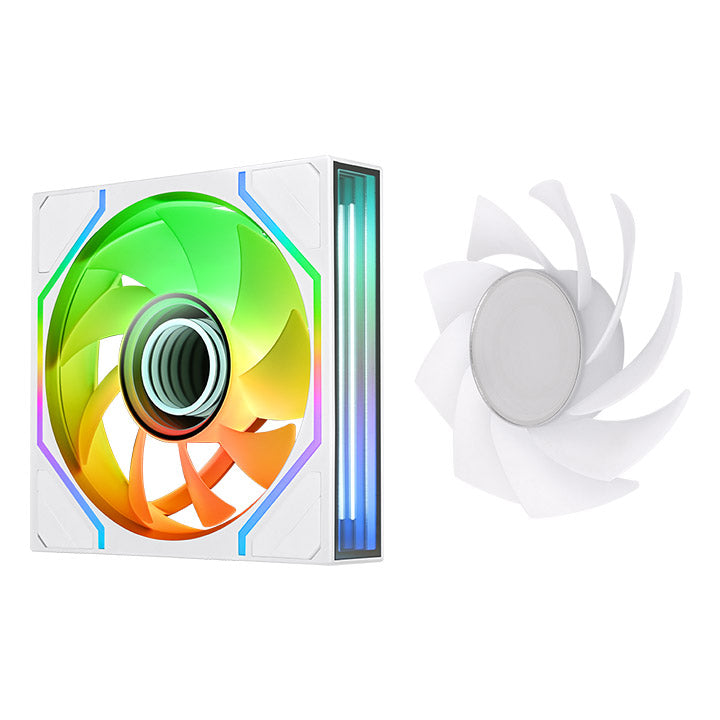

- Swappable blades for standard or reverse airflow
- Up to 85.91 CFM airflow and 2.53 mm-H₂O static pressure
- PWM control up to 1800 RPM
- MagForce 2.0 magnetic quick-connect system
- 5V ARGB motherboard sync support
Couldn't load pickup availability
-
Design
-
Specification
-
Download
-
How-to Videos

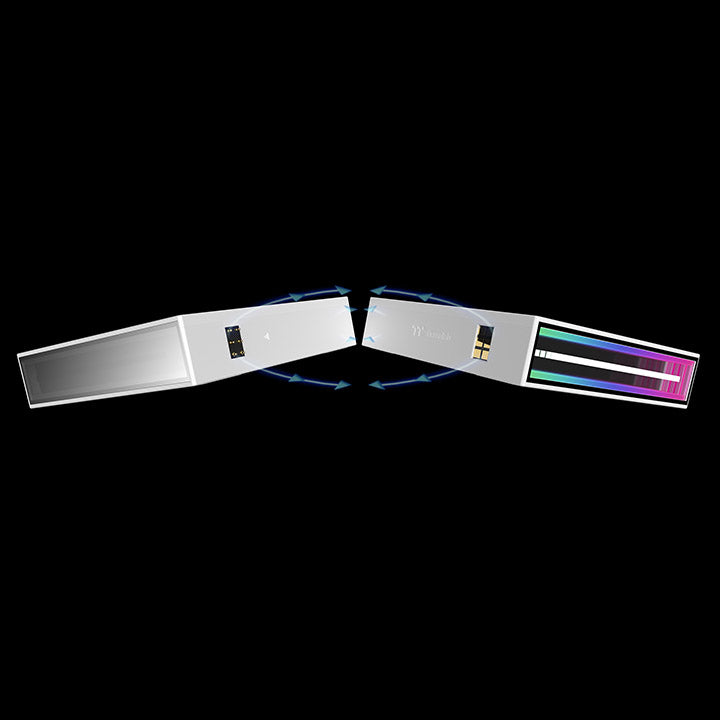

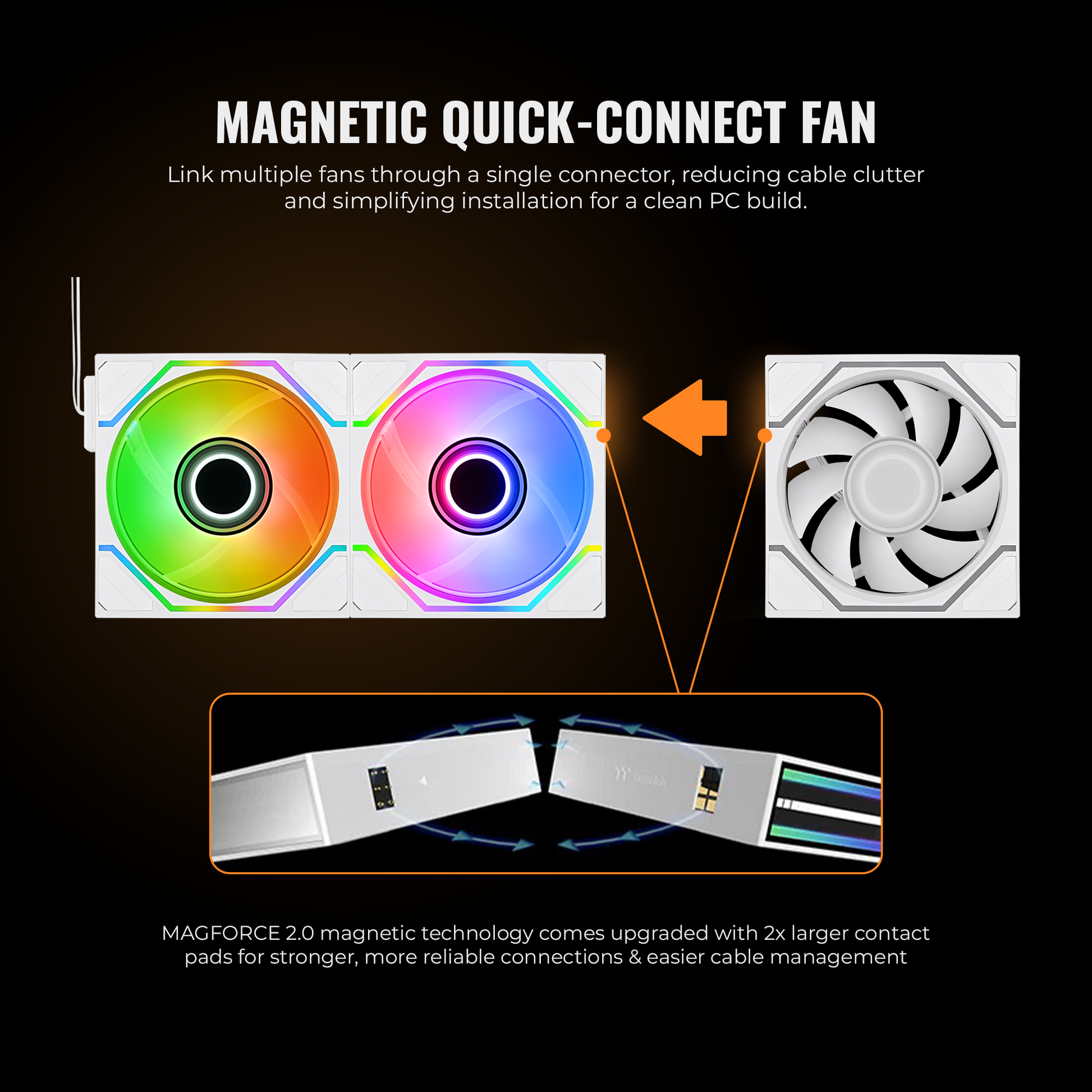

Magnetic Quick-Connect Fan
MAGFORCE 2.0 Connectivity
Upgraded with 2x larger contact pads for stronger, more reliable connections, and easier cable management.

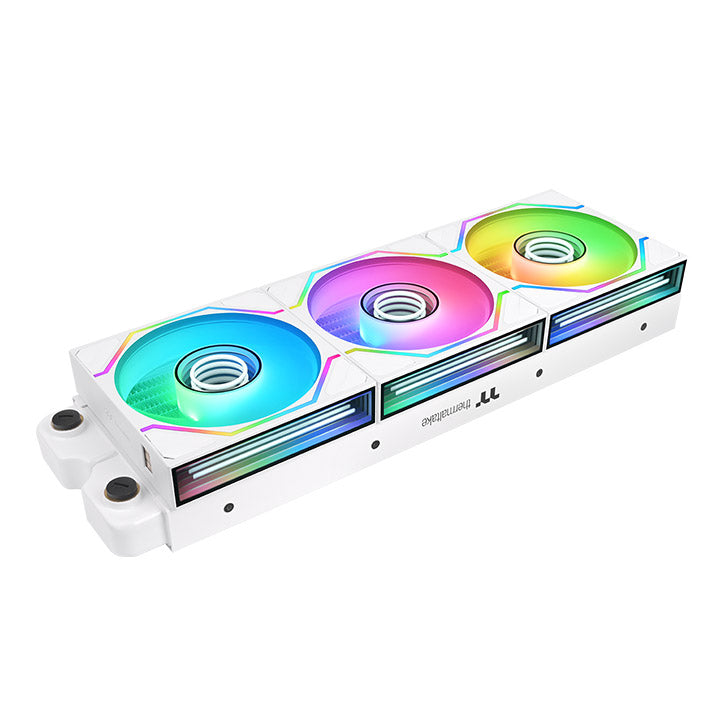

Say Goodbye to Messy Cables
Link multiple fans through a single connector, reducing cable clutter and simplifying installation for a clean PC build.

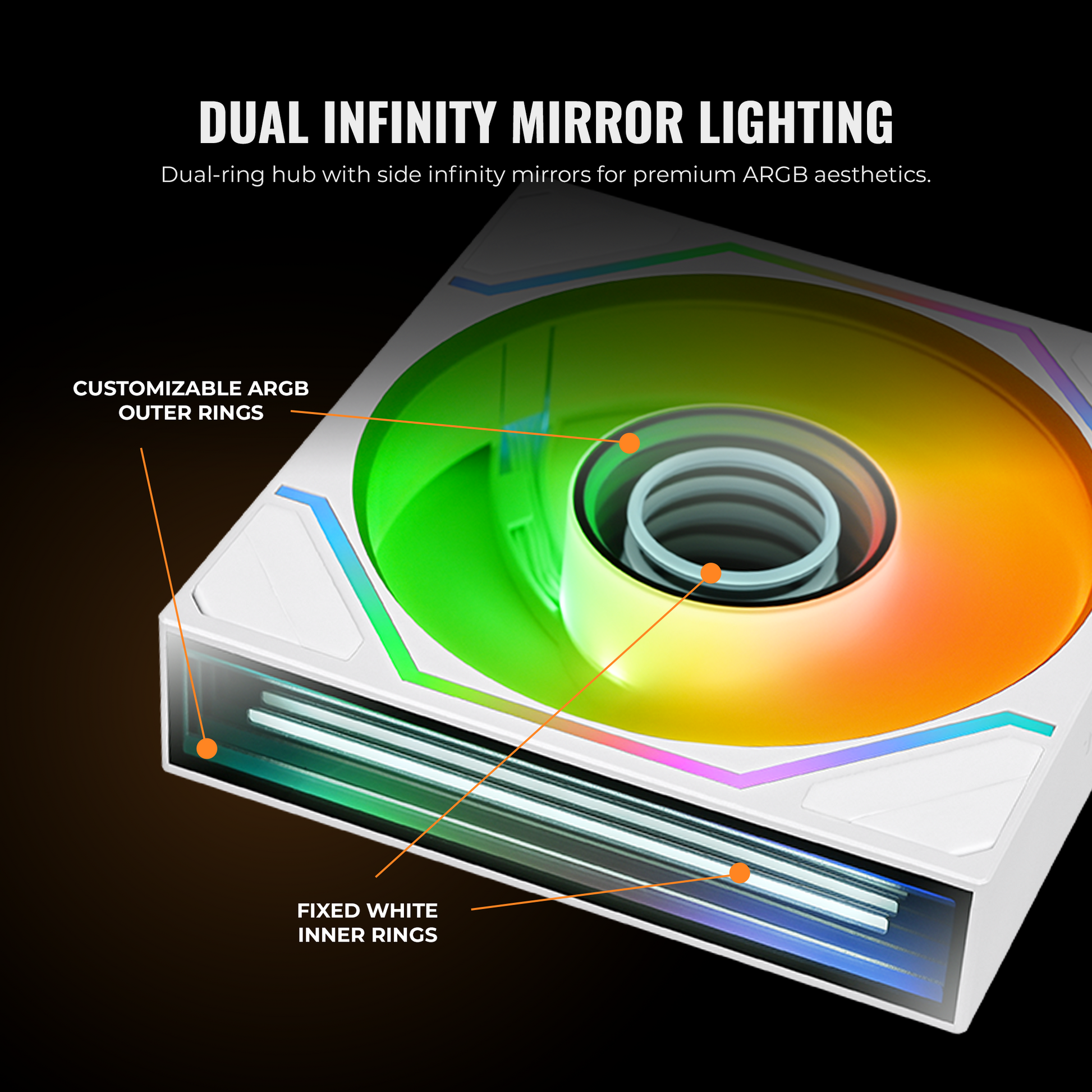

Dual Infinity Mirror Lighting
Dual-ring hub with side infinity mirrors for premium ARGB aesthetics.

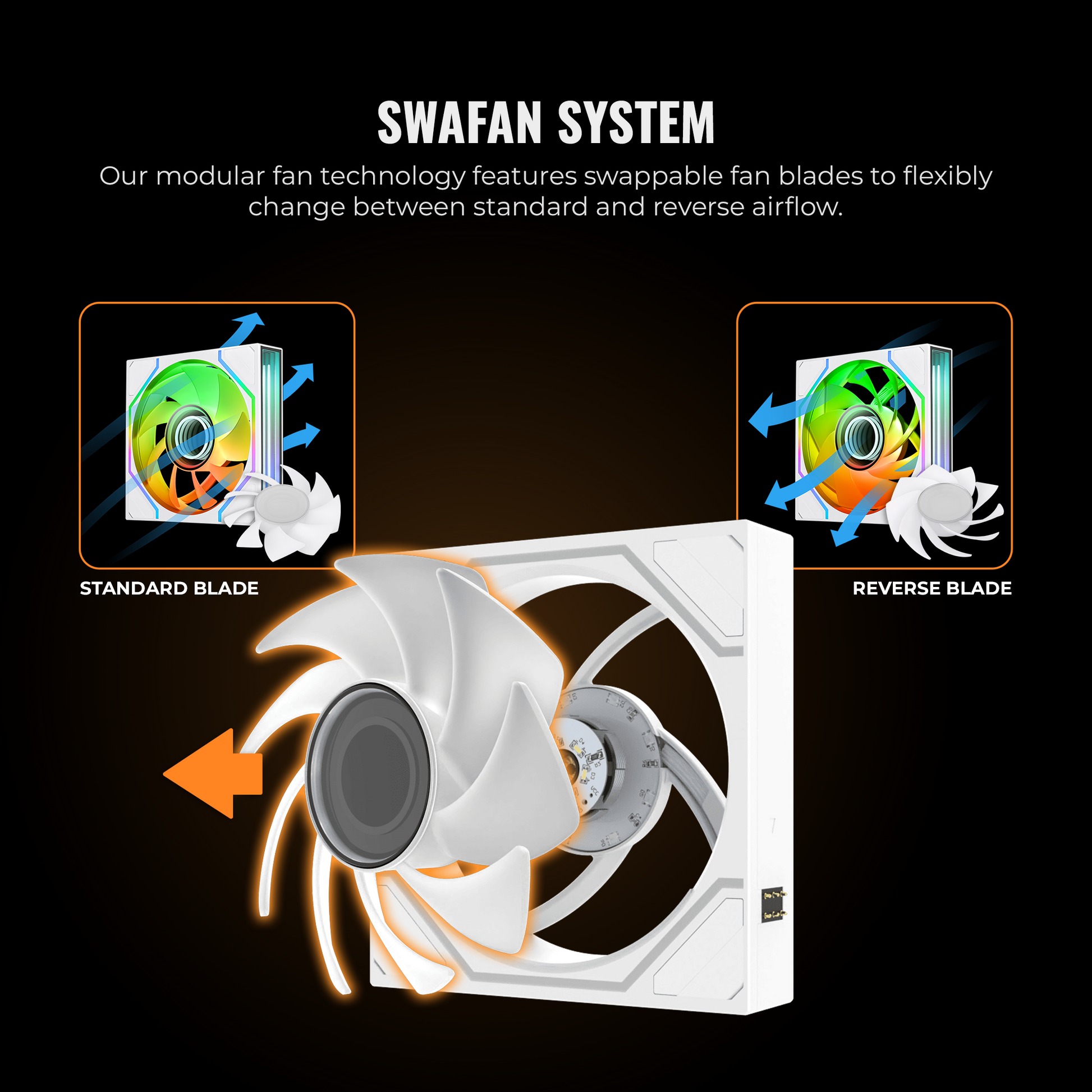

Customize your airflow
Flexible airflow direction for case or radiator setups.
Standard Fan Blades can provide a static pressure of 2.86 mm-H2O (Max) and 58.13 CFM (Max) airflow while maintaining under 30
dB-A noise level and can bring air from the front to the back.
Reverse Fan Blades can provide a static pressure of 2.23 mm-H2O (Max) and 56.15 CFM (Max) airflow while maintaining under 32
dB-A noise level and can bring air from the back to the front.
Air Exhaust
Air Intake

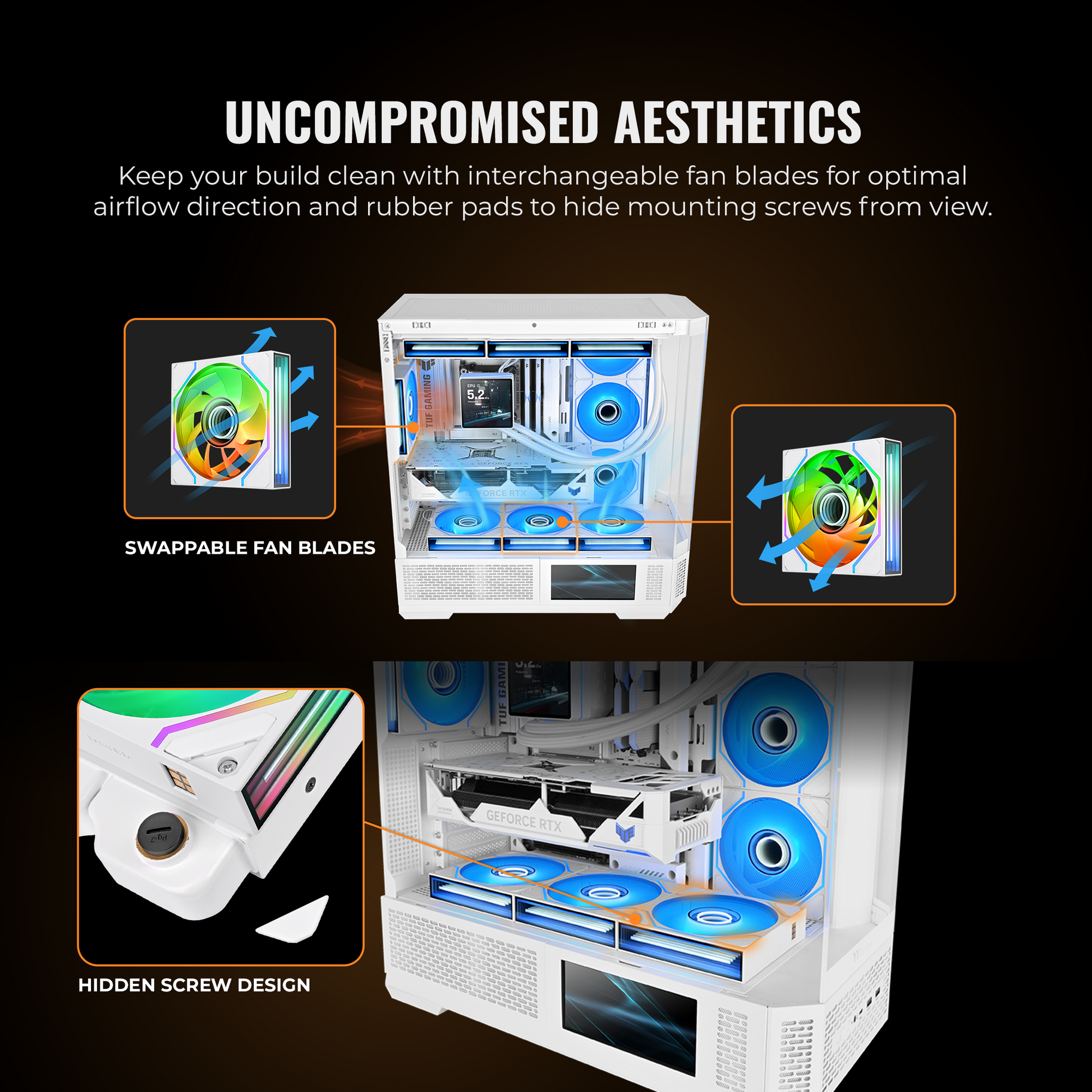

Uncompromised Aesthetics
With swappable standard and reverse airflow fan blades, choose the ideal airflow direction for intake or exhaust while maintaining a clean, uniform look.
Smart Design Features
Hidden Screws
conceals mounting screws for a cleaner look.

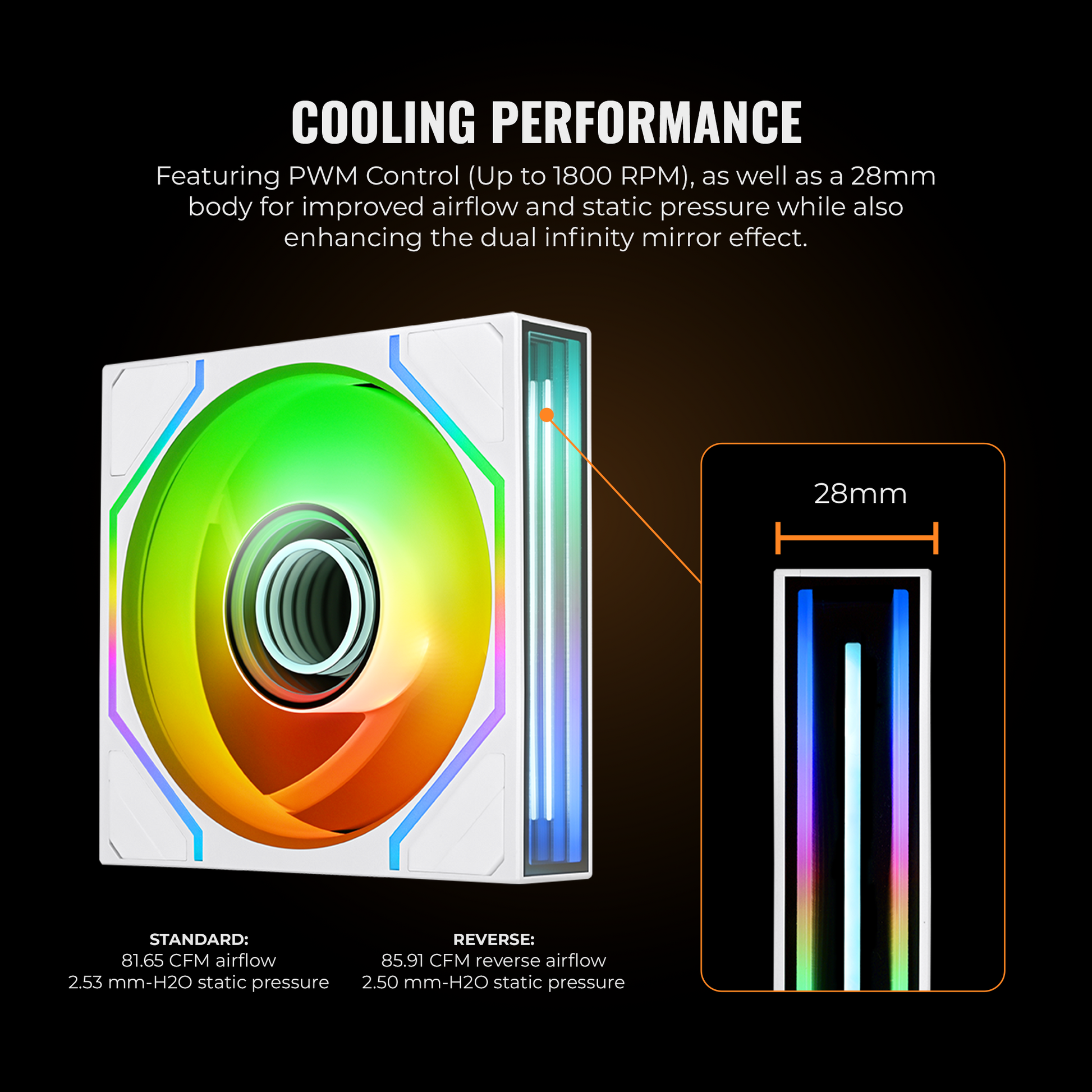

28mm Thickness
improves airflow and static pressure while enhancing the dual infinity mirror effect.
Easy to Clean
allows quick fan blade removal for easy cleaning.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
Product Specifications
| P/N | CL-F254-PL12SW-A |
|---|---|
| Dimension | 124 x 120 x 28 mm |
| Interface | 2510-4 Pin / 5V ARGB header-3 Pin |
| Fan Started Voltage | 6 V |
| Fan Rated Voltage | 12 V &5V |
| Rated Current | 12V: 0.3.A / 5V: 0.8A (one fan) |
| Power Input | 12V: 3.6 W / 5V: 4 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Air Flow | Standard Fan Blade:58.13 CFM (one fan) Reverse Fan Blade:56.15CFM (one fan) |
| Noise | Standard Fan Blade:30 dB-A (one fan) Reverse Fan Blade:32 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs, 25℃ |
| Included Items | Fan x 3, Cable x3, Reverse Fan Blade x 3 |
